Запчасти Case 680L (4-10) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

A186247

STARTING MOTOR

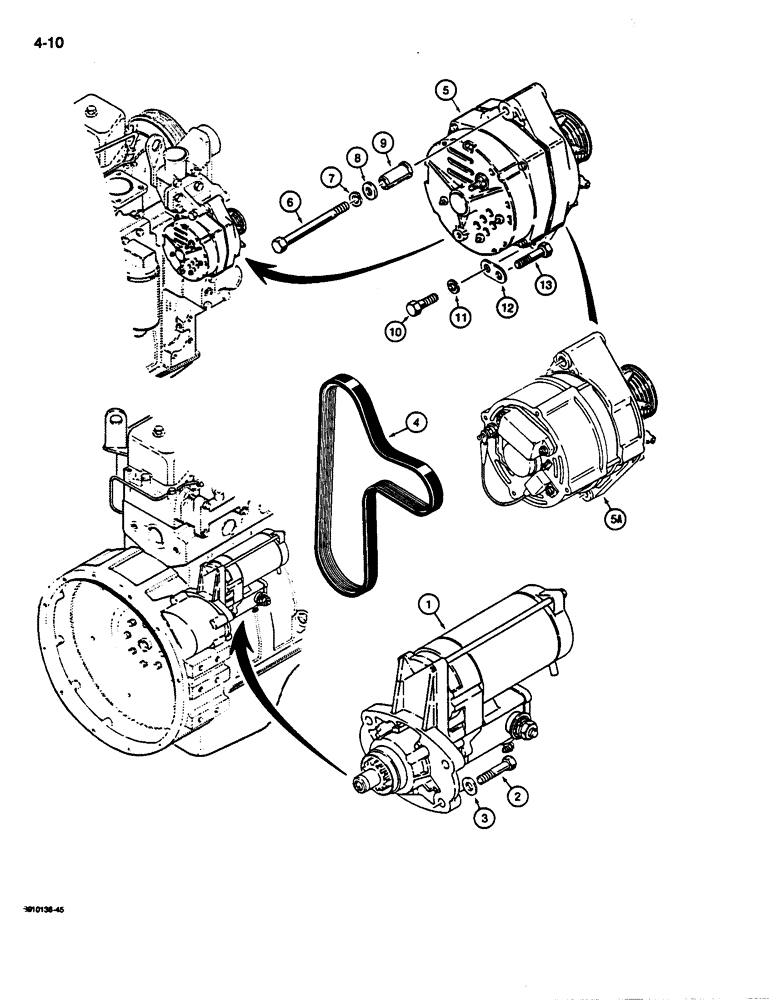

STARTER ASSEMBLY - engine, parts list Figure 4-02

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

BOLT - hex head, 10 mm-1.5 x 40 mm, plated

3шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

WASHER, 13/32" x 13/16" x .089", HDN

3шт.

4

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Drive, Alternator and Fan

1шт.

5

A186125

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 65 ampere, has blade for D+ terminal, parts list Figure 4-04

1шт.

P/N A186125 is no longer available. Order Ref. 5A, A187873 alternator on this figure and A187990 blade terminal, 493-21020 washer, 825-1105 nut, 493-21033 washer, and 825-1108, Ref. 28 - 32, shown on Figure 4-16

1шт.

For alternator mounting bracket see page 2/26.

1шт.

5

AR186125GV

ALTERNATOR

Value

1шт.

5

AR186125

REMAN-ALTERNATOR

Reman For New PN AR186125

1шт.

5

AC186125

CORE-ALTERNATOR

Return Number

1шт.

5a

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY - engine, 65 ampere, has stud for D+ terminal, parts list Figure 4-06

1шт.

For alternator mounting bracket see page 2/26.

1шт.

5a

AR187873

REMAN-ALTERNATOR

Reman For New PN AR186125

1шт.

5a

AC187873

CORE-ALTERNATOR

Return Number

1шт.

5a

A187873GV

ALTERNATOR

Value, 65A, Has stud for D+ terminal

1шт.

6

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

BOLT - hex, 10 mm - 1.5 x 110 mm

1шт.

Ref #6 - 814-10110 bolt - Replace with shorter bolt (part nbr 814-10100).

1шт.

7

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

1шт.

8

195-525

WASHER,3/8", SAE

WASHER - flat, 3/8", plated

1шт.

9

J902469

SPACER

SPACER - alternator

1шт.

10

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - hex head, 8 mm-1.25 x 30 mm, plated

1шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

12

J903089

SUPPORT

BRACE - alternator mounting

1шт.

13

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 20, 8.8

1шт.
