Запчасти Case 680L (4-08) - AIR CONDITIONING, COMPRESSOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

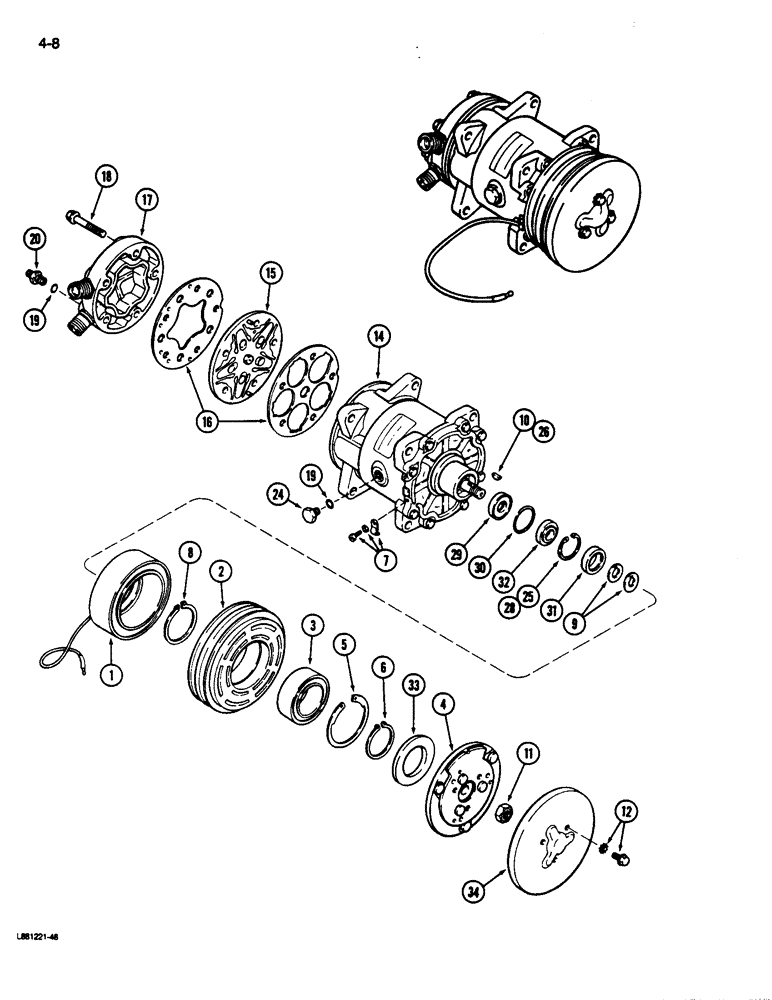

Схема запчастей Case 680L - (4-08) - AIR CONDITIONING, COMPRESSOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

97204C1

COMPRESSOR

ASSEMBLY - air conditioning (Complete)(Sankyo-Sanden), Includes: Ref. 1 - 34

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

83935C1

CLUTCH

ASSEMBLY - compressor, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

COIL ASSEMBLY - field, 12 volt

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY ASSEMBLY - drive, two groove

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - pulley

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - front

1шт.

5

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

A49673

KIT

ACCESSORY KIT - clutch, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

RING - snap, pulley

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP ASSEMBLY - lead wire

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, clutch

1шт.

9

NSS

NOT SOLD SEPARAT

SHIM - clutch

1шт.

10

NSS

NOT SOLD SEPARAT

KEY - clutch drive

1шт.

11

NSS

NOT SOLD SEPARAT

NUT - retainer

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - retainer

1шт.

14

NSS

NOT SOLD SEPARAT

BLOCK ASSEMBLY - compressor

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - valve, Includes: Ref. 16 - 32

1шт.

16

A49668

GASKET KIT

- valve plate

1шт.

17

1958959C1

COVER

HEAD - cylinder (Includes Ref. 16)

1шт.

18

A49669

SCREW,Cylinder

BOLT - hex flanged, head

5шт.

19

A49666

O-RING

- rubber

1шт.

24

A49667

PLUG

- oil filler

1шт.

26

A49671

KEY

- shaft, compressor

1шт.

A49665

SEAL KIT

SEAL KIT - compressor, Includes: Ref. 28 - 31

1шт.

28

A49664

CIRCLIP

RING - snap

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - housing

1шт.

31

NSS

NOT SOLD SEPARAT

RING - felt

1шт.

32

NSS

NOT SOLD SEPARAT

SEAT - seal, shaft

1шт.

33

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

COVER - dust, bearing

1шт.

34

1958961C1

COVER

- dust, clutch

1шт.

Выбрано товаров: 35
