Запчасти Case 680L (2-56) - ENGINE GASKET KITS, 6-590 ENGINE, 6T-590 ENGINE, VALVE GRIND, CYLINDER BLOCK (02) - ENGINE

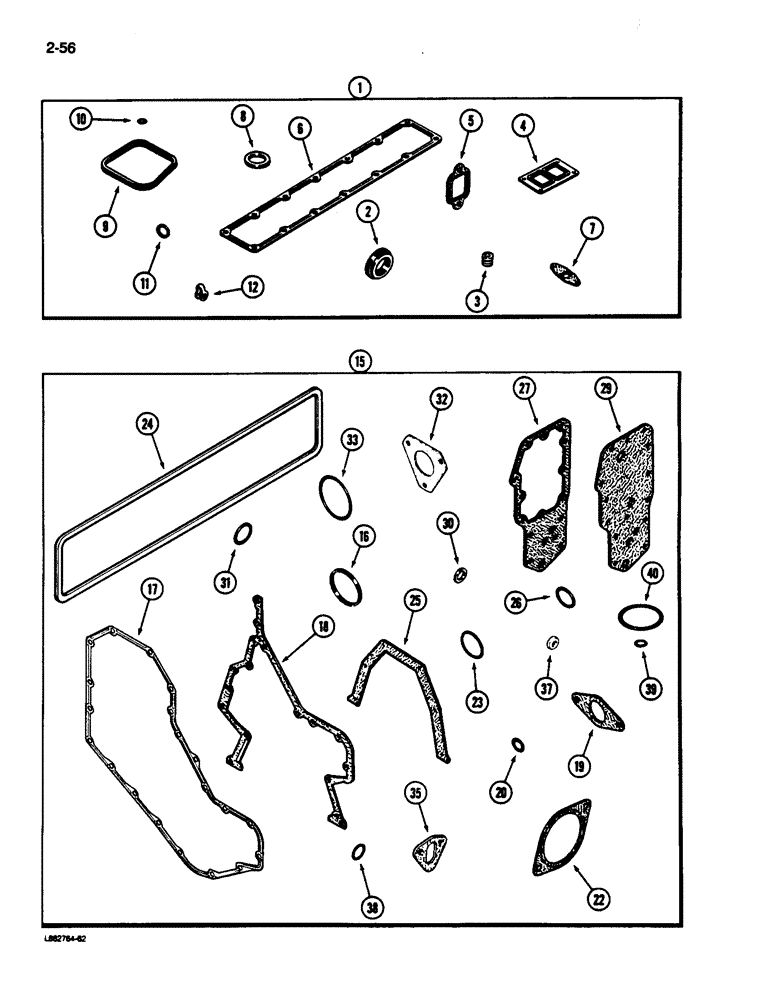

Схема запчастей Case 680L - (2-56) - ENGINE GASKET KITS, 6-590 ENGINE, 6T-590 ENGINE, VALVE GRIND, CYLINDER BLOCK (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A77675

GASKET KIT

- valve grind, Includes: Ref. 2 - 12

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-26.

1шт.

2

J920020

GASKET

- housing, thermostat (Replaces J903301)

1шт.

3

J901097

SEAL

- valve

12шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

6

J914029

GASKET

- intake manifold

1шт.

7

J914388

GASKET

- drain tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

6шт.

9

J902666

GASKET

SEAL - rocker cover

6шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

11

J900808

SEAL

- injector

6шт.

12

J903380

SEAL

- connector

6шт.

15

A77674

GASKET KIT

- engine block, Includes: Ref. 16 - 40

1шт.

For complete engine overhaul, order (1) valve grind kit, (1) cylinder block kit, (1) oil pan kit, Figure 2-54, front and rear crankshaft seal kit, Figure 2-46 and required cylinder head gasket Figure 2-26.

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

17

J914385

GASKET,1.02mm Thk

- front cover

1шт.

18

J916131

GASKET

- gear housing

1шт.

19

J905595

GASKET

- pin housing, timing

1шт.

20

J913994

O-RING

- sealing

1шт.

22

J919601

GASKET

- cover plate

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

24

J907617

GASKET

- tappet cover

1шт.

25

J914386

GASKET

- seal retainer

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

27

J918256

GASKET

- cooler core, oil

1шт.

29

J918257

GASKET

- filter head

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing

1шт.

32

J914389

GASKET

- pump mounting

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.

35

J914304

GASKET

- mounting, pump

1шт.

37

J900267

SEAL

ASSEMBLY - cover bolt

6шт.

38

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

39

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

40

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

Выбрано товаров: 36
