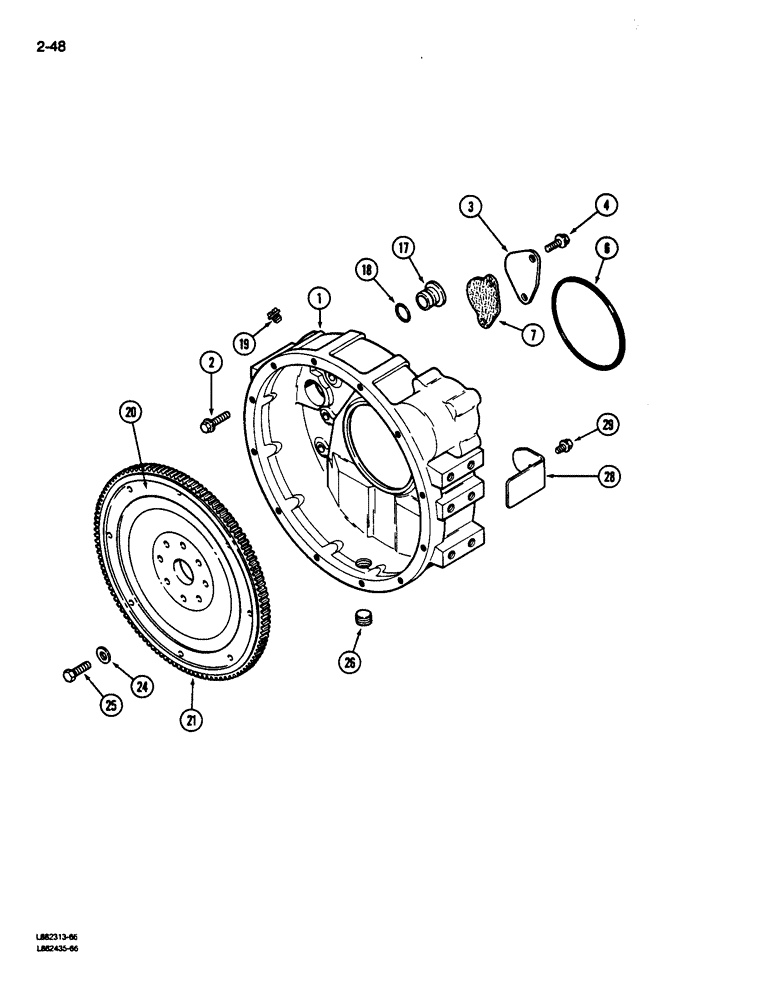

Запчасти Case 680L (2-48) - FLYWHEEL AND HOUSING, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

1

J912740

HOUSING

- flywheel (Natural Aspirated Engine)(Shown)

1шт.

1

J903282

HOUSING

- flywheel (Turbocharged Engine)

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

Housing retaining Hex Flg, M12 x 40, 10.9

8шт.

3

J908095

PLATE

- cover

1шт.

4

J902735

BOLT,M8 - 1.25 x 21 mm

- hex, plate retaining

2шт.

6

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.

7

J908096

GASKET

- cover plate

1шт.

17

J910248

PLUG

- housing

1шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

19

353-225

PLUG,Sltd Hd, 3/4"-16

- hex head, 3/4 inch NF

1шт.

20

J908832

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY - crankshaft (Natural Aspirated Engine)(Shown), Includes: Ref. 21

1шт.

20

J905898

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY - crankshaft (Turbocharged Engine), Includes: Ref. 21

1шт.

21

J905427

GEAR

- ring, flywheel

1шт.

24

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

25

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex head, 12 mm-1.25 x 32 mm

8шт.

26

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - housing drain

1шт.

Ref #26 - 221-1845 drain plug - This plug is no longer a part of flywheel housing assembly (is not required).

1шт.

28

J912755

PLATE

- cover

1шт.

29

J912072

SELF-TAP SCREW

SCREW - self tapping, 8 mm-1.25 x 15 mm

1шт.
