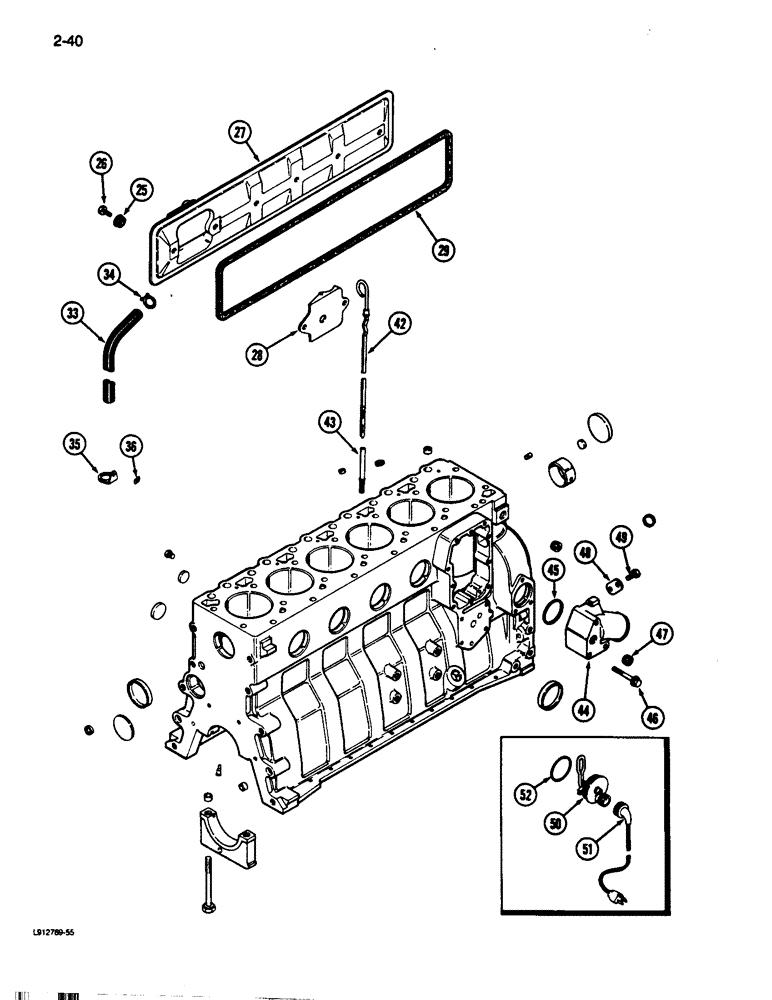

Запчасти Case 680L (2-40) - CYLINDER BLOCK, 6T-590 ENGINE (TURBOCHARGED) (CONTD) (02) - ENGINE

25

J900267

SEAL

ASSEMBLY - cover bolt

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm-1.25 x 16 mm

4шт.

27

J911822

COVER

- tappet

1шт.

28

J907586

BAFFLE

- tappet cover

1шт.

29

J907617

GASKET

- tappet cover

1шт.

33

J906593

HOSE

Breather

1шт.

34

J904230

CLAMP,25.4mm

- spring hose

1шт.

35

J909670

CLIP

- retaining

1шт.

36

J905479

SPRING NUT

- hose clip (If Equipped)

1шт.

42

J905786

DIPSTICK

ASSEMBLY - engine oil

1шт.

43

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick, oil

1шт.

44

J903102

CONNECTION

- water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

46

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- hex flange, 10 mm-1.50 x 75 mm, Grade 10.9

3шт.

47

A77429

PLUG

- hex socket pipe, 1/2-14 PT

1шт.

48

J903089

SUPPORT

BRACE - alternator mounting

1шт.

49

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 20 mm

1шт.

A77634

KIT

HEATER KIT - engine block, Includes: Ref. 50 - 52

1шт.

50

NSS

NOT SOLD SEPARAT

HEATER - engine block

1шт.

51

J905113

CABLE

- engine block heater

1шт.

52

J910517

O-RING

- heater sealing

1шт.
