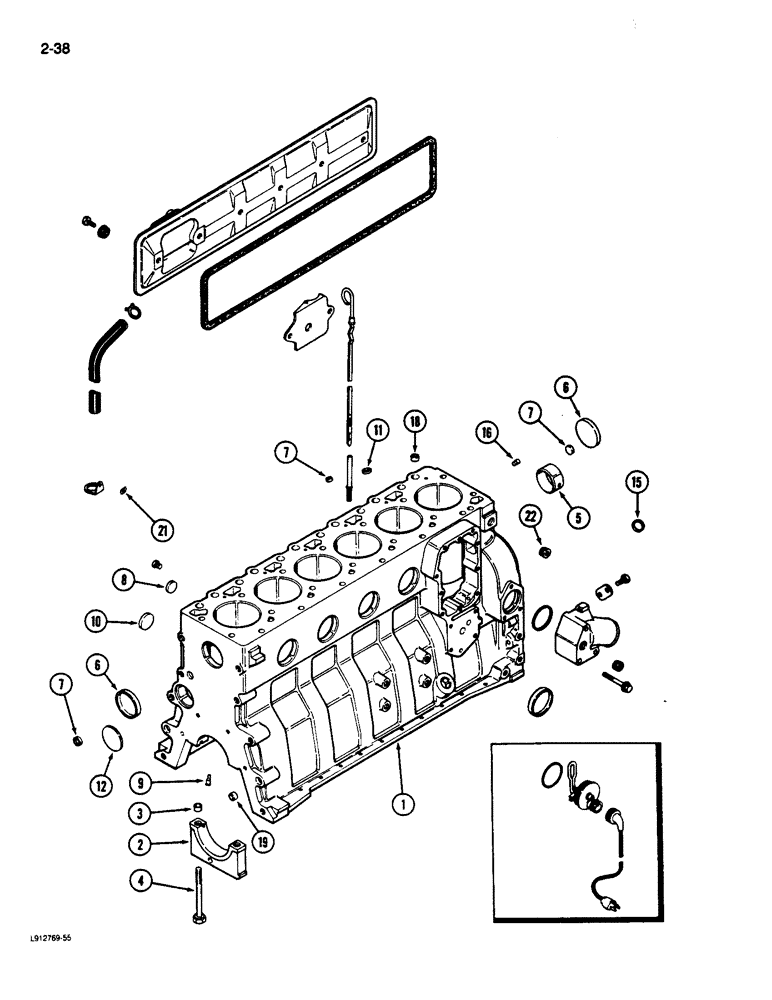

Запчасти Case 680L (2-38) - CYLINDER BLOCK, 6T-590 ENGINE (TURBOCHARGED) (02) - ENGINE

1989089C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

1989096C2

BASIC ENGINE

ENGINE ASSEMBLY - basic

1шт.

P/N 1989096C2 includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold and pipe, flywheel and housing, oil fill tube, dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner and turbocharger

1шт.

1989096C2R

ENGINE, EXCHANGE

ENGINE (EXCHANGE) Remanufactured, For N.A. Only

1шт.

1989096C2C

CORE-ENGINE

RETURN NUMBER - use this part number to return basic engine core for credit

1шт.

AR77762

ENGINE

BLOCK ASSEMBLY - engine short, remanufactured For North America only

1шт.

AC77762

CORE-ENGINE

RETURN NUMBER - engine short block (Use this part number to return block core for credit)

1шт.

A77762

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New)(Includes stripped block pistons, connecting rods and bearings, crankshaft and bearings) (Order block and J920399 kit)

1шт.

J933183

SKELETON ENGINE

Engine Short Block - Tier 0

1шт.

JR933183

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

JC933183

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

1

A77760

CRANKCASE

BLOCK ASSEMBLY - stripped engine, Includes: Ref. 2 - 8 (Order block and J920399 kit)

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front (See Figure 2-42)

1шт.

6

J900965

PLUG

PLUG - expansion, 58 mm OD

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

A77539

PLUG

PLUG - expansion, 26 mm

4шт.

J802641

PACKAGE, REPAIR

KIT - block hardware, Includes: Ref. 9 - 22

1шт.

9

J919002

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

J900687

PLUG

PLUG - expansion, (Welch) 60 mm OD

1шт.

15

A77439

PLUG

PLUG - expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 PT

2шт.

22

A77429

PLUG

PLUG - hex socket pipe, 1/2-14 PT

1шт.
