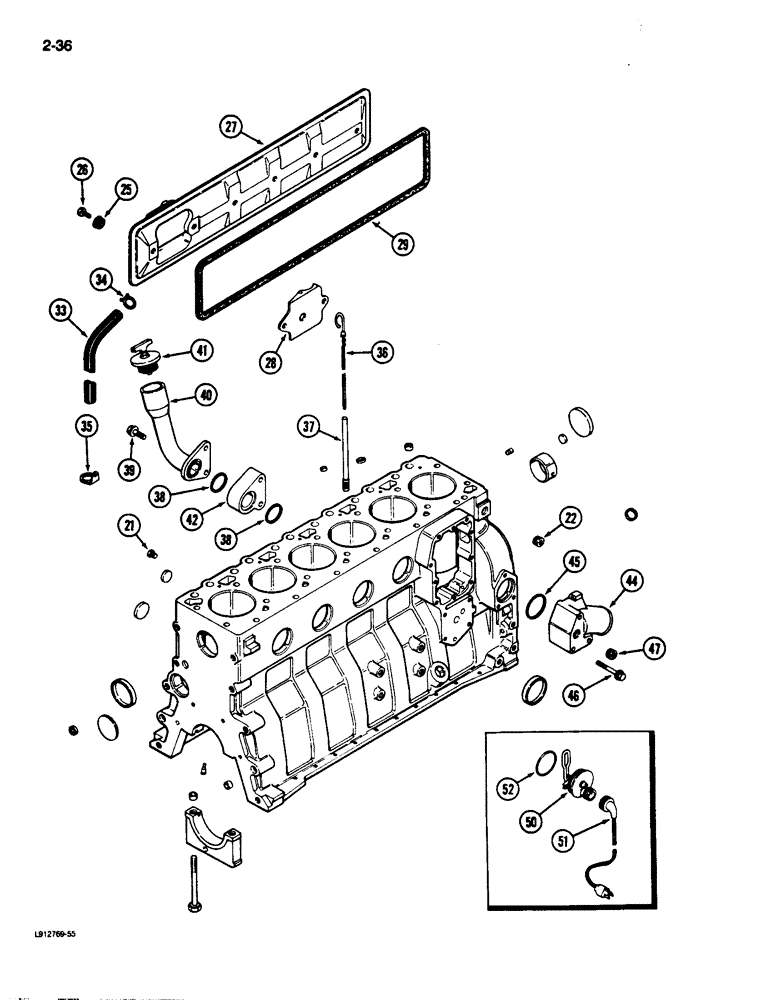

Запчасти Case 680L (2-36) - CYLINDER BLOCK, 6-590 ENGINE (NATURAL ASPIRATED), ENGINE S/N 44511034 AND AFTER (CONTD) (02) - ENGINE

21

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

2шт.

22

A77429

PLUG

- hex socket pipe, 1/2-14 PT

1шт.

25

J900267

SEAL

ASSEMBLY - cover bolt

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm-1.25 x 16 mm

4шт.

27

J911822

COVER

- tappet

1шт.

28

J907586

BAFFLE

- tappet cover

1шт.

29

J907617

GASKET

- tappet cover

1шт.

33

J906593

HOSE

Breather

1шт.

34

J904230

CLAMP,25.4mm

- spring hose

1шт.

35

J909670

CLIP

- retaining

1шт.

36

J907714

DIPSTICK

- engine oil

1шт.

37

J905127

TUBE,9.52 mm OD x 180 mm L

- dipstick

1шт.

38

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing

2шт.

39

854-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

- flanged hex, 12 - 1.75 x 60 mm, class 10.9

2шт.

40

J905440

TUBE

- oil fill

1шт.

41

A77424

FILLER CAP

CAP - oil fill tube

1шт.

42

J904693

SPACER

- oil filler tube connector

1шт.

44

J903102

CONNECTION

- water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

46

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT - hex flange head, 10 mm-1.50 x 75 mm

3шт.

47

A77429

PLUG

- hex socket pipe, 1/2-14 PT

1шт.

A77634

KIT

HEATER KIT - engine block, Includes: Ref. 50 - 52

1шт.

50

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77634)

1шт.

51

J905113

CABLE

- engine block heater

1шт.

52

J910517

O-RING

- heater sealing

1шт.
