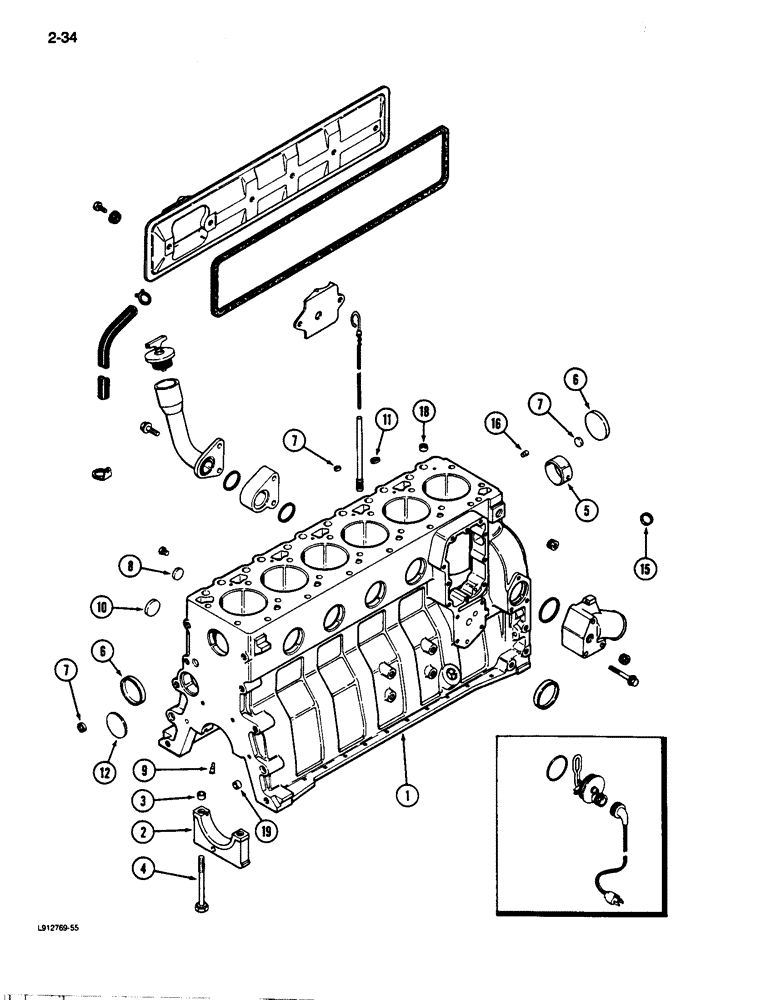

Запчасти Case 680L (2-34) - CYLINDER BLOCK, 6-590 ENGINE (NATURAL ASPIRATED), ENGINE S/N 44511034 AND AFTER (02) - ENGINE

1989087C2

ENGINE ASSEMBLY

- complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

1989095C2

BASIC ENGINE

ENGINE ASSEMBLY - basic

1шт.

P/N 1989095C2 includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold and pipe, flywheel and housing, oil fill tube, dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner and turbocharger

1шт.

1989095C2R

ENGINE, EXCHANGE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

1989095C2C

CORE-ENGINE

Return Number - use this part number to return basic engine core for credit

1шт.

A77761

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New)(Includes stripped block pistons, connecting rods and bearings, crankshaft and bearings) (Order block and J920399 kit)

1шт.

AR77761

SKELETON ENGINE

Block Assembly - engine short, remanufactured

1шт.

AC77761

CORE-ENGINE

Return Number - engine short block (Use this part number to return block core for credit)

1шт.

1

A77760

CRANKCASE

BLOCK ASSEMBLY - stripped engine, Includes: Ref. 2 - 8 (Order block and J920399 kit)

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

- bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front (See Figure 2-42)

1шт.

6

J900965

PLUG

- expansion, 58 mm OD

6шт.

7

J900956

PLUG

- expansion, 18 mm OD

3шт.

8

A77539

PLUG

- expansion, 26 mm

4шт.

J802641

PACKAGE, REPAIR

KIT - block hardware, Includes: Ref. 9 - 19 on this figure and Ref. 21 and 22 on Figure 2-36

1шт.

9

J919002

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

- expansion, 32 mm OD

1шт.

11

J900955

PLUG

- expansion, 10 mm OD

2шт.

12

J900687

PLUG

- expansion, (Welch) 60 mm OD

1шт.

15

A77439

PLUG

- expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.
