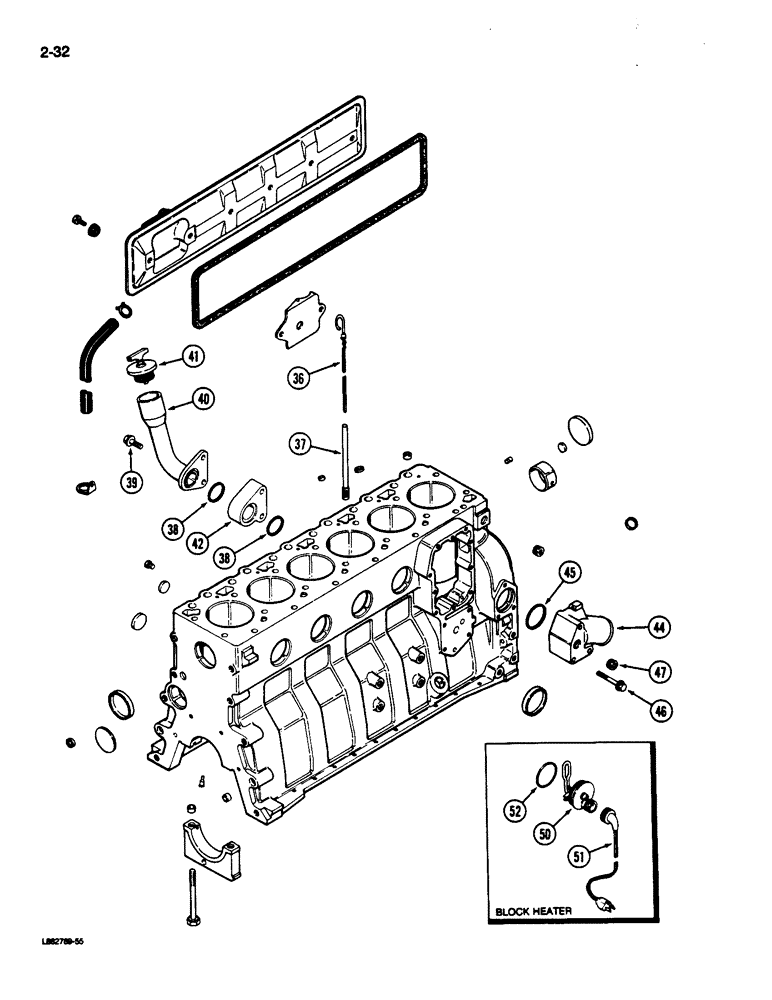

Запчасти Case 680L (2-32) - CYLINDER BLOCK, 6-590 ENGINE, PRIOR TO ENGINE SERIAL NUMBER 44511034 (CONTD) (02) - ENGINE

36

J907714

DIPSTICK

- engine oil

1шт.

37

J905127

TUBE,9.52 mm OD x 180 mm L

- dipstick

1шт.

38

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing

2шт.

39

J905372

FLANGE BOLT,Hex, M12 x 60mm, Cl 10.9

BOLT - flanged hex, 12 mm-1.75 x 60 mm

2шт.

40

J905440

TUBE

- oil fill

1шт.

41

A77424

FILLER CAP

CAP - oil fill tube

1шт.

42

J904693

SPACER

- oil filler tube connector

1шт.

44

J903102

CONNECTION

- water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

46

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT - hex flange head, 10 mm-1.50 x 75 mm

3шт.

47

A77429

PLUG

- hex socket pipe, 1/2-14 PT

1шт.

A77634

KIT

HEATER KIT - engine block, Includes: Ref. 50 - 52

1шт.

50

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77634)

1шт.

51

J905113

CABLE

- engine block heater

1шт.

52

J910517

O-RING

- heater sealing

1шт.
