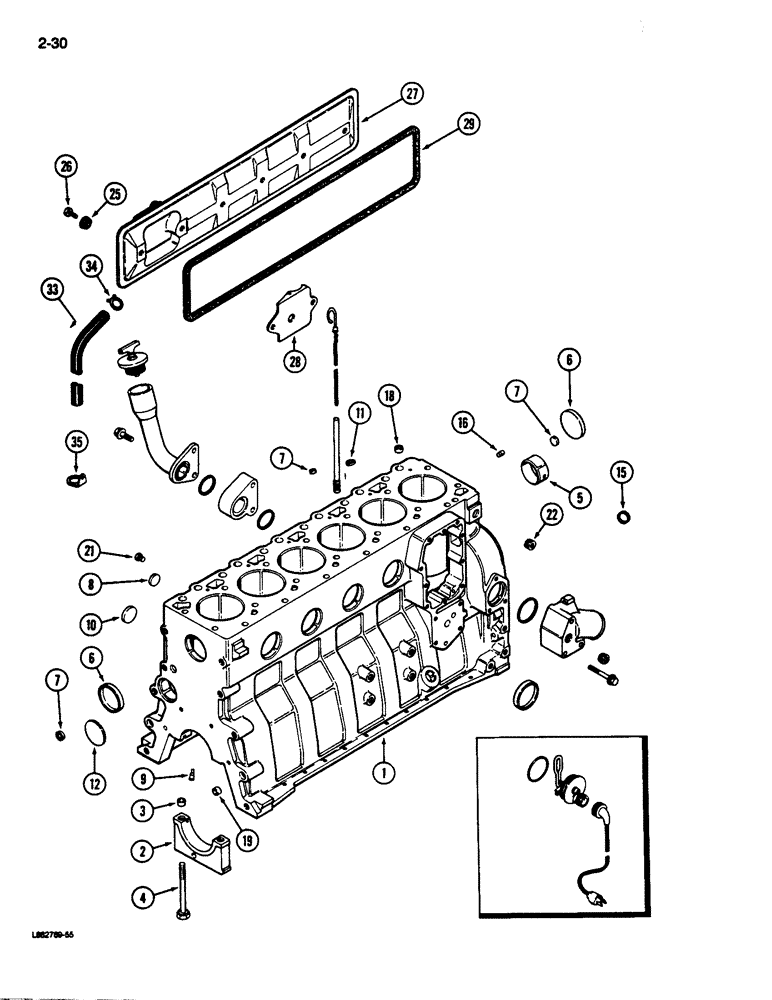

Запчасти Case 680L (2-30) - CYLINDER BLOCK, 6-590 ENGINE, PRIOR TO ENGINE SERIAL NUMBER 44511034 (02) - ENGINE

A174261

ENGINE ASSEMBLY

- complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

J905811

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New)(Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Order block and J905813 kit)

1шт.

JR905811

ENGINE, EXCHANGE

Block Assembly, Engine Short, Remanufactured

1шт.

JC905811

CORE-ENGINE

Return Part Number, Engine Short Block (Use This Part Number To Return Block Core For Credit)

1шт.

JR933182

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933182

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J905810

CRANKCASE

BLOCK ASSEMBLY - stripped engine, Includes: Ref. 2 - 8 (Order block and J905813 kit)

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

- bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front (See Figure 2-42)

1шт.

6

J900965

PLUG

- expansion, 58 mm OD

6шт.

7

J900956

PLUG

- expansion, 18 mm OD

3шт.

8

A77539

PLUG

- expansion, 26 mm

4шт.

J905813

PACKAGE, REPAIR

KIT - block hardware, Includes: Ref. 9 - 22

1шт.

9

J901020

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

- expansion, 32 mm OD

1шт.

11

J900955

PLUG

- expansion, 10 mm OD

2шт.

12

J900687

PLUG

- expansion, (Welch) 60 mm OD

1шт.

15

A77439

PLUG

- expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

2шт.

22

A77429

PLUG

- hex socket pipe, 1/2-14 PT

1шт.

25

J900267

SEAL

ASSEMBLY - cover bolt

4шт.

26

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

4шт.

27

J911822

COVER

- tappet

1шт.

28

J907586

BAFFLE

- tappet cover

1шт.

29

J904776

GASKET

- tappet cover

1шт.

33

J906593

HOSE

Breather

1шт.

34

J904230

CLAMP,25.4mm

- spring hose

1шт.

35

J909670

CLIP

- retaining

1шт.
