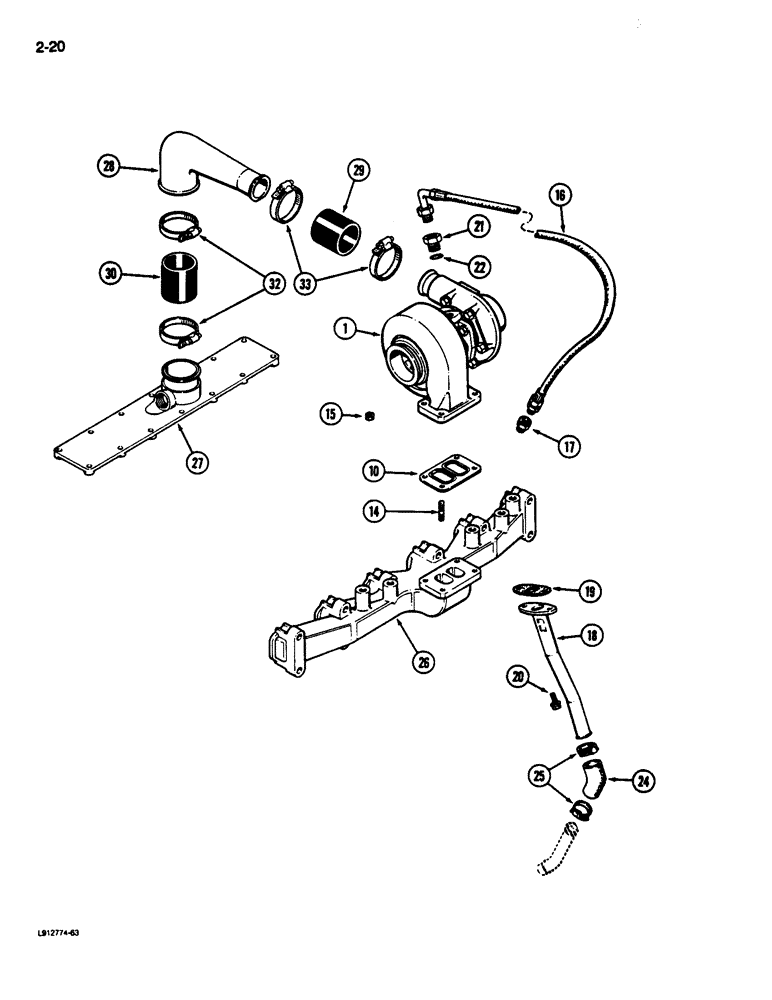

Запчасти Case 680L (2-20) - TURBOCHARGER SYSTEM, 6T-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See Figure 2-22)

1шт.

10

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

14

J905417

STUD

- turbocharger mounting

4шт.

15

J901961

NUT

- hex, turbocharger mounting

4шт.

16

J909547

HOSE,457.00 mm

Oil Supply, Turbocharger 457.00 mm

1шт.

17

A77457

FITTING

CONNECTOR - supply hose

1шт.

18

J918583

TUBE

- oil drain

1шт.

19

J914388

GASKET

- drain tube

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 - 1.25 x 20 mm

2шт.

21

J916857

CONNECTOR, ELEC

CONNECTOR - supply hose, Includes: Ref. 22

1шт.

22

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

24

J903745

LARGE HOSE

HOSE - turbocharger oil drain

1шт.

25

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- turbocharger drain hose #16, 0.81/1.50 Type F Worm

2шт.

26

REF

INSTRUCTION

MANIFOLD - exhaust (See Figure 2-24)

1шт.

27

REF

INSTRUCTION

COVER - intake manifold (See Figure 2-24)

1шт.

28

J906972

AIR INTAKE TUBE,53.8 - 66.5 mm OD x 198.1, 79.6 mm L

TUBE - air intake

1шт.

29

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube

1шт.

30

J916166

INTAKE AIR HOSE

HOSE - air intake

1шт.

32

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

2шт.

33

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.
