Артикул
Название
Примечание
Количество
D103188
DECAL

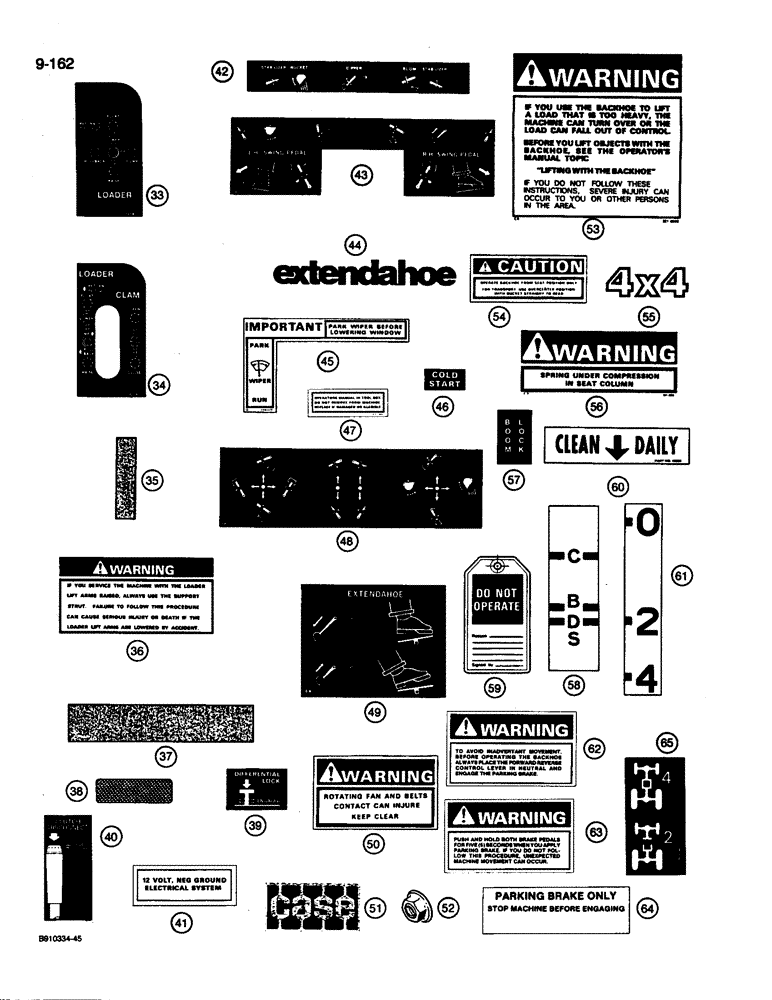

KIT - decal, 680L, Includes: Ref. 33 - 64 on this figure, parts on Figure 9-160, and model number decal for the 780D that is not used on this model
1шт.
33
321-6211
DECAL
- loader control pattern, two spool
1шт.
34
321-6212
DECAL
- loader control pattern, three spool
1шт.
35
D55216
PAD,2" x 9"
STRIP - anti-skid, steps, canopy models
1шт.
36
321-6671
DECAL
- Warning, right-hand loader lift arm support strut usage
1шт.
37
D80270
ANTI-SKID STRIP,635mm / 25 Inch
STRIP, ANTI-SKID, Operators compartment, side, canopy models
2шт.
38
D87870
DECAL
- reflector, red, rear
2шт.
39
321-1646
DECAL
- differential lock
1шт.
40
321-5797
DECAL
- clutch disconnect
1шт.
41
321-5831
DECAL
- 12 volt, negative ground electrical system
4шт.
42
D123941
DECAL
- extendahoe control pattern, upper
1шт.
43
D123940
DECAL
- extendahoe control pattern, lower
1шт.
44
D123945
DECAL
- extendahoe
2шт.
45
F45339
DECAL
- Important, park wiper before lowering window
1шт.
46
L111358
DECAL
- Cold Start
1шт.
47
321-6452
DECAL
- operator manual location, tool box
1шт.
48
D123978
DECAL
- backhoe control pattern, two lever
1шт.
49
D123948
DECAL
- Extendahoe, pedal control pattern
1шт.
50
321-3596
DECAL
- Warning, rotating fan and belts
2шт.
51
321-4739
EMBLEM
- Case, on grille
1шт.
52
131-431
PUSH-ON NUT,Self, Threading, 1/4"
NUT - push, attaches emblem to grille
2шт.
53
321-6046
WARNING DECAL
DECAL, WARNING, Backhoe load lifting
1шт.
54
321-3056
DECAL
- Caution, transport
3шт.
55
D124183
DECAL
- 4x4, four-wheel drive models
2шт.
56
321-6774
WARNING DECAL
DECAL, WARNING, Spring under compression in seat column
1шт.
57
L111356
DECAL
- Boom Lock
1шт.
58
D139863
DECAL
- clam bucket indicator
1шт.
59
321-4614
TAG
- Do not operate
1шт.
60
S45226
DECAL
- Clean Daily, clam bucket
1шт.
61
S81109
DECAL
- clam indicator
1шт.
62
321-6959
DECAL
- Warning, to avoid inadvertant movement
1шт.
63
321-6961
DECAL
- Warning, push and hold both brake pedals for five (5) seconds
1шт.
64
D144026
DECAL
- Parking Brake Only
1шт.
65
D147279
DECAL
- axle connect and disconnect, four wheel-drive models, purchase separately, not included in D103188 kit
1шт.
Ref #65 - D147279 decal - This was released as part of D103188 kit on 9/13/91. Kits in stock as of Sept 91 will not have this decal as part of kit.
1шт.
Выбрано товаров: 35
