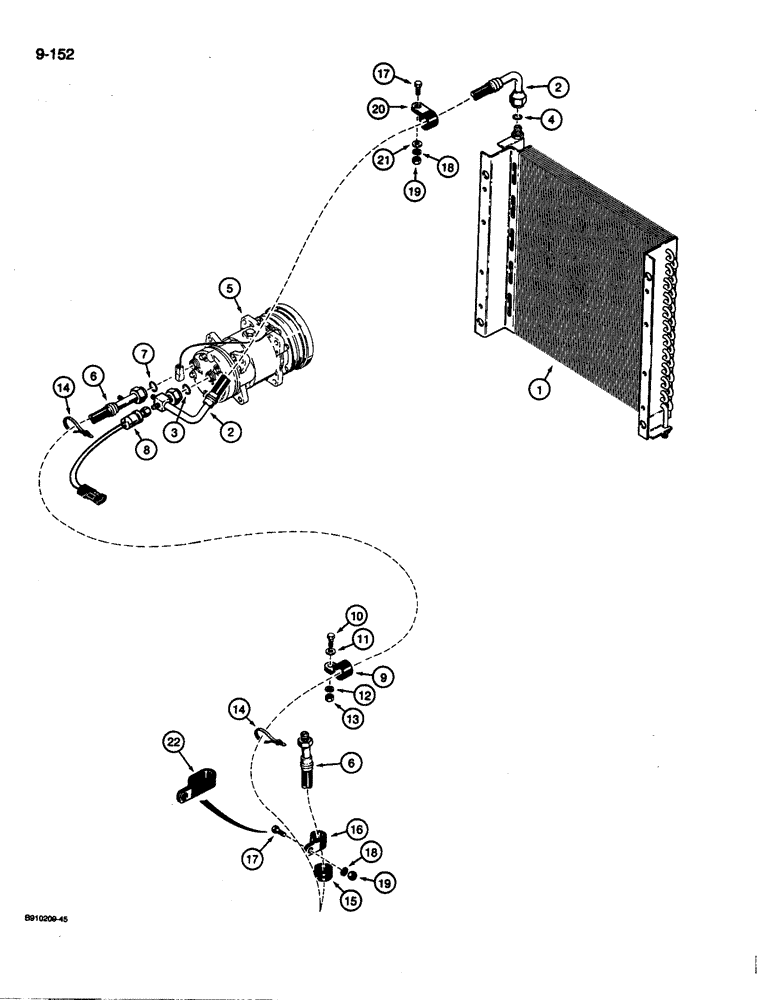

Запчасти Case 680L (9-152) - AIR CONDITIONING RETURN LINES, CAB TO COMPRESSOR AND CONDENSER (09) - CHASSIS/ATTACHMENTS

1

A189297

CONDENSER

- refrigerant cooler, uses existing radiator mounting hardware

1шт.

2

1340231C1

HOSE

- 722 mm long, compressor to condenser, Includes: Ref. 3 and 4

1шт.

3

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch, Class 5

1шт.

4

375271R1

O-RING,0.426" ID x 0.07" Width

- 7/16 x 9/16 inch, Class 5

1шт.

5

97204C1

COMPRESSOR

ASSEMBLY - air conditioning, parts list Figure 4-08, see Figure 4-12 for mounting parts

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

5

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

5

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

6

1340230C1

HOSE

- 2950 mm long, compressor to cab base, with pressure test port, Includes: Ref. 7

1шт.

7

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch, Class 5

1шт.

8

92038C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure cutout, attaches to main engine harness

1шт.

9

A141013

CLAMP,1 1/8", Insul, 3/8" Bolt

- hose, at accelereator cable mounting plate

1шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

11

495-21038

WASHER,5/16"

1шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon heater hoses

1шт.

15

D132291

GROMMET

- hose, in floor plate

1шт.

16

49885

CLAMP

- hose

1шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

49855

CLAMP

- hose, if used, replaced by item 22, D39696 clamp shown below

1шт.

21

495-21044

WASHER,3/8"

1шт.

22

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- double, compressor and receiver-drier hoses

1шт.
