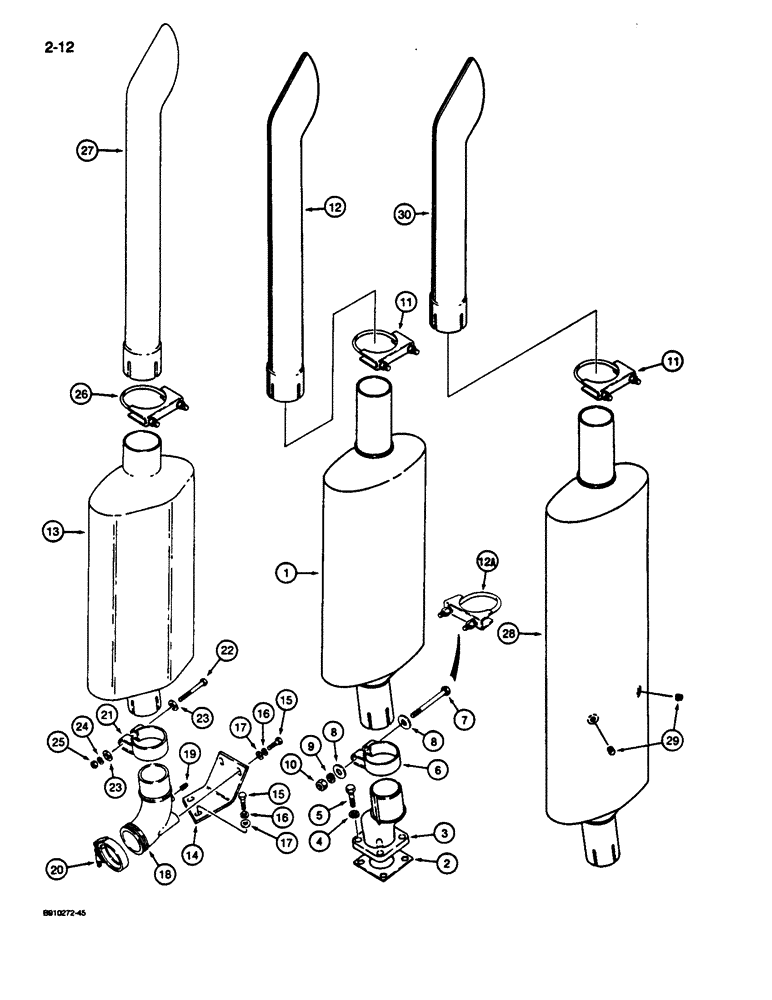

Запчасти Case 680L (2-12) - MUFFLER AND EXHAUST SYSTEM - NATURALLY ASPIRATED ENGINE, TURBOCHARGED ENGINE (02) - ENGINE

1

A171542

MUFFLER

- engine exhaust, naturally aspirated engine

1шт.

2

J912220

GASKET,0.4mm Thk

- steel, manifold to adapter, naturally aspirated engine

1шт.

3

A171507

ADAPTER

- muffler, naturally aspirated engine

1шт.

4

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, naturally aspirated engine

4шт.

5

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 25 mm (8.8), Naturally aspirated engine

4шт.

6

R27691

CLAMP

- muffler, naturally aspirated engine

1шт.

7

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch, naturally aspirated engine

1шт.

8

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, naturally aspirated engine

2шт.

9

492-11038

LOCK WASHER,3/8"

naturally aspirated engine 3/8"

1шт.

10

425-106

NUT,3/8"-16, Cl 5

Naturally aspirated engine 3/8"-16, G5

1шт.

11

L100055

CLAMP

- exhaust pipe, includes hardware, naturally aspirated engine

1шт.

12

L111575

PIPE

- exhaust, muffler, 31-1/2 inch long, naturally aspirated engine

1шт.

12a

A189265

CLAMP,80.5mm ID

- muffler, no longer used, order items 6 - 10, naturally aspirated engine

1шт.

13

A171543

MUFFLER

- engine exhaust, turbocharged engine

1шт.

14

A171823

BRACKET

- elbow support, turbocharged engine

1шт.

15

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 25 mm (8.8), Turbocharged engine

4шт.

16

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, turbocharged engine

4шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8 inch, turbocharged engine

4шт.

18

A173623

ELBOW

- muffler adapter, turbocharged engine

1шт.

19

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4 inch NPT, turbocharged engine

1шт.

20

A170467

CLAMP,72mm ID

- T-bolt, turbocharged engine

1шт.

21

R27691

CLAMP

- muffler, turbocharged engine

1шт.

22

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch, turbocharged engine

1шт.

23

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, turbocharged engine

2шт.

24

492-11038

LOCK WASHER,3/8"

turbocharged engine 3/8"

1шт.

25

425-106

NUT,3/8"-16, Cl 5

Turbocharged engine 3/8"-16, G5

1шт.

26

L100055

CLAMP

- exhaust pipe, includes hardware, turbocharged engine

1шт.

27

L111575

PIPE

- exhaust, muffler, 31-1/2 inch long, turbocharged engine

1шт.

28

A171107

MUFFLER

- spark arrester, use with Ref. 2 - 10 shown above, Includes: Ref. 29

1шт.

29

217-77

PLUG

- square head, 3/8 inch NPT, brass

2шт.

30

D127532

PIPE

- exhaust, spark arrester muffler, 25-1/2 inch long

1шт.
