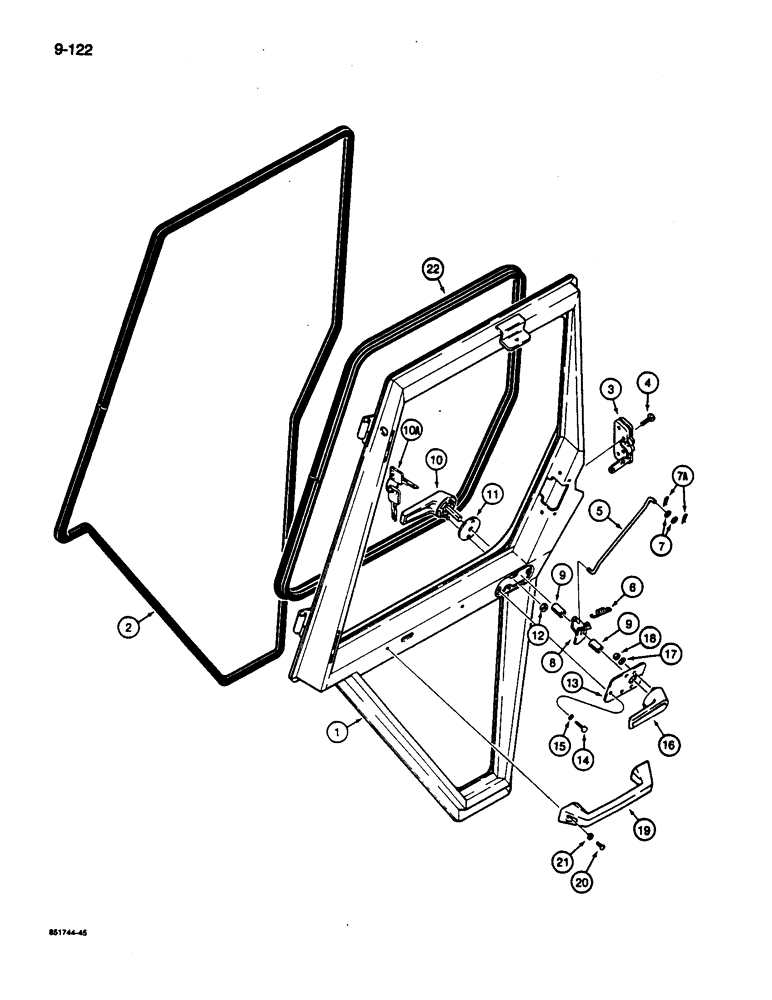

Запчасти Case 680L (9-122) - CAB DOOR (09) - CHASSIS/ATTACHMENTS

1

F96829

FUNNEL

FRAME - door

1шт.

2

1343983C1

DOOR SEAL

- door frame, rubber bulb-type, uses no clip retainers, replaces R52693 seal

1шт.

3

R55002

LATCH

- door striker

1шт.

4

F45337

SCREW,1/4" - 20 x 1", Gr 5

- special, Phillips head, 1/4"-20 NC x 1", plated

4шт.

5

F44746

ROD

- door latch release

1шт.

6

F45162

SPRING

- door latch

1шт.

7

F64384

WASHER

- door latch release rod

4шт.

7a

136-155

COTTER PIN,Int, 7/64" x .051"

PIN - hair, 3/4" long, plated, door latch release rod

4шт.

8

F93688

ARM

- linkage, door latch release

1шт.

9

F44749

TUBE SPACER,11.13mm ID x 19mm OD x 33mm L

SPACER - door handles

2шт.

10

F66157

HANDLE

- door, outer

1шт.

10a

A77313

SET OF 2 KEYS

KEYS - set of two, same as ignition key

1шт.

11

F64342

GASKET,1.6mm Thk

- outer door handle

1шт.

12

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

13

F96718

BRACKET

PLATE - mounting, outer door handle

1шт.

14

F45307

SCREW

- special, smooth head, self-tapping, requires special tools for installation

3шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

16

F45258

HANDLE

- door, inner

1шт.

17

195-513

WASHER,#10

- flat, No. 10, plated

2шт.

18

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

19

F64547

HANDLE

BRACKET - door pull, inner

1шт.

20

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips, 1/4 NC x 3/4 inch

2шт.

21

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

22

REF

INSTRUCTION

SEAL - left-hand window frame, cut to length from F43086

1шт.

F43086

SEAL

- bulk roll, 100 ft (3048 cm) long

1шт.
