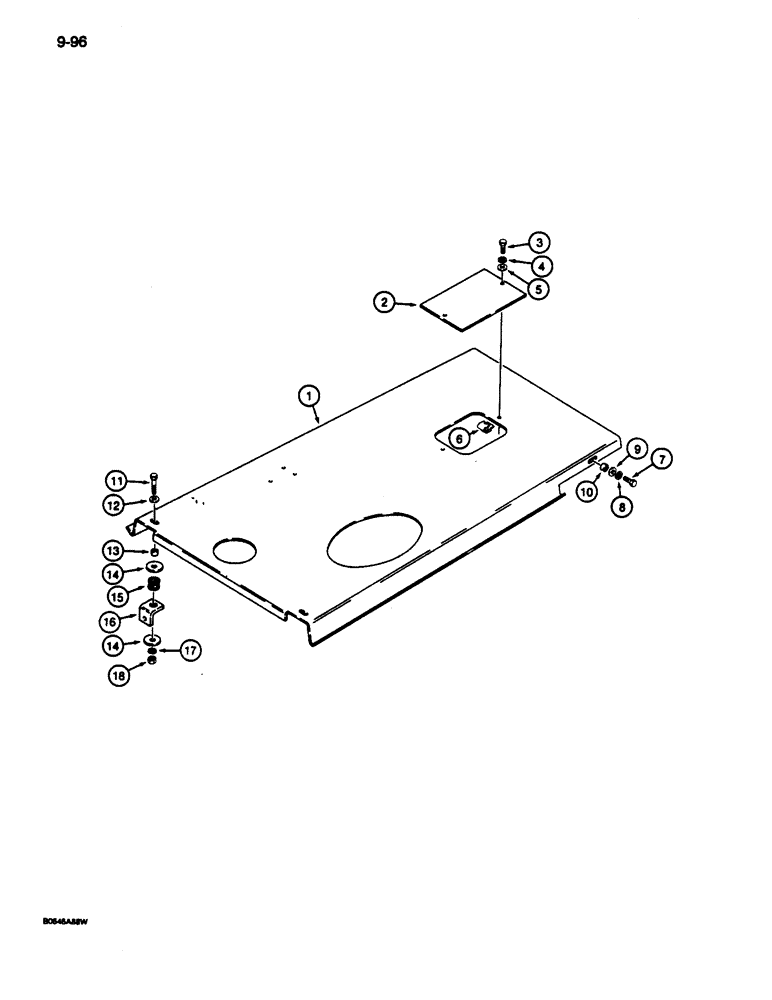

Запчасти Case 680L (9-096) - HOOD (09) - CHASSIS/ATTACHMENTS

1

D140838

HOOD

- engine

1шт.

2

L111744

SHEET

DOOR - access, radiator fill

1шт.

3

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

6

131-637

SPRING NUT,Ret, J, 5/16"-18

- J-type, 5/16"-18 NC

2шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

10

D34242

SPACER

- hood to side panel

2шт.

11

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

12

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened, plated

2шт.

13

D35217

BUSHING

SPACER - hood

2шт.

14

195-2174

WASHER,13/32" x 2" x .109"

- flat, 3/8" bolt size, 13/32" ID x 2" OD x 1/8" thick

4шт.

15

L105090

GROMMET,1/2" ID x 1 1/4" Groove Dia

- hood

2шт.

16

NSS

NOT SOLD SEPARAT

BRACKET - hood mounting, Serial Range: welded-chassis

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
