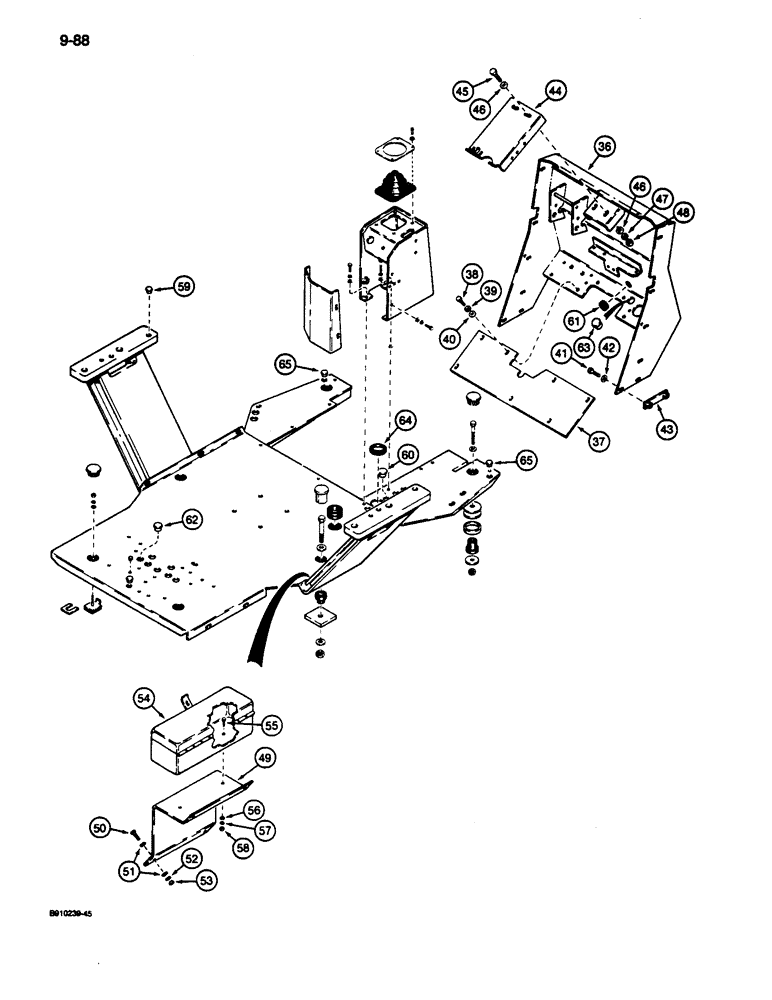

Запчасти Case 680L (9-088) - OPERATORS COMPARTMENT FRAME AND MOUNTING (CONTD) (09) - CHASSIS/ATTACHMENTS

36

D138261

WALL

PANEL - firewall

1шт.

37

D138263

PLATE

- front, removable

1шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

40

195-104

WASHER,3/8"

- flat, , plated 3/8"

7шт.

41

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

42

196-15

WASHER,17/32" x 1 1/6" x .134"

- hardened, plated

4шт.

43

L108558

BLOCK

- tapped

2шт.

44

L101724

BRACKET

- steering column, mounting

1шт.

45

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

46

195-106

WASHER,1/2"

- flat, , plated 1/2"

4шт.

47

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

48

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

49

L107762

PLATE ASSY.

PLATE - tool box mounting, used on models without cab

1шт.

For tool box mounting plate used on models with cab, see Figure 9-120.

1шт.

50

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

51

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

52

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

53

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

54

D124090

BOX, TOOL

BOX - tool, operators

1шт.

55

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

56

195-102

WASHER,1/4"

- flat, , plated 1/4"

2шт.

57

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

58

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

59

353-412

PLUG,Dome, 1.093" hole, Nylon

- nylon, 1-3/32", canopy models only

2шт.

60

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, 1-3/16", used on models with two spool loader valve, if used

1шт.

61

F37765

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

- firewall

1шт.

62

353-413

PLUG,Dome, 1.187" hole, Nylon

- 1-3/16", models without extendable dipper

1шт.

63

353-422

PLUG,Dome, 1.250" hole, Nylon

Used in place of F37765 grommet on Figure 6-02, on models without four wheel drive Dome, 1.250" hole, Nylon

1шт.

64

D72661

GROMMET

- 2-1/2" hole size, parking brake hoses

1шт.

65

353-407

PLUG,Dome, .687" hole, Nylon

- 11/16 inch, used with D147157, Ref. 1, frame on Figure 9-086, if used

2шт.
