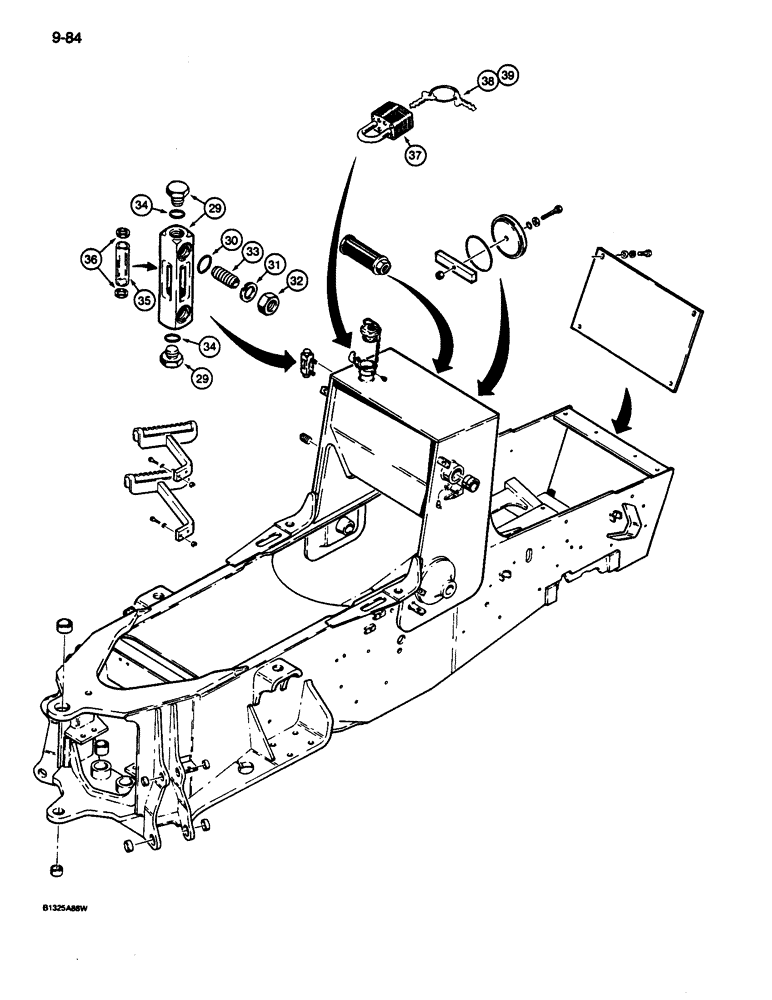

Запчасти Case 680L (9-084) - CHASSIS, STEPS, AND HYDRAULIC OIL LEVEL GAUGE (CONTD) (09) - CHASSIS/ATTACHMENTS

L79110

GAUGE

ASSEMBLY - hydraulic oil level, Includes: Ref. 29 - 36

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - gauge, includes end plugs

1шт.

30

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- gauge

2шт.

31

92-8

LOCK WASHER,1/2"

2шт.

32

131-402

NUT,PAL, 1/2"-20

NUT - hex, special locking, 1/2"-20 NF

2шт.

33

D75821

STUD

- mounting

2шт.

34

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- end plugs to body

2шт.

35

D75820

TUBE

- sight, internal

1шт.

36

D75819

GASKET

- internal, sight tube

2шт.

37

D93753

PADLOCK

- Includes: Ref. 38 and 39

1шт.

38

R29555

KEY

- for Master padlock only

2шт.

39

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
