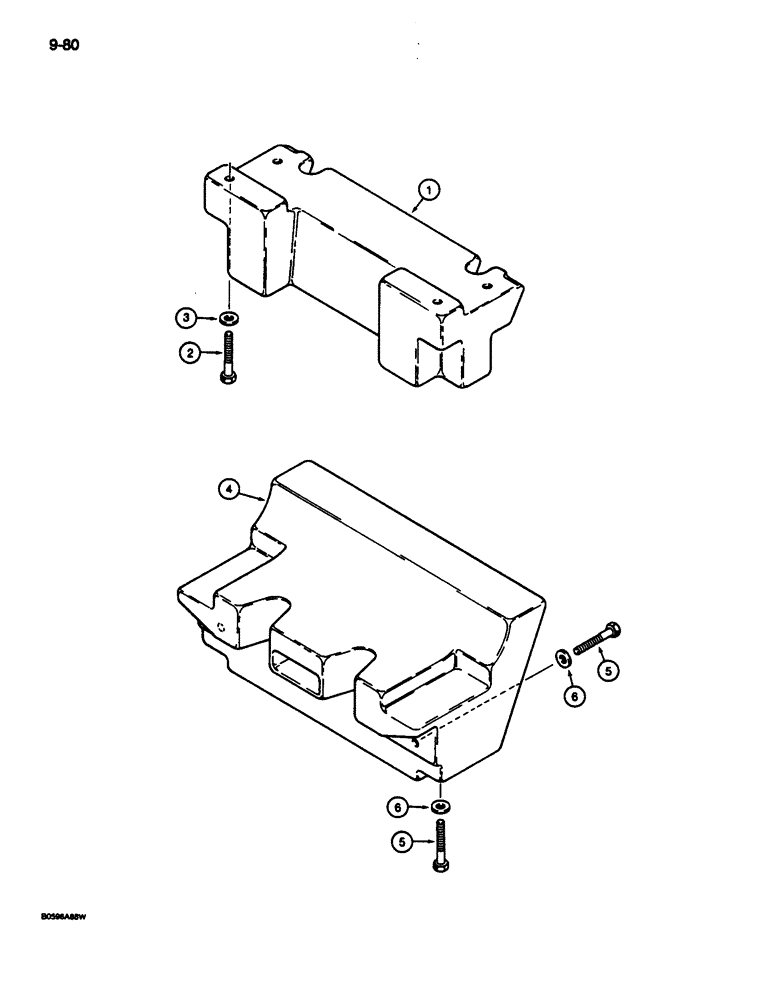

Запчасти Case 680L (9-080) - FRONT COUNTERWEIGHT, STANDARD, OPTIONAL USED ON MODELS WITH EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

D140908

WEIGHT

COUNTERWEIGHT - front, 250 lbs. (113.4 kg), not used on models with clam bucket, standard

1шт.

2

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

Standard counterweight Hex, 5/8"-11 x 5", G5

4шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8 inch, hardened, standard counterweight

4шт.

4

D140898

WEIGHT

COUNTERWEIGHT - front, 710 lbs. (322 kg), optional, used on models with extendable dipper

1шт.

5

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Optional counterweight used on models w/ extendable dipper Hex, 5/8"-11 x 4 1/2", G5

4шт.

6

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8 inch, hardened, optional counterweight used on models with extendable dipper

4шт.
