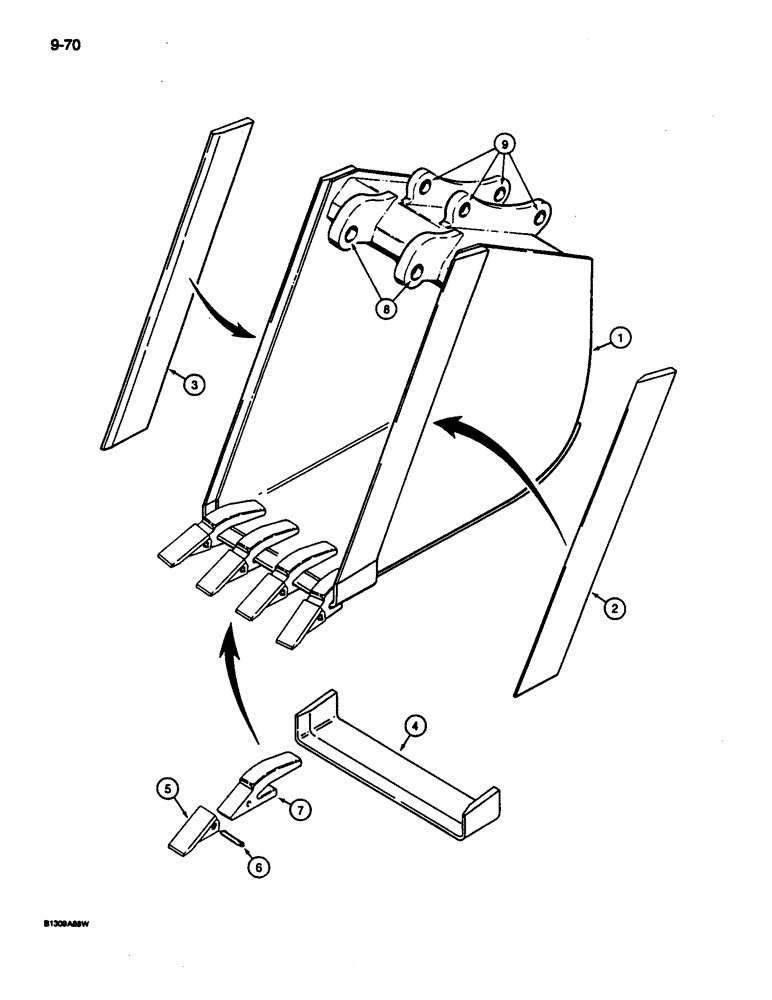

Запчасти Case 680L (9-070) - BACKHOE BUCKET, 24 INCH (610 MM) WIDE, TRENCHING BUCKET - HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

D138072

BUCKET

ASSEMBLY - 24" (610 mm), with 4 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2 - 9

1шт.

2

D138061

EDGE

- cutting, bucket, right-hand side

1шт.

3

D138060

EDGE

- cutting, bucket, left-hand side

1шт.

4

D138064

EDGE

- cutting, center

1шт.

D140481

TOOTH ASSEMBLY - bucket, not serviced as an assembly, order Ref. 5 through 7

4шт.

5

D55468

TOOTH

- tooth

1шт.

6

L32090

PIN

PIN - flex

1шт.

7

D129197

SHANK

- tooth

1шт.

8

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket

2шт.

9

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket

4шт.
