(9-066) - UNIVERSAL BACKHOE BUCKETS, 16 INCH (406 MM) AND 18 INCH (457 MM) WIDE, TRENCHING BUCKETS- HEAVY DUTY

Запчасти Case 680L (9-066) - UNIVERSAL BACKHOE BUCKETS, 16 INCH (406 MM) AND 18 INCH (457 MM) WIDE, TRENCHING BUCKETS- HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

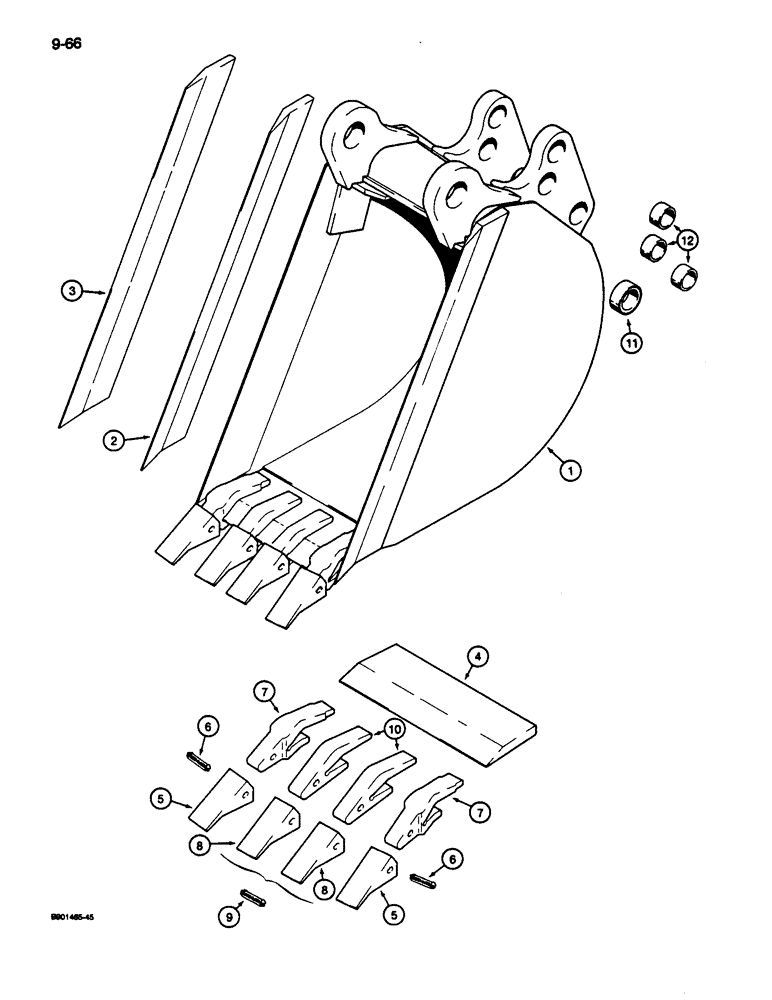

Схема запчастей Case 680L - (9-066) - UNIVERSAL BACKHOE BUCKETS, 16 INCH (406 MM) AND 18 INCH (457 MM) WIDE, TRENCHING BUCKETS- HEAVY DUTY (09) - CHASSIS/ATTACHMENTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D147247

BUCKET

ASSEMBLY - 16 inch (406 mm), with 3 teeth, not shown, machinery item, order from the Machinery Price List, Includes: Ref. 2 - 12

1шт.

2

D146421

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

D146420

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D147249

EDGE

- cutting, center, 16 inch (406 mm) bucket, Includes: Ref. 5 - 7

1шт.

5

D51750

BUCKET TOOTH POINT

POINT - tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN - flex, outer point and shank

1шт.

7

D138157

SHANK

- tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, Includes Ref 8 - 10

1шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth, center

1шт.

9

D134686

SPLIT PIN/SAFETY PIN

PIN - flex, center point and shank

1шт.

10

D48212

SHANK

- tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- 1-3/4 x 2-1/4 x 1-1/4 inch

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- 1-1/2 x 1-7/8 x 1-1/4 inch

6шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners

2шт.

1

D146588

BUCKET

ASSEMBLY - 18 inch (457 mm), with 4 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2 - 12

1шт.

2

D146421

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

D146420

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D145060

EDGE, CUTTING,444.6mm W x 165.1mm L

EDGE - cutting, center, 18 inch (457 mm) bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, Includes Ref 5 - 7

2шт.

5

D39093

TOOTH

POINT - tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN - flex, outer point and shank

1шт.

7

D138157

SHANK

- tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, Includes Ref 8 - 10

2шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth, center

1шт.

9

D134686

SPLIT PIN/SAFETY PIN

PIN - flex, center point and shank

1шт.

10

D48212

SHANK

- tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- 1-3/4 x 2-1/4 x 1-1/4 inch

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- 1-1/2 x 1-7/8 x 1-1/4 inch

6шт.
