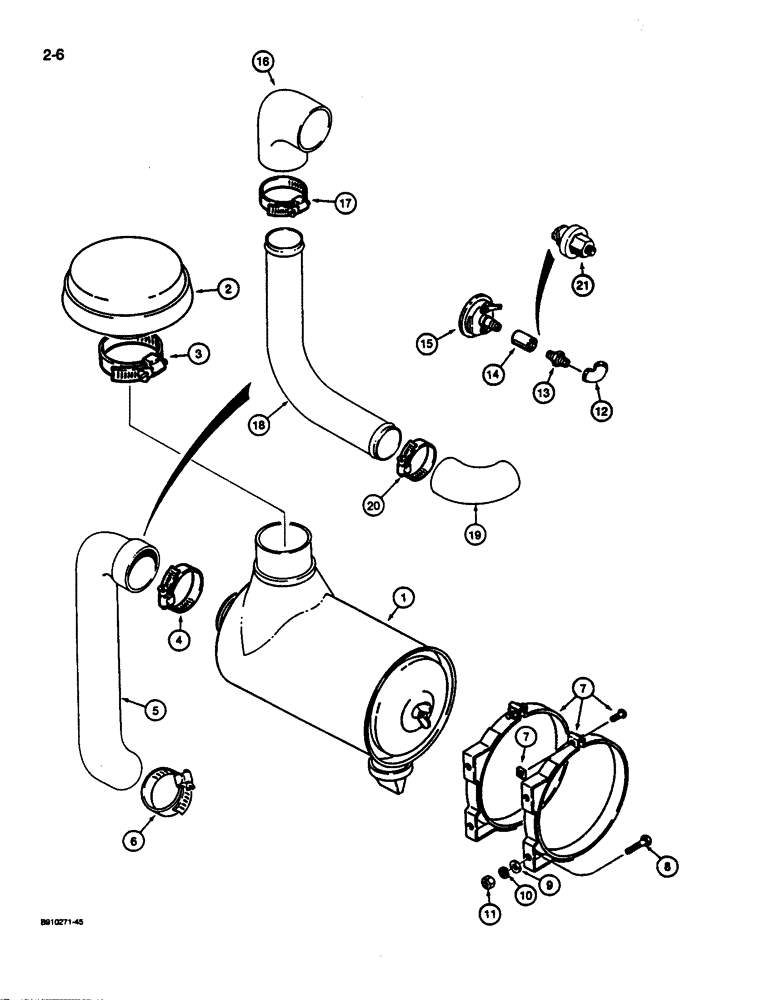

Запчасти Case 680L (2-06) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

A173852

FILTER ASSY

CLEANER ASSEMBLY - air, engine, parts list Figure 2-08

1шт.

2

L10659

CAP

- air cleaner, Includes: Ref. 3

1шт.

3

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - cap

1шт.

4

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - hose to air cleaner

1шт.

5

D145588

HOSE

- air cleaner to engine, naturally aspirated engine

1шт.

6

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose to engine

1шт.

7

A149780

BAND

- air cleaner mounting, includes hardware

2шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

12

221-365

ELBOW,45 Degree, 1/8" NPT

- 45 degree, air cleaner

1шт.

13

D36264

FITTING

- filter, air restriction indicator, if used

1шт.

14

221-1335

COUPLING,Pipe, 1/8" NPT

if used Pipe, 1/8" NPT

1шт.

15

L103131

INDICATOR

SENDER - air filter restriction indicator, if used

1шт.

16

S112515

ELBOW

- 90 degree, reducing, at air cleaner, turbocharged engine

1шт.

17

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - elbow to hose

1шт.

18

D139437

TUBE

HOSE - air cleaner to engine, turbocharged engine

1шт.

19

L110814

ELBOW

- 90 degree, reducing, at engine, turbocharged engine

1шт.

20

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - elbow to engine

1шт.

21

1983233C1

RESTRICTION SWITCH

SENDER - air filter restriction indicator switch, replaces items 13, 14, and 15 shown above

1шт.
