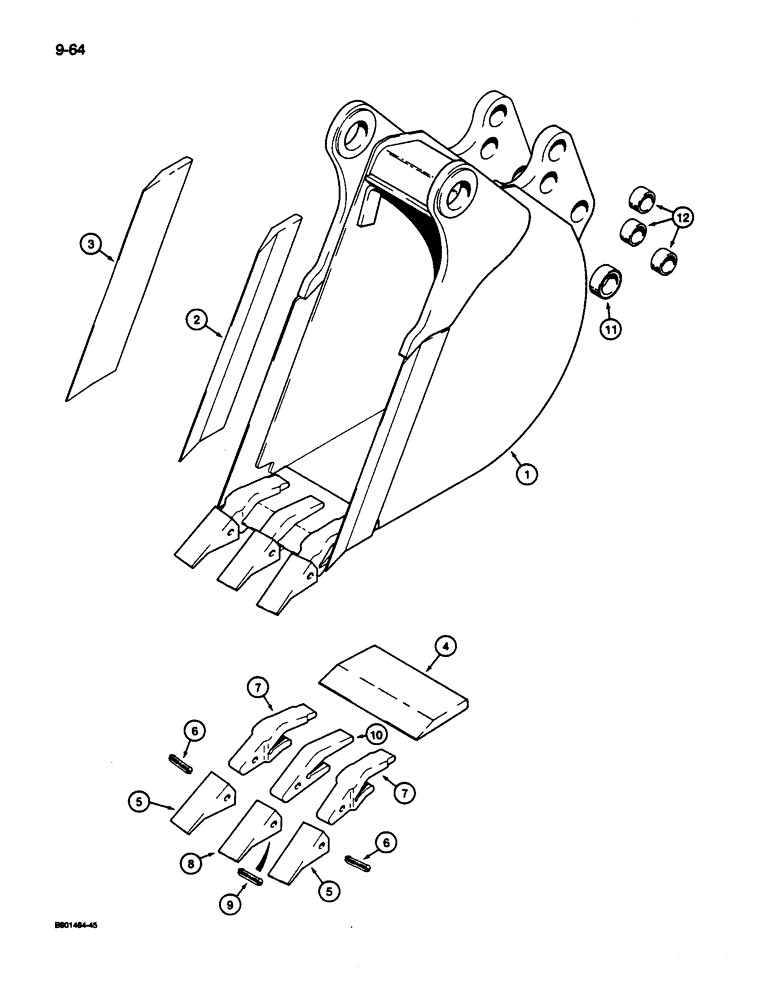

Запчасти Case 680L (9-064) - UNIVERSAL BACKHOE BUCKET, 12 INCH (305 MM) WIDE, TRENCHING BUCKET- HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

D147418

BUCKET

ASSEMBLY - 12 inch (305 mm), with 3 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2 - 12

1шт.

See Ref. 35B on Figure 9-048 for pin used on 12 inch Universal bucket.

1шт.

2

D147411

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

D147410

EDGE

- cutting, bucket, left-hand side

1шт.

4

D147409

EDGE, CUTTING

EDGE - cutting, center, 12 inch (305 mm) bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, Includes Ref 5 - 7

2шт.

5

D39093

TOOTH

POINT - tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN - flex, outer point and shank

1шт.

7

D138157

SHANK

- tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, Includes Ref 8 - 10

1шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth, center

1шт.

9

D134686

SPLIT PIN/SAFETY PIN

PIN - flex, center point and shank

1шт.

10

D48212

SHANK

- tooth, center

1шт.

11

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- 1-3/4 ID x 2-1/2 OD x 3/4 inch long

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- 1-1/2 ID x 1-7/8 OD x 1-1/4 inch long

6шт.
