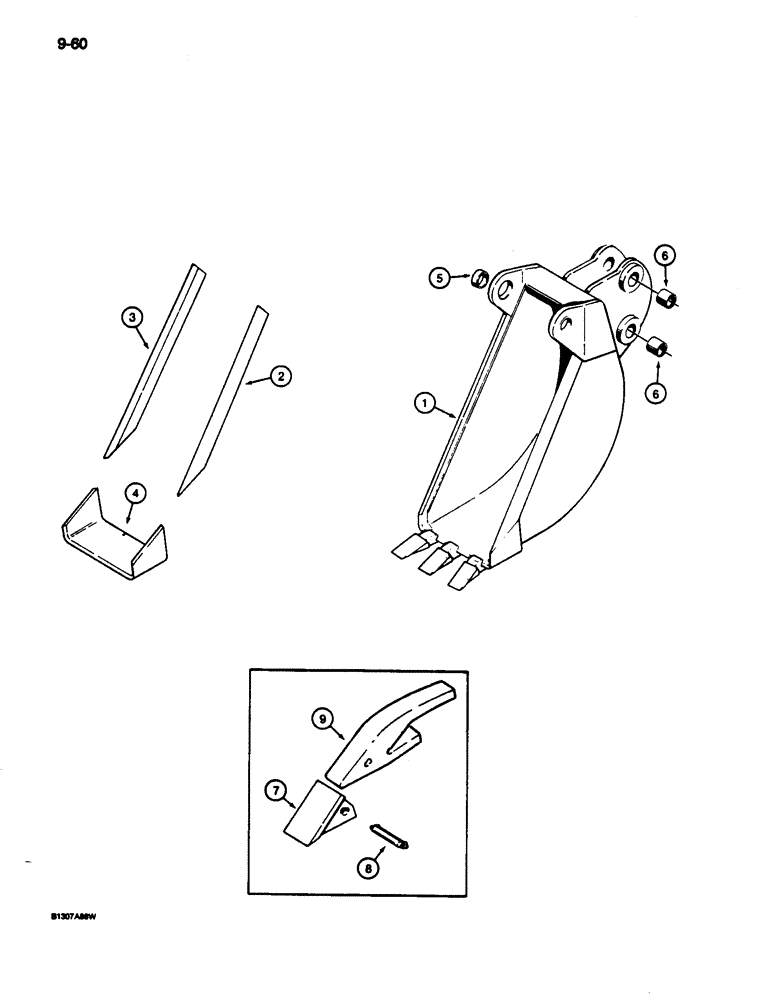

Запчасти Case 680L (9-060) - BACKHOE BUCKET, 12 INCH (305 MM) WIDE, TRENCHING BUCKET (09) - CHASSIS/ATTACHMENTS

1

D52642

BUCKET

ASSEMBLY - 12 inch (305 mm), with 3 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2 - 9

1шт.

2

D29424

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

D29423

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D37464

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper, upper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, lower

4шт.

D41659

TOOTH

ASSEMBLY - trenching bucket, Includes: Ref. 7 - 9

3шт.

7

D39093

TOOTH

POINT - tooth

1шт.

8

D39094

BUCKET TOOTH KEY

PIN - flex, point

1шт.

9

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.
