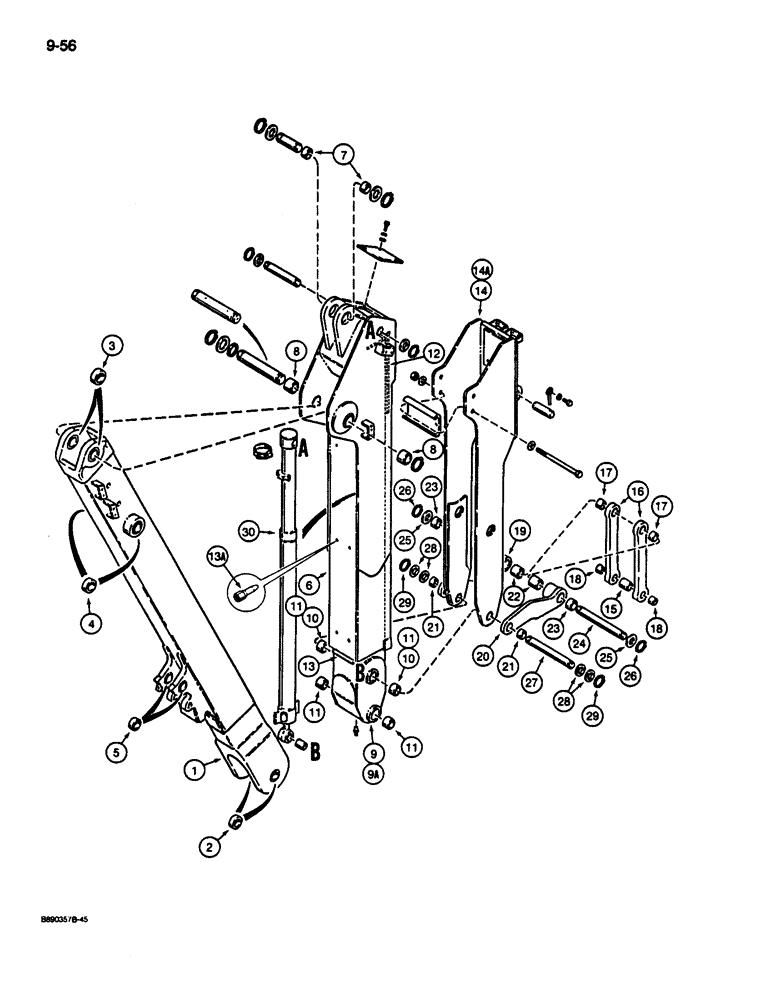

Запчасти Case 680L (9-056) - EXTENDABLE DIPPER, LOW PROFILE (09) - CHASSIS/ATTACHMENTS

1

D144504

BOOM

ASSEMBLY - backhoe, low profile, Includes: Ref. 2 - 5, no longer available, order D146998 boom, Ref. 18C on Figure 9-042 and D147119 pin, Ref. 9A on Figure 9-048

1шт.

2

D137810

BUSHING

- boom, swing tower end

2шт.

3

L70791

BUSHING,57.38mm ID x 82.55mm OD x 38.1mm L

- boom, dipper end

2шт.

4

L77788

BUSHING

- boom cylinder mounting

2шт.

5

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- dipper cylinder mounting

2шт.

6

D144501

DIPPER

- extendable, Includes: Ref. 7 and 8

1шт.

7

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- ear

2шт.

8

D52580

BUSHING

- at boom mounting

2шт.

9

D139559

DIPPER

EXTENSION - dipper arm, inner, uses 1-1/2 inch pin (Ref. 27) at guide link to dipper, Includes: Ref. 10 - 12

1шт.

9a

D145295

DIPPER

EXTENSION - dipper arm, inner, uses 1-3/4 inch pin (Ref. 64 on Figure 9-058) at guide link to dipper, Includes: Ref. 11 and 12

1шт.

10

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- 1-1/2 x 1-7/8 x 1 inch, D139559 extension, guide link

2шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- 1-3/4 x 2-1/4 x 1-1/4 inch, bucket mounting, 2 used on D139559 extension, 4 used on D145295 extension

2-4шт.

12

D144209

WEAR PLATE

PLATE - wear, inner extension, welded on

1шт.

13

L102211

WEAR PLATE

PLATE - wear, inner

1шт.

13a

D134699

NOZZLE CAP

NOZZLE - lubrication fitting

1шт.

14

D144503

SLIDER

- dipper, bucket cylinder, uses 1-1/2 inch pin (Ref. 27) at guide link to dipper, low profile, if used

1шт.

14a

D145300

SLIDER

- dipper, bucket cylinder, uses 1-3/4 inch pin (Ref. 64 on Figure 9-058) at guide link to dipper, if used

1шт.

15

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

SPACER - link, backhoe bucket

1шт.

16

L104437

DRAG LINK

LINK ASSEMBLY - used with 1-3/4 inch OD pin at bucket cylinder to guide link (Ref. 24 pin) and 1-1/2 inch OD pin at bucket, backhoe bucket to cylinder, if used, Includes: Ref. 17 and 18

2шт.

See Figure 9-058, Ref. 56, 59, 60, 64 and 67, for optional size links and pins.

1шт.

17

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- 1-3/4 x 2-1/8 x 1-1/4 inch long

1шт.

18

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- 1-1/2 x 1-7/8 x 1-1/4 inch long

1шт.

19

L104431

DRAG LINK

LINK - bucket guide, left-hand, used with 1-3/4 inch pin at bucket cylinder to guide link (Ref. 24 pin) and 1-1/2 inch pin at link to dipper (Ref. 27 pin), Includes: Ref. 21 - 23

1шт.

See Figure 9-058, Ref. 56, 59, 60, 64 and 67, for optional size links and pins.

1шт.

20

L104430

DRAG LINK

LINK - bucket guide, right-hand, used with 1-3/4 inch pin at bucket cylinder to guide link (Ref. 24 pin) and 1-1/2 inch pin at link to dipper (Ref. 27 pin), Includes: Ref. 21 - 23

1шт.

See Figure 9-058, Ref. 56, 59, 60, 64 and 67, for optional size links and pins.

1шт.

21

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- 1-1/2 x 1-7/8 x 1 inch long, at bar end

1шт.

22

D40089

BUSHING

- 1-3/4 x 2-1/8 x 2 inch long, at boss, long

1шт.

23

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- 1-3/4 x 2-1/8 x 1-1/2 inch long, at boss, short

1шт.

24

D64171

PIN,44.45mm OD x 352.55mm L

- 1-3/4 OD x 13-29/32 inch long, bucket cylinder to guide link, if used

1шт.

See Figure 9-058, Ref. 56, 59, 60, 64 and 67, for optional size links and pins.

1шт.

25

L50511

WASHER

- flat, special, if used

2шт.

26

D25280

SNAP RING,#175, Ext

Ring, Snap, , D64171 pin, if used #175, Ext

2шт.

27

D140718

GUIDE

PIN - 1-1/2 OD x 14-13/64 inch long, guide link to dipper, if used

1шт.

See Figure 9-058, Ref. 56, 59, 60, 64 and 67, for optional size links and pins.

1шт.

28

L79009

WASHER

- flat, special, used as spacer, if used

1шт.

29

D25279

SNAP RING,M35, Int

RING - retaining, D140718 pin retaining, if used

2шт.

30

REF

INSTRUCTION

CYLINDER ASSEMBLY - extendable dipper, for correct assembly and components, see Figure 8-130

1шт.
