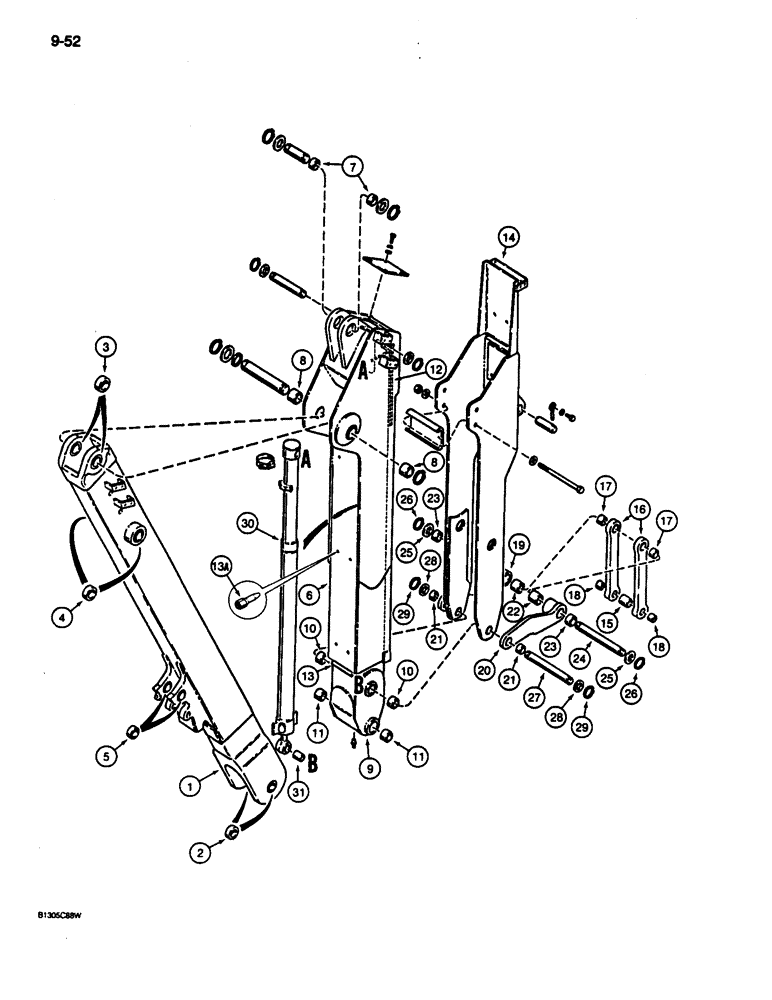

Запчасти Case 680L (9-052) - EXTENDABLE DIPPER, HIGH PROFILE (09) - CHASSIS/ATTACHMENTS

1

D144290

BOOM

ASSEMBLY - backhoe, high profile, Includes: Ref. 2 - 5, no longer available, order D146998 boom, see Figure 9-042, Ref. 18C for boom

1шт.

2

D137810

BUSHING

- boom, swing tower end

2шт.

3

L70791

BUSHING,57.38mm ID x 82.55mm OD x 38.1mm L

- boom, dipper end

2шт.

4

L77788

BUSHING

- boom cylinder mounting

2шт.

5

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- dipper cylinder mounting

2шт.

D139597

DIPPER

ASSEMBLY - extendable, high profile, Includes: Ref. 6 - 13

1шт.

6

D141642

DIPPER

- extendable, Includes: Ref. 7 and 8

1шт.

7

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- ear

2шт.

8

D52580

BUSHING

- at boom mounting

2шт.

9

D139559

DIPPER

EXTENSION - dipper arm, inner, Includes: Ref. 10 - 12

1шт.

10

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- guide link

2шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket mounting

2шт.

12

D144209

WEAR PLATE

PLATE - wear, inner extension, welded on

1шт.

13

L102211

WEAR PLATE

PLATE - wear, inner

1шт.

13a

D134699

NOZZLE CAP

NOZZLE - lubrication fitting

1шт.

14

D141626

SLIDER

- dipper, bucket cylinder

1шт.

15

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

SPACER - link, backhoe bucket

1шт.

16

L104437

DRAG LINK

LINK ASSEMBLY - backhoe bucket to cylinder, Includes: Ref. 17 and 18

2шт.

17

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- link, 1-3/4" (44 mm) ID

1шт.

18

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, 1-1/2" (38 mm) ID

1шт.

19

L104431

DRAG LINK

LINK - bucket guide, left-hand, Includes: Ref. 21 - 23

1шт.

20

L104430

DRAG LINK

LINK - bucket guide, right-hand, Includes: Ref. 21 - 23

1шт.

21

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- guide link, at bar end

1шт.

22

D40089

BUSHING

- guide link, at boss, long

1шт.

23

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- guide link, at boss, short

1шт.

24

L74047

AXLE PIN

PIN - bucket cylinder to guide link

1шт.

25

L50511

WASHER

- flat, special

2шт.

26

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

27

D140718

GUIDE

PIN - guide, Serial Range: link-dipper

1шт.

28

L55703

WASHER

- flat, special

2шт.

29

T37909

SNAP RING,#150, Ext

Ring, Snap, , pin #150, Ext

2шт.

30

REF

INSTRUCTION

CYLINDER ASSEMBLY - extendable dipper, for correct assembly and components, see Figure 8-130

1шт.

31

D139789

BUSHING

- cylinder rod end, not included with cylinder, used with 1980375C1 cylinder

1шт.
