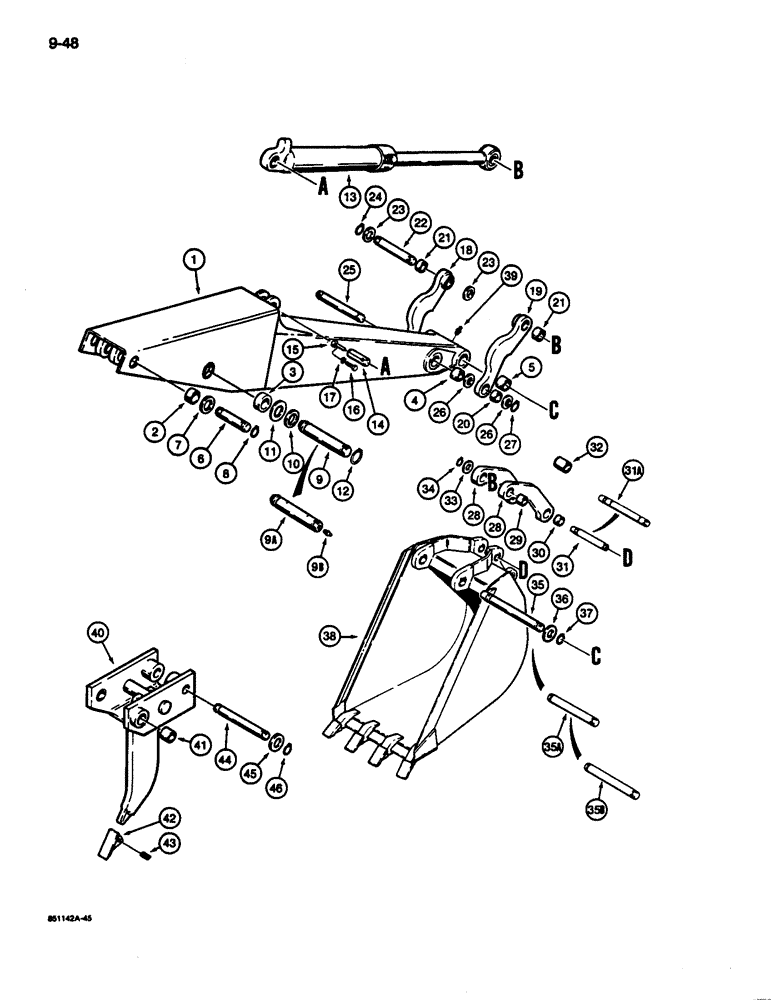

Запчасти Case 680L (9-048) - BACKHOE DIPPER AND BUCKET (09) - CHASSIS/ATTACHMENTS

1

L107300

BOOM

DIPPER ASSEMBLY - backhoe, Includes: Ref. 2 - 5

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- dipper cylinder mounting

2шт.

3

L55734

BUSHING

- dipper pivot at boom pin

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- dipper at bucket link

2шт.

5

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- dipper at bucket pin

2шт.

6

L73598

AXLE PIN

PIN - dipper, Serial Range: cylinder-dipper

1шт.

7

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2", special, dipper cylinder pin

2шт.

8

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

9

L54388

AXLE PIN

PIN - dipper to boom, without grease fitting holes, if used

1шт.

9a

D147119

PIN

- dipper to boom, with grease fitting holes, if used

1шт.

9b

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, if used

2шт.

10

D41472

WASHER

- flat, 2-5/16" ID x 3" OD, special

1шт.

11

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

- flat, 2-7/8" ID x 4-1/2" OD, special, used as a shim

1шт.

12

F40807

SNAP RING,#225, Ext

Ring, Snap, , pin #225, Ext

2шт.

13

REF

INSTRUCTION

CYLINDER ASEMBLY - bucket, for correct assembly and components,see Figure 8-126 or 8-128

1шт.

14

L53181

PIN

- bucket, Serial Range: cylinder-dipper

1шт.

15

R17756

ROD,12.7mm OD x 109.54mm L

PIN - lock

1шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

18

L107377

DRAG LINK

LINK - bucket guide, left-hand, Includes: Ref. 20 and 21

1шт.

19

L107376

DRAG LINK

LINK - bucket guide, right-hand, Includes: Ref. 20 and 21

1шт.

20

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- 1-1/2 x 1-7/8 x 1 inch, L107376 or L107377 link

1шт.

21

L58710

BUSHING,44.45mm ID x 53.98mm OD x 44.45mm L

- 1-3/4 x 2-1/8 x 1-3/4 inch, L107376 or L107377 link

1шт.

22

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - 1-3/4 OD x 10-1/16 inch long, bucket cylinder to bucket link

1шт.

23

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4", special, bucket cylinder pin

1шт.

24

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

25

D53812

PIVOT PIN,1.5" OD x 10.14" L

PIN - 1-1/2 OD x 10-9/64 inch long, guide, Serial Range: link-dipper

1шт.

26

L79009

WASHER

- special

1шт.

27

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

28

L104435

DRAG LINK

LINK - backhoe bucket, Includes: Ref. 29 and 30

2шт.

29

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- link, for 1-3/4" (44 mm) pin

1шт.

30

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, for 1-1/2" (38 mm) pin

1шт.

31

D37614

PIN,38mm Od x 246mm L

- 9-11/16" long x 1-1/2" OD, link to bucket, used on 12", 16", and 18" trenching and 36 inch bellhole buckets

1шт.

31a

L51109

AXLE PIN

PIN - 13-5/16" long x 1-1/2" OD, link to bucket, used on 24", 30", and 36" heavy duty and high capacity trenching buckets

1шт.

32

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

SPACER -, Serial Range: link-bucket

1шт.

33

L79009

WASHER

- special

2шт.

34

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

35

L79166

AXLE PIN

PIN - 14-7/8" long x 1-3/4" OD, bucket to dipper, for all buckets except 12" and 18" buckets

1шт.

35a

D40244

PIN,44.45mm OD x 327.02mm L

- 12-7/8" long x 1-3/4" OD, bucket to dipper, used with 12" and 18" buckets, not used on the 12" Universal bucket

1шт.

35b

D149298

PIN,44.38mm OD x 331mm L

- 13-1/32" long x 1-3/4" OD, 12" Universal bucket only

1шт.

36

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4", special

1шт.

37

D25280

SNAP RING,#175, Ext

Ring, Snap, , item 35, 35A, or 35B pin #175, Ext

2шт.

38

REF

INSTRUCTION

BUCKET - backhoe, see Figures 9-060 through 9-076 for bucket options

1шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

D54136

SUPPORT ASSY.

POINT ASSEMBLY - frost, backhoe, Includes: Ref. 40 - 43

1шт.

40

NSS

NOT SOLD SEPARAT

BODY - frost point

1шт.

41

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- frost tooth

2шт.

42

D83306

POINT

- tooth

1шт.

43

D43417

PIN

- flex, point

1шт.

44

D54218

PIN,38.1mm OD x 345.95mm L

- bucket link to frost tooth

1шт.

45

195-63

WASHER,1 5/8" x 3 1/4" x .180"

- flat, 1-1/2", special

2шт.

46

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.
