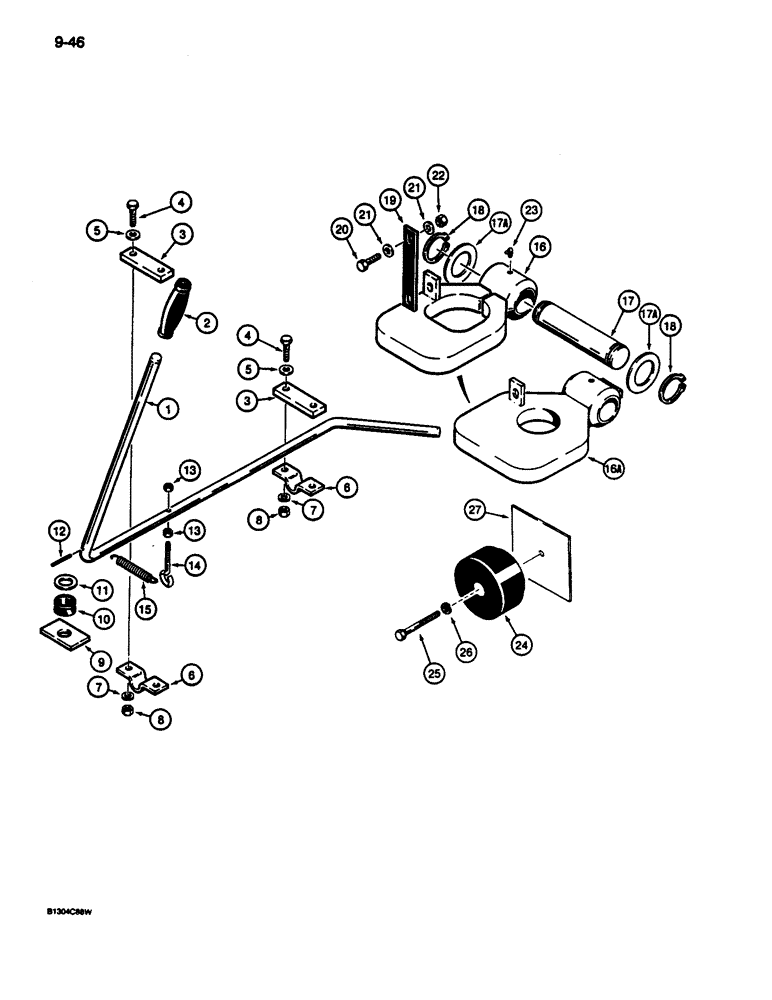

Запчасти Case 680L (9-046) - BOOM LATCH (09) - CHASSIS/ATTACHMENTS

1

D139194

ROD

LEVER - boom latch

1шт.

2

L52477

GRIP

- lever, boom latch

1шт.

3

L57268

BAR

- lock mounting

2шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

5

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

6

L103258

RETAINER

- lever

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

9

L103350

PLATE ASSY.

PLATE - cover, special

1шт.

10

T28755

GROMMET,5/8" ID x 7/8" Groove Dia

- handle

1шт.

11

T22220

WASHER

- flat, special

1шт.

12

138-323

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, 1/8" x 1 3/4", Slotted

1шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

14

C10792

BOLT (SPREADER)

EYEBOLT - 1/4"-20 NC

1шт.

15

L50735

VALVE SPRING

SPRING - eyebolt

1шт.

16

D140191

RING

LATCH - boom, Serial Range: -JJG0070485

1шт.

16a

D148427

RING

LATCH - boom, Start Serial: JJG0070485

1шт.

17

D42611

PIN

- boom, Serial Range: latch-boom

1шт.

17a

A11990

WASHER

- flat, 1-1/2" ID

2шт.

18

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

19

L73300

STRAP

- boom lock

1шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

21

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

22

131-217

LOCK NUT

NUT - hex, self-locking, 3/8"-16 NC, grade 8, plated

2шт.

23

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

1шт.

24

D144072

BUMPER

- boom stop

1шт.

25

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

27

D148424

SHIM,1.6mm Thk

Used with item 24 bumper 1.6mm Thk

1шт.
