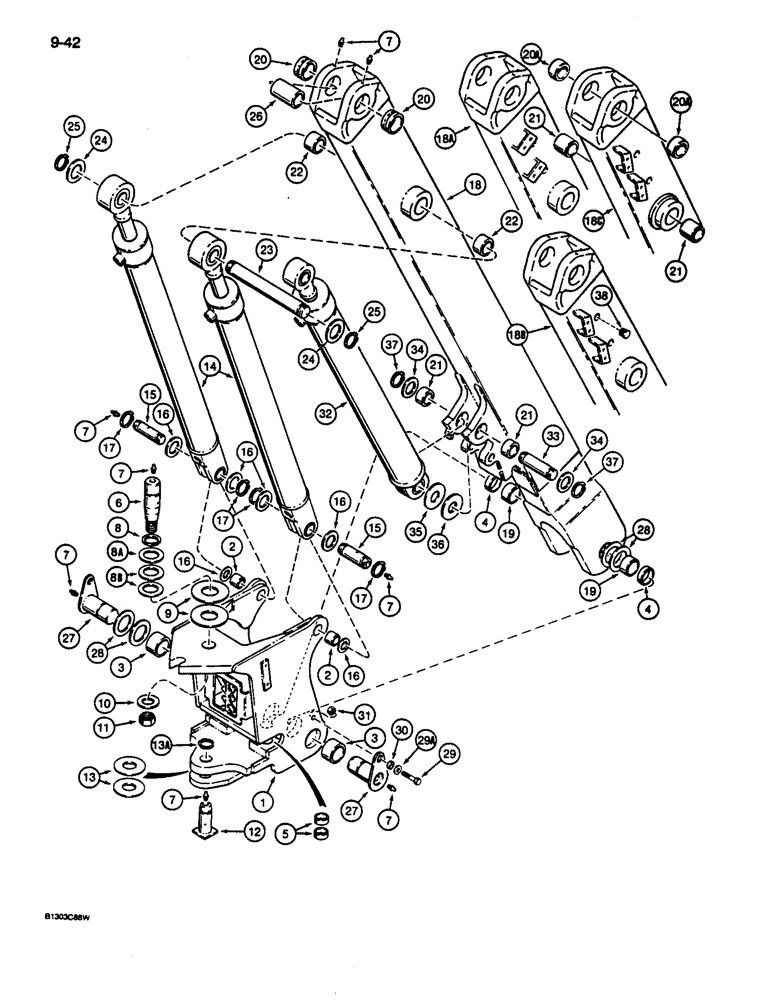

Запчасти Case 680L (9-042) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

D142785

CASING

SWING TOWER ASSEMBLY - backhoe, Includes: Ref. 2 - 5

1шт.

2

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- at boom cylinders

2шт.

3

D137189

BUSHING

- outer, at boom

2шт.

4

D137195

BUSHING

- inner, at boom

2шт.

5

G33061

BUSHING

Bushing at swing cylinder pin, See figure 9-040 for swing cylinder

4шт.

6

L105696

AXLE PIN,63.5mm OD x 246.38mm L

PIN - tower mounting, upper

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

6-8шт.

8

L16015

RING

- retaining, pin, no longer used, not required

1шт.

8a

L47700

WASHER

- flat, special, no longer used, not required

1шт.

8b

195-2167

WASHER,2 5/8" x 4" x .109"

- flat, 2-1/2", special, no longer used, not required

1шт.

9

L79228

WASHER,64.26mm ID x 152.4mm OD x 2.16mm Thk

- 2-1/2" ID x 6" OD, special, used as a shim, upper pin

1шт.

10

L59117

WASHER

- hardened, special, used with hex nut

1шт.

11

129-160

NUT,Jam, 1 1/2"-12, G5, Hvy

- hex, jam, 1-3/4"-12 NF, plated

1шт.

12

L59120

AXLE PIN

PIN - tower mounting, lower

1шт.

13

L47461

WASHER

SHIM - 2-1/8", lower pin mounting, mounts between backhoe frame plates

2шт.

13a

L59033

SNAP RING,#212, Ext

Ring, Snap, , lower pin #212, Ext

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, for correct assembly and components, see Figure 8-118 or 8-120

2шт.

15

L79244

AXLE PIN,38.1mm OD x 120.65mm L

PIN - boom cylinder to swing tower

2шт.

16

L79009

WASHER

- flat, special, pin, boom cylinder to swing tower

1шт.

17

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

18

D144289

BOOM

ASSEMBLY - backhoe, standard dipper, Includes: Ref. 19 - 22, no longer available, order D146998 boom

1шт.

18a

D144290

BOOM

ASSEMBLY - backhoe, extendable dipper, Includes: Ref. 19 - 22, no longer available, order D146998 boom

1шт.

18b

D144504

BOOM

ASSEMBLY - 4-3/4 inch OD boom cylinder mounting tube, standard or extendable dipper, Includes: Ref. 19 - 22, no longer available, order D146998 boom and D147119 pin (Ref. 9A) on Figure 9-048

1шт.

18c

D146998

BOOM

ASSEMBLY - 6-5/8 inch OD boom cylinder mounting tube, standard or extendable dipper, Includes: Ref. 19 - 22

1шт.

19

D137810

BUSHING

- 18-18C boom, tower end

2шт.

20

L70791

BUSHING,57.38mm ID x 82.55mm OD x 38.1mm L

- 18-18B boom, dipper end

2шт.

20a

D44688

BUSHING

- 18C boom, dipper end

2шт.

21

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- 2 used on 18-18B boom, at dipper cylinder mounting; 4 used on 18C boom at dipper and boom cylinder mounting

2-4шт.

22

L77788

BUSHING

- 18-18B boom, at boom cylinder mounting

2шт.

23

D54069

PIN

- boom, Serial Range: cylinder-boom

1шт.

24

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, special

2шт.

25

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

26

L100360

SPACER

- upper boom end casting

1шт.

27

D137231

PIN

- boom to swing tower

2шт.

28

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

- special, boom to swing tower

1шт.

29

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch, boom pin to swing tower

2шт.

29a

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened

2шт.

30

D132045

SPACER,20mm ID x 31.75mm OD x 12mm L

- 25/32" ID x 1-1/4" OD x 1/2" thick

2шт.

31

129-108

NUT,3/4"-10, G5

2шт.

32

REF

INSTRUCTION

CYLINDER ASSEMBLY - dipper, for correct assembly and components, see Figure 8-122 or 8-124

1шт.

33

L54437

AXLE PIN

PIN - dipper, Serial Range: cylinder-boom

1шт.

34

L11917

WASHER

SPACER - 1/16" (1.78 mm) thick, dipper, Serial Range: cylinder-boom

1шт.

35

L47424

WASHER,51.3mm ID x 114mm OD x 4.76mm Thk

SPACER - 3/16" (4.76 mm) thick, dipper cylinder to boom, if used

1шт.

36

L47422

WASHER,51.3mm ID x 114mm OD x 6.35mm Thk

SPACER - 1/4" (6.35 mm) thick, dipper, Serial Range: cylinder-boom

1шт.

37

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

38

D144555

PLUG

- used on models without extendable dipper

4шт.

D104084

KIT

- boom cross tube, includes two reinforcement rings and instructions

1шт.
