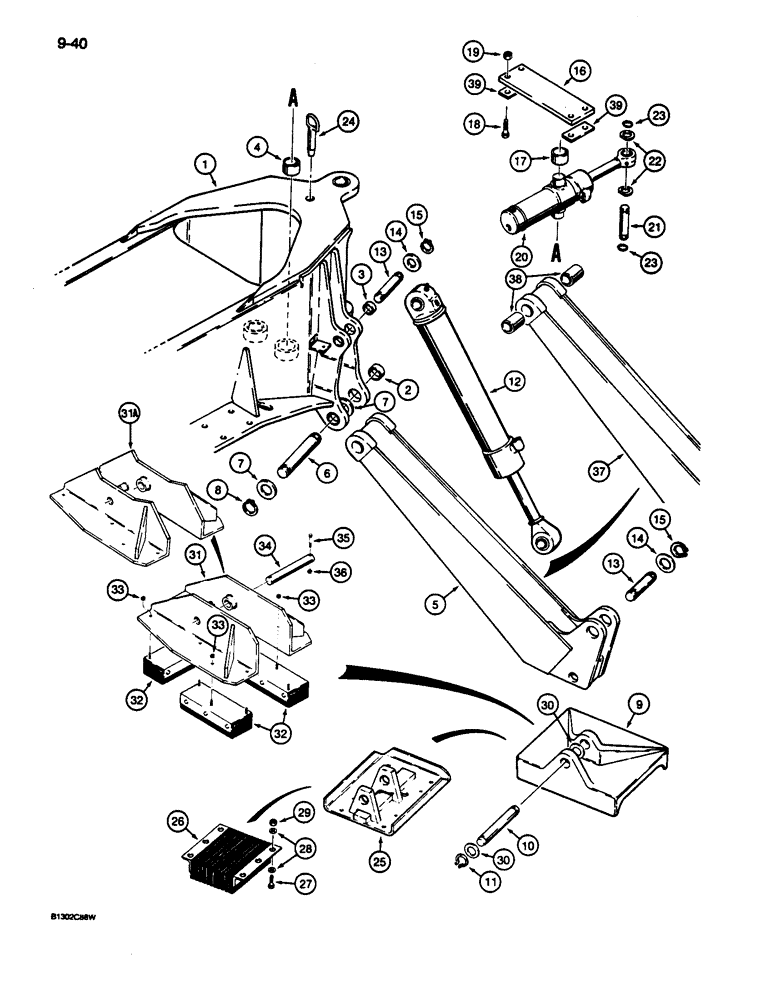

Запчасти Case 680L (9-040) - BACKHOE MOUNTING FRAME AND STABILIZERS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CHASSIS - frame assembly, parts list Figure 9-082, Includes: Ref. 2 - 4

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- stabilizer, Serial Range: leg-frame

4шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- stabilizer, Serial Range: cylinder-frame

4шт.

4

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- swing cylinder pivot, lower

2шт.

5

L104805

STABILIZER

LEG - stabilizer, without bushings, no longer used, order D143775 stabilizer leg, Ref. 37

2шт.

6

D42911

PIN

- stabilizer to chassis frame

2шт.

7

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2", special, used as a spacer

1шт.

8

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

9

L104849

PLATE ASSY.

PLATE - stabilizer, standard

2шт.

10

L71043

AXLE PIN

PIN -, Serial Range: stabilizer-plate

2шт.

11

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

12

REF

INSTRUCTION

CYLINDER ASSEMBLY - stabilizer, for correct assembly and components, see Figure 8-112 or 8-114

2шт.

13

D25079

AXLE PIN,44.45mm OD x 157.2mm L

PIN - stabilizer cylinder to stabilizer leg and frame

4шт.

14

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4", special

1шт.

15

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

8шт.

16

D143397

PLATE

- swing cylinder mounting, Includes: Ref. 17

1шт.

17

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- plate

2шт.

18

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

Swing plate to chassis Hex, 1"-8 x 2 1/2", G5, Full Thd

4шт.

19

129-110

NUT,1"-8, G5

4шт.

20

REF

INSTRUCTION

CYLINDER ASSEMBLY - swing, for correct assembly and components, see Figure 8-116

2шт.

21

D45047

PIN

- swing, Serial Range: cylinder-tower

2шт.

22

D142520

WASHER

- flat, used as a shim

1шт.

23

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

24

L70598

AXLE PIN

PIN - swing lock

1шт.

25

L78070

PLATE ASSY.

FOOT - cemetery and street, if used

2шт.

26

D61368

PAD

Rubber, heavy duty, bolt on, street and cemetery plate, if used

2шт.

27

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, if used

8шт.

28

495-21069

WASHER,5/8"

- flat, 5/8 inch, if used

16шт.

29

425-1010

NUT,5/8"-11, G5

If used 5/8"-11, G5

8шт.

30

195-2142

WASHER,1 17/32" x 2 1/16" x .109"

- flat, 1-1/2", special, used as a spacer

1шт.

31

D143477

GASKET

PLATE - stabilizer, flip over, Category III, order Ref. 32-36 separately, no longer used, order D150439 plate assembly

2шт.

Item 31 replaced by d150440.mck1/99

1шт.

D150439

PLATE ASSEMBLY - stabilizer, flip over, Category III, Includes: Ref. 31A - 36

2шт.

31a

NSS

NOT SOLD SEPARAT

PLATE - stabilizer

1шт.

32

D142314

SKID/SHOE

PAD - rubber, plate

6шт.

33

131-1129

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16 inch NC

18шт.

34

D143478

PIN

- plate to stabilizer leg

2шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

36

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

37

D143775

STABILIZER

LEG - stabilizer, with bushings, Includes: Ref. 38

2шт.

38

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- pivot

2шт.

39

D145141

SHIM,0.8mm Thk

Plate, Cylinder mounting 0.8mm Thk

2шт.
