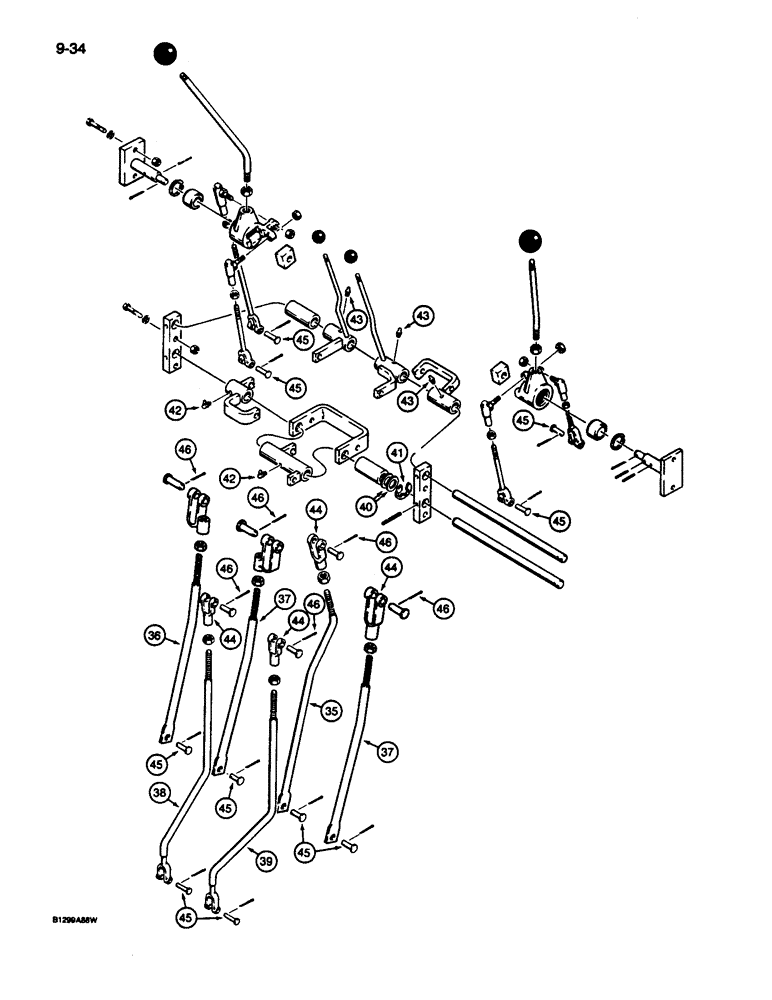

Запчасти Case 680L (9-034) - BACKHOE CONTROLS WITH HAND SWING (CONTD) (09) - CHASSIS/ATTACHMENTS

35

D142193

ROD

- lower dipper control

1шт.

36

L108516

ROD

- lower swing control

1шт.

37

D142192

ROD

- lower control, bucket and boom

2шт.

38

L108518

ROD

- left-hand stabilizer

1шт.

39

L108520

ROD

- right-hand stabilizer

1шт.

40

195-545

WASHER,3/4", SAE

- flat, 3/4", plated, used as a spacer

1шт.

41

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

1шт.

42

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4"-28 NF taper

2шт.

43

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4"-28 NF

3шт.

44

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated 3/8"-24

4шт.

45

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

10шт.

46

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.
