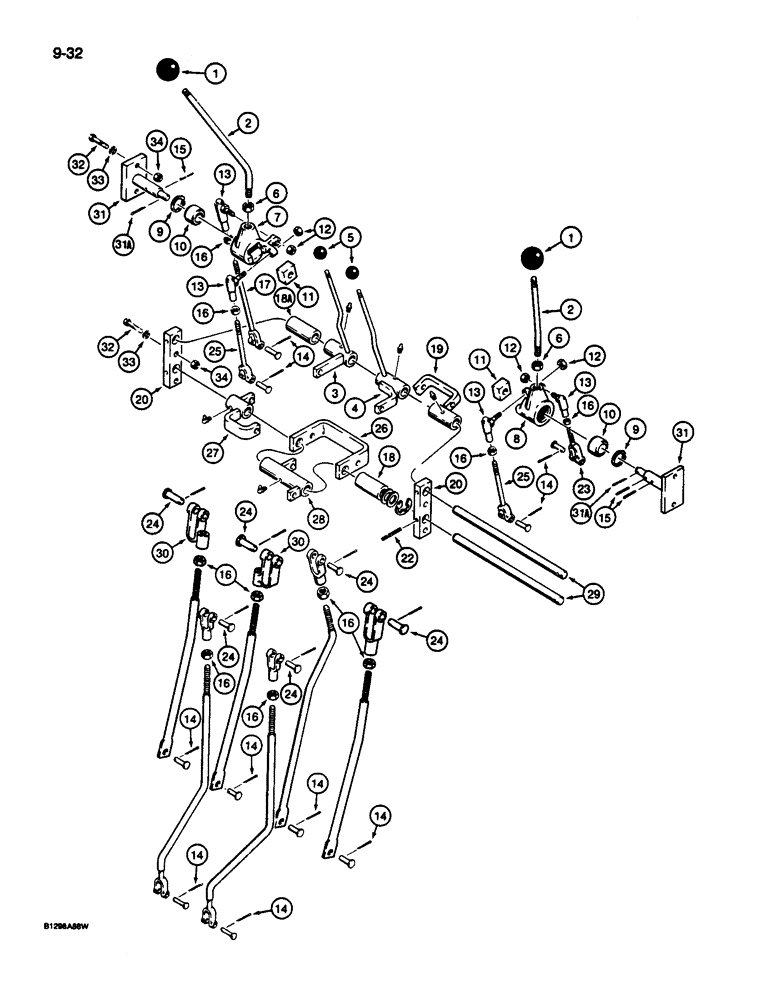

Запчасти Case 680L (9-032) - BACKHOE CONTROLS WITH HAND SWING (09) - CHASSIS/ATTACHMENTS

1

D39118

KNOB

- control levers

2шт.

2

L108087

LEVER

- control, boom and swing, dipper and bucket

2шт.

3

L105459

LEVER

- control, stabilizer, left-hand

1шт.

4

L105456

LEVER

- control, stabilizer, right-hand

1шт.

5

D59912

KNOB

- stabilizer control lever

2шт.

6

129-127

NUT,5/8"-18, G5

2шт.

7

L105056

LEVER

- pivot, left-hand

1шт.

8

L109118

LEVER

- pivot, right-hand

1шт.

9

D38298

SNAP RING

Ring, Snap, 1.438", Int, #143, brg

2шт.

10

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

BEARING - self-aligning

2шт.

11

D38305

BLOCK

- wear

2шт.

12

129-123

NUT,3/8"-24, G5

4шт.

13

D38296

JOINT

- ball, 3/8"

4шт.

14

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

10шт.

15

138-303

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

4шт.

16

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8"-24 NF, plated

10шт.

17

L106744

ROD

- boom control, upper

1шт.

18

D128652

SPACER

TUBE - spacer, lower

1шт.

18a

L105446

TUBE

- spacer, upper

1шт.

19

L105454

BRACKET

- dipper pivot

1шт.

20

L106412

SUPPORT ASSY.

SUPPORT - pivot shaft

2шт.

22

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

2шт.

23

R20187

ROD

- dipper control, upper

1шт.

24

141-54

CLEVIS PIN,3/8" x 1 1/16"

6шт.

25

L106462

ROD

- bucket control

2шт.

26

L105448

BRACKET

- boom pivot

1шт.

27

L107159

LEVER

- swing

1шт.

28

L105450

SHAFT

- bucket

1шт.

29

D79526

ROD

SHAFT - pivot

2шт.

30

L11182

YOKE,3/8" - 24

CLEVIS - 3/8", offset, rod end

2шт.

31

L106441

SUPPORT ASSY.

SUPPORT - pivot

2шт.

31a

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

32

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.
