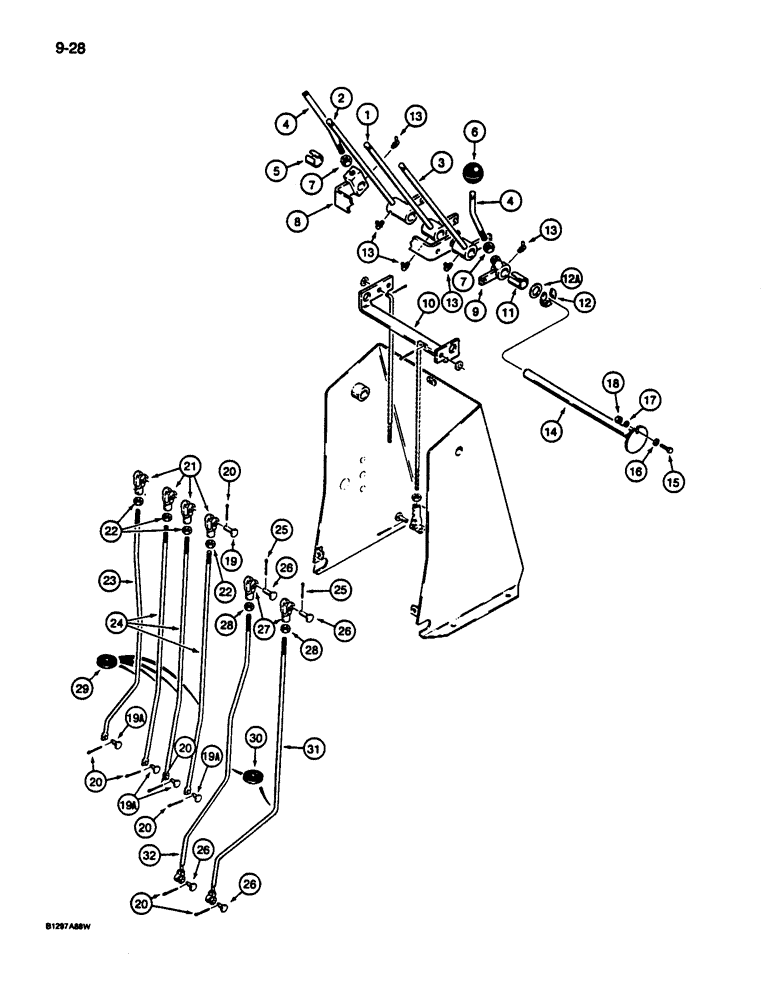

Запчасти Case 680L (9-028) - BACKHOE CONTROLS WITH FOOT SWING, STABILIZER, BOOM, DIPPER & BUCKET CONTROL LEVERS & LINKAGE (09) - CHASSIS/ATTACHMENTS

1

L105984

LEVER

- dipper

1шт.

2

L105985

LEVER

- bucket

1шт.

3

L105983

LEVER

- boom

1шт.

4

L108004

LEVER

- stabilizer, rod control

2шт.

5

D88212

BUSHING

SPACER - shaft, short

1шт.

6

L54563

KNOB

- levers

5шт.

7

129-125

NUT,1/2"-20, G5

2шт.

8

D92993

BRACKET

LEVER - stabilizer, left-hand

1шт.

9

D92995

LEVER

- stabilizer, right-hand

1шт.

10

D129392

BRACKET

- swing

1шт.

11

D88213

SPACER

- shaft, long

1шт.

12

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

1шт.

12a

195-545

WASHER,3/4", SAE

- flat, 3/4", plated

1шт.

13

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4"-28 NF taper

5шт.

14

D123224

SHAFT

- lever mounting

1шт.

15

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

16

195-102

WASHER,1/4"

- flat, , plated 1/4"

1шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

19

141-54

CLEVIS PIN,3/8" x 1 1/16"

4шт.

19a

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

4шт.

20

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

10шт.

21

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated 3/8"-24

4шт.

22

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8"-24 NF, plated

4шт.

23

L104519

ROD

- valve to swing bracket

1шт.

24

D141622

ROD

- boom, dipper, and bucket lever, see Figure 9-036 Ref. 12 for rods used on models with extendable dipper

3шт.

25

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

26

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

4шт.

27

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - 5/16", adjustable

2шт.

28

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

29

L109751

SEAL

SEAL - control rod

4шт.

30

L109752

SEAL

SEAL - control rod

2шт.

31

L102835

ROD

- stabilizer right-hand

1шт.

32

L102825

ROD

- stabilizer left-hand, see Figure 9-036 Ref. 11 for rod used on models with extendable dipper

1шт.
