(9-022) - CLAM BUCKET USED PRIOR TO TRAC. P.I.N. JJG0070547, EXCEPT FOR JJG0070523, JJG0070526 AND JJG0070540

Запчасти Case 680L (9-022) - CLAM BUCKET USED PRIOR TO TRAC. P.I.N. JJG0070547, EXCEPT FOR JJG0070523, JJG0070526 AND JJG0070540 (09) - CHASSIS/ATTACHMENTS

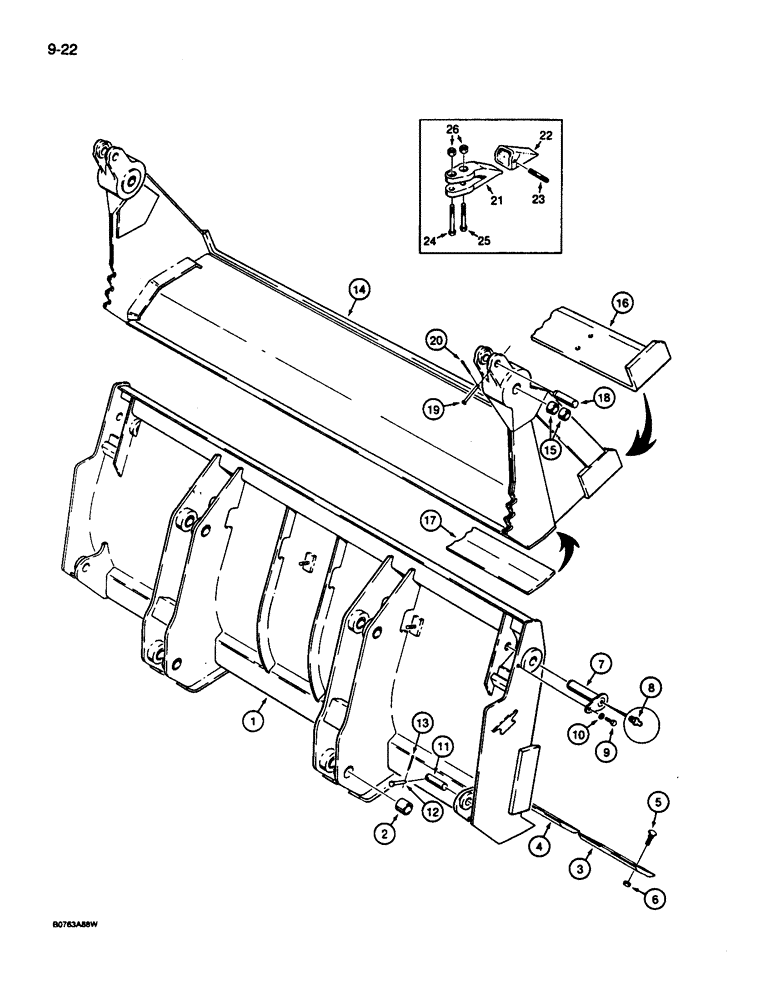

Схема запчастей Case 680L - (9-022) - CLAM BUCKET USED PRIOR TO TRAC. P.I.N. JJG0070547, EXCEPT FOR JJG0070523, JJG0070526 AND JJG0070540 (09) - CHASSIS/ATTACHMENTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D139473

BUCKET ASSEMBLY - clam, 96 inch, machinery item, order from Machinery Price List, Includes: Ref. 1 - 20 on this figure, Ref. 1 thru 11 on Figure 8-024 and D143217 clam cylinders on Figure 8-110

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket ear

8шт.

3

N6743

EDGE

- cutting, end

2шт.

4

A17654

EDGE

- cutting, center

1шт.

5

118-509

PLOW BOLT,3/4"-10 x 2", G8

BOLT - plow, 3/4"-10 NC x 2

18шт.

6

129-572

NUT,3/4"-10, G8

18шт.

7

N7658

PIN

- clam to blade, Includes: Ref. 8

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

9

426-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 8

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

S46134

PIN,37.95mm OD x 98.55mm L

- cylinder, Serial Range: base-blade

2шт.

12

S61971

CLEVIS PIN,15.88mm OD x 80.16mm L

PIN - clevis, use with S46134 pin

2шт.

13

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

D143212

SHELL

CLAM ASSEMBLY - bucket, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

15

S23904

BUSHING

- clam

4шт.

16

A17657

EDGE

- cutting, clam, front

1шт.

17

D143213

EDGE

PLATE - compaction, rear

1шт.

Ref #17 - D143213 compaction plate - Vendor changed from an edge with a crease down the middle to a flat edge in the fall of 1987. The part nbr for the edge did not change. The flat edge will work on new or old buckets but the creased edge will work on old buckets only.

1шт.

18

S18633

AXLE PIN,38.13mm OD x 102.36mm L

PIN -, Serial Range: clam-cylinder

2шт.

19

S10786

CLEVIS PIN

PIN, CLEVIS, Use with S18633 pin

2шт.

20

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

21

S22929

TOOTH

- bucket

9шт.

22

S204157

TOOTH

POINT - tooth

9шт.

23

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2 1/2", Slotted

9шт.

24

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex head, 5/8"-11 NC x 3-1/2", grade 8

9шт.

25

26-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- hex head, 5/8"-11 NC x 3", grade 8

9шт.

26

129-183

NUT,5/8"-11, G8

18шт.
