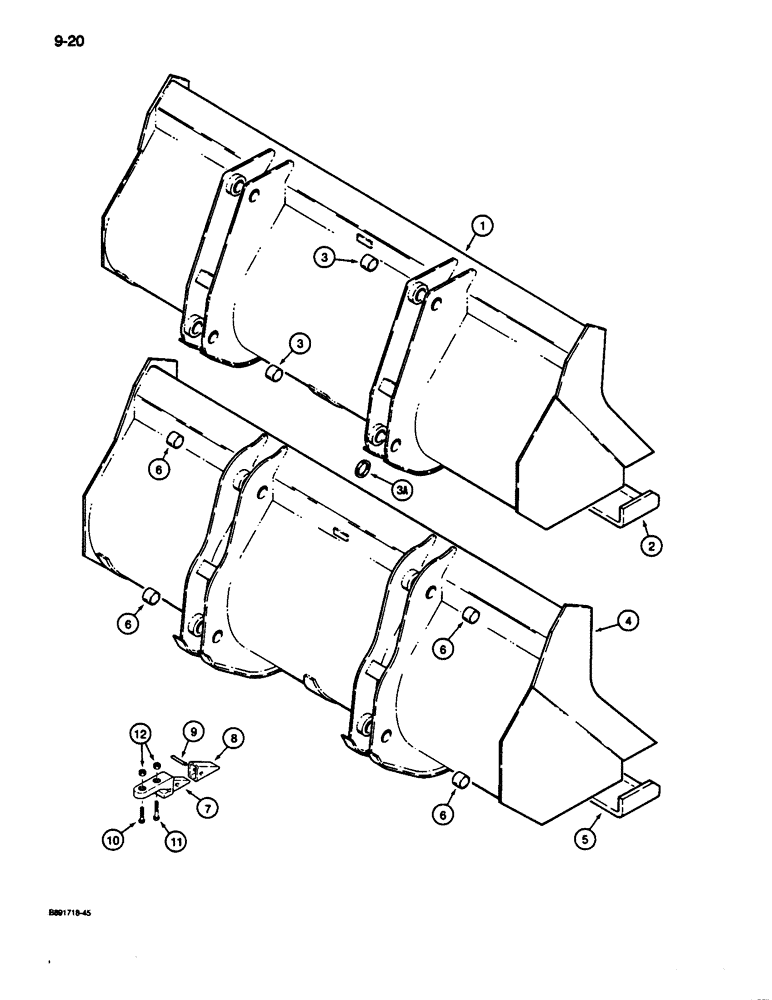

Запчасти Case 680L (9-020) - LOADER BUCKETS, USED ON TRAC. P.I.N. JJG0070523, JJG0070526, JJG0070540 & JJG0070547 & AFTER (09) - CHASSIS/ATTACHMENTS

D146118

BUCKET

ASSEMBLY - 94-1/2" (2400 mm) wide, machinery item, order from the Machinery Price List, Includes: Ref. 1 - 3, 1-1/2 cubic yard (1.2 cubic meter)

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 1-1/2 cubic yard (1.2 cubic meter)

1шт.

2

L101620

EDGE, CUTTING

EDGE - cutting, front, 1-1/2 cubic yard (1.2 cubic meter) bucket

1шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket ear, 1-1/2 cubic yard (1.2 cubic meter) bucket

8шт.

3a

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 inch, special, spacer, 1-1/2 cubic yard (1.2 cubic meter) bucket

8шт.

L104652

BUCKET ASSEMBLY - 96" (2438 mm) wide, machinery item, order from the Machinery Price List, Includes: Ref. 4 - 6, 1-3/4 cubic yard (1.3 cubic meter)

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET - loader, 1-3/4 cubic yard (1.3 cubic meter)

1шт.

5

L101620

EDGE, CUTTING

EDGE - cutting, front, 1-3/4 cubic yard (1.3 cubic meter) bucket

1шт.

6

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket ear, 1-3/4 cubic yard (1.3 cubic meter) bucket

8шт.

D50780

TOOTH

ASSEMBLY - bucket, Includes: Ref. 7 - 9, optional

8шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth, optional bucket

1шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth, optional bucket

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN - point, optional bucket teeth

1шт.

10

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8"-11 NC x 2-1/4", grade 8, optional bucket teeth

8шт.

11

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex head, 5/8"-11 NC x 2-1/2", grade 8, optional bucket teeth

8шт.

12

129-183

NUT,5/8"-11, G8

Optional bucket teeth 5/8"-11, G8

16шт.
