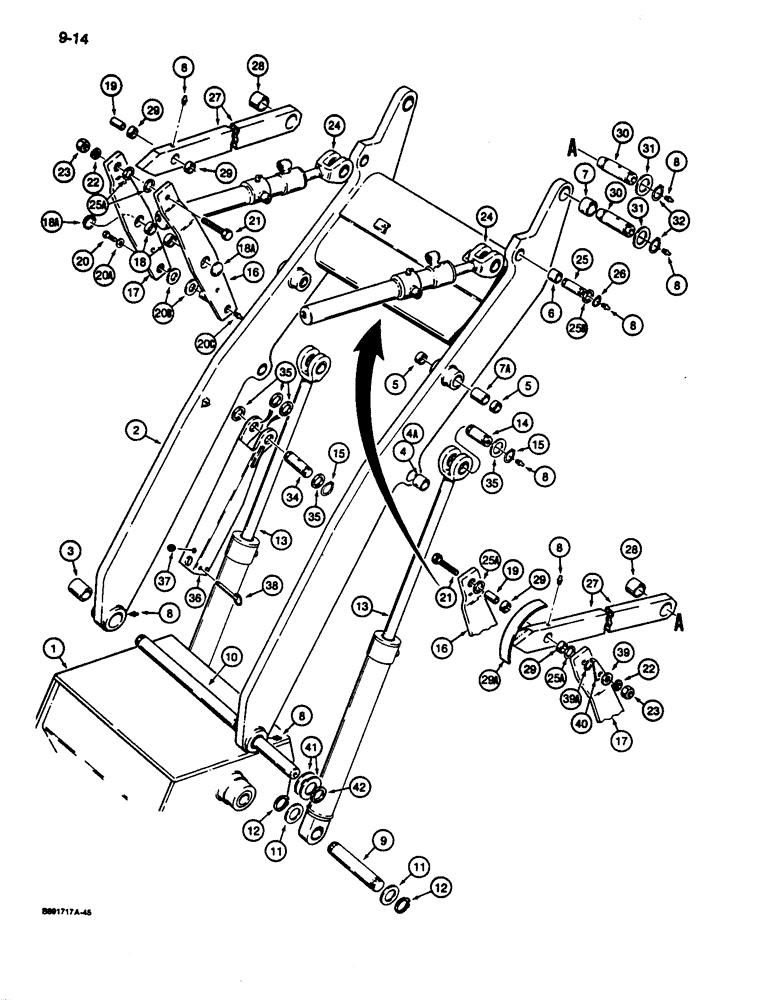

Запчасти Case 680L (9-014) - LOADER LIFT FRAME D146085 AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D146391

CHASSIS

ASSEMBLY - parts list Figure 9-082

1шт.

2

D146085

ARM/LIFTING DEVICE

FRAME ASSEMBLY - loader lift, Includes: Ref. 3 - 7A

1шт.

3

D141731

BUSHING

- 2-17/64 ID x 2-3/4 OD x 3-1/8 inch long, lift frame at chassis, replaces L104381 3-1/4 inch long bushing

2шт.

4

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- 1-3/4 ID x 2-1/8 OD x 3/4 inch long, at lift cylinders, no longer used, order (2) D34354 bushings, Ref. 4A

4шт.

4a

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- 1-3/4 ID x 2-1/8 OD x 1-1/2 inch long, at lift cylinders, replaces four 3/4 inch bushings, Ref. 4

2шт.

5

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- 1-1/2 ID x 1-7/8 OD x 11/16 inch long, lift frame at bucket linkage

4шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- 1-1/2 ID x 1-7/8 OD x 1-1/2 inch long, lift frame at bucket cylinders

2шт.

7

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- 2" ID x 2-1/2" OD x 1-1/2 inch long, lift frame at bucket, replaces 1-3/4 inch long bushing

2шт.

7a

D144031

SPACER

- bushing

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

14шт.

9

D141064

PIN

- lower, lift cylinder pivot shaft

2шт.

10

D129491

SHAFT

PIN - upper, lift arm pivot shaft

1шт.

11

495-81230

WASHER,2.31" ID x 3.5" OD x 0.13" Thk

- flat, 2-1/4", special

1шт.

12

F40807

SNAP RING,#225, Ext

Ring, Snap, , pin #225, Ext

4шт.

13

G103073

CYLINDER ASSY.

CYLINDER ASSEMBLY - loader lift, parts list Figure 8-106

2шт.

14

D140361

PIN

- lift cylinder mounting to lift frame, right-hand side only

1шт.

15

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

16

D143907

ARM ASSY.

LINK ASSEMBLY - inner, bucket link to lift arm, Includes: Ref. 18 and 18A

2шт.

17

D144071

ARM ASSY.

LINK ASSEMBLY - outer, bucket link to lift arm, Includes: Ref. 18 and 18A

2шт.

18

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- D143907 or D144071 link

1шт.

18a

NSS

NOT SOLD SEPARAT

CAP - one per link

1шт.

19

L74594

SPACER

- link

2шт.

20

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- hex, 7/8 NC x 2 inch, grade 8

2шт.

20a

196-33

WASHER,29/32" x 1 1/2" x .134", HDN

- flat, hardened

2шт.

20b

495-81235

WASHER,1 5/8" x 2 1/4" x .065"

- flat, 1-9/16 ID x 2-1/4 OD x 1/16 inch

1шт.

20c

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT, straight

2шт.

21

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2шт.

22

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

23

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

2шт.

24

G101220

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket tilt, parts list Figure 8-108

2шт.

25

D34656

PIN,38.1mm OD x 101.6mm L

- bucket cylinder rod end to lift frame

2шт.

25a

495-81293

WASHER,1.53" ID x 2.06" OD x 0.11" Thk

- flat, 1-17/32 inch, special

1шт.

25b

495-81235

WASHER,1 5/8" x 2 1/4" x .065"

- flat, 1-9/16 inch

1шт.

26

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

27

L108026

DRAG LINK

LINK ASSEMBLY - bucket, Includes: Ref. 28 and 29

2шт.

28

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- link, at bucket

1шт.

29

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- link, at bellcrank

2шт.

29a

L108411

BRACKET

- decal mounting, welded to right-hand link, see Figure 9-162 for D139863 decal

1шт.

30

L105080

AXLE PIN

PIN - bucket link and lift, Serial Range: arm-bucket

4шт.

31

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16", special, used with item 30

1шт.

32

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin, used with item 30 #200, Ext

8шт.

34

L103585

PIN

- lift cylinder and support strut mounting, left-hand side only

1шт.

35

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-3/4 inch, special

1шт.

36

D141755

STRUT

- loader support, left-hand side loader lift frame

1шт.

37

D132350

GROMMET

- rubber

1шт.

38

D120675

HITCH PIN

PIN - hitch

1шт.

39

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat, 3/4" 13/16" x 1 1/2" x .134", HDN

1шт.

39a

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4", plated

1шт.

40

L107670

LEVEL

INDICATOR - bucket level, right-hand side

1шт.

41

495-81230

WASHER,2.31" ID x 3.5" OD x 0.13" Thk

- flat, 2-1/4 inch

4шт.

42

L101691

RING, SNAP

RING - retaining

2шт.

195-2178

WASHER,2 5/16" x 3" x .134"

use

1шт.
