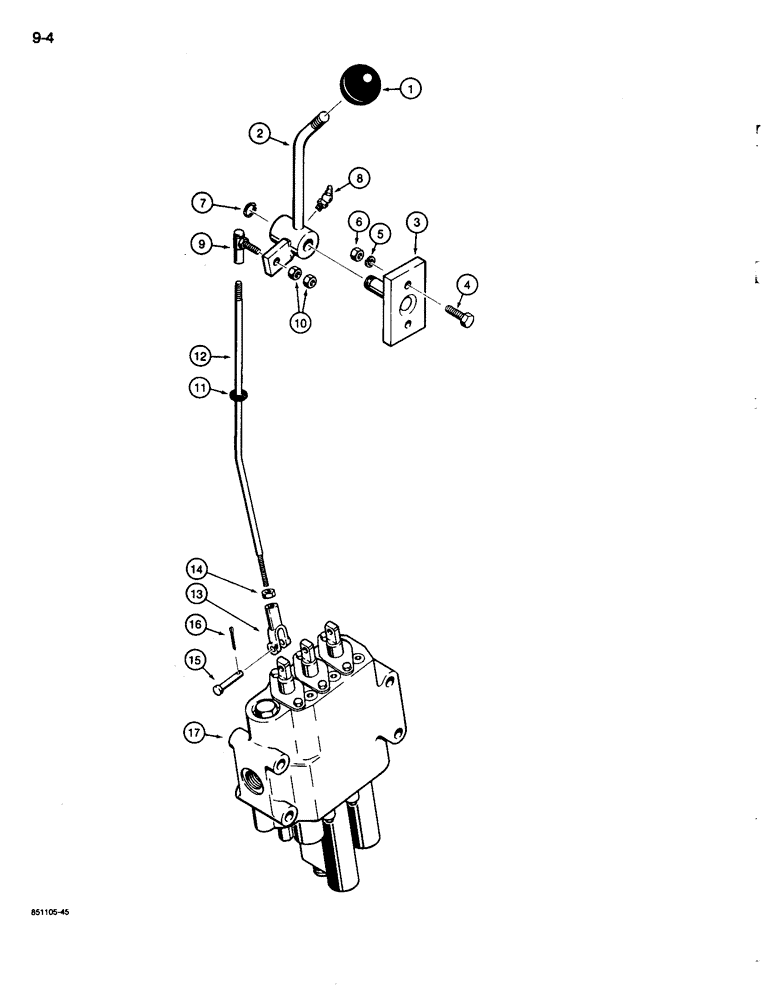

Запчасти Case 680L (9-004) - LOADER CONTROLS - CLAM SPOOL (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

- control lever

1шт.

2

L103011

LEVER

- control, clam bucket

1шт.

3

L103233

BRACKET

- pivot

1шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

T25683

SNAP RING,#75, Ext

Ring, Snap, , pivot #75, Ext

1шт.

8

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8" pipe, self-tapping

1шт.

9

D38296

JOINT

- ball, 3/8"

1шт.

10

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8"-16 NC, plated

2шт.

11

L109751

SEAL

SEAL - control rod

1шт.

12

L103020

ROD

- lever, clam bucket

1шт.

13

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - 5/16", rod end

1шт.

14

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

15

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

16

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

17

D138276

VALVE

ASSEMBLY - loader control, three spool, clam bucket, parts list Figure 8-066

1шт.
