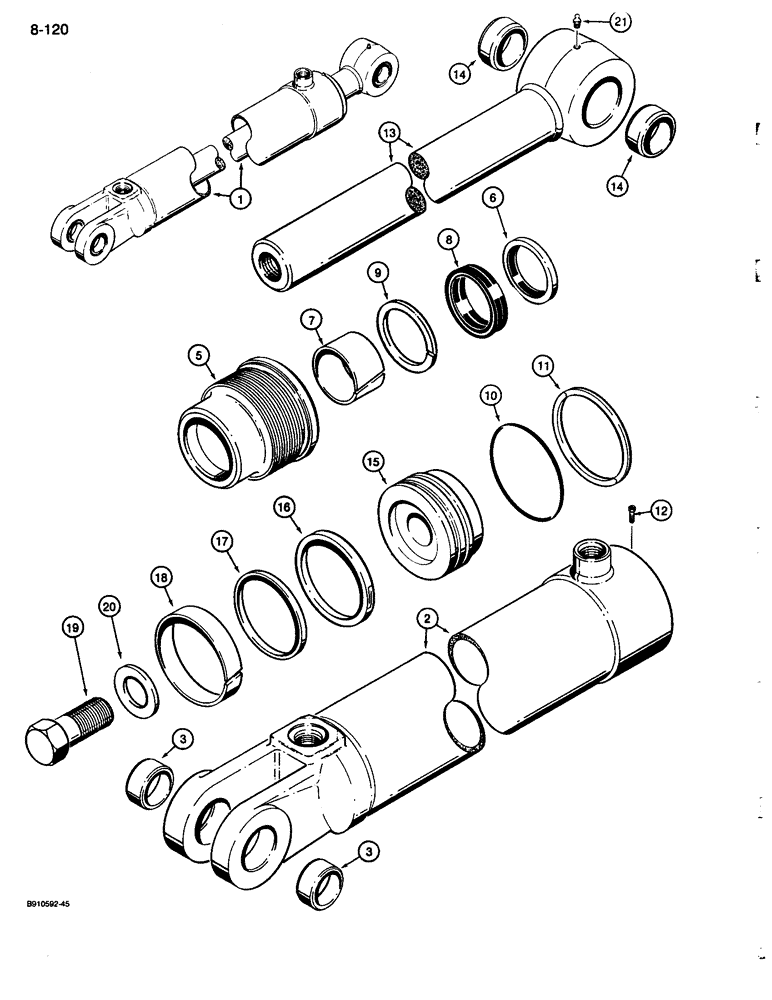

Запчасти Case 680L (8-120) - BACKHOE BOOM CYLINDER, 1343567C1 (08) - HYDRAULICS

1

1343567C1

CYLINDER

ASSEMBLY - 4" (102 mm) ID x 41-3/16" (1046 mm) stroke, boom, 5/16" (7.9 mm) thick wall, if used, Includes: Ref. 2 - 21

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

1343568C1

TUBE

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

1343572C1

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer

1шт.

Part of seal kit P/N 1346478C1.

1шт.

7

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Gland

1шт.

Part of seal kit P/N 1346478C1.

1шт.

8

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- U-cup, piston rod, wide

1шт.

Part of seal kit P/N 1346478C1.

1шт.

8

G100779

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

9

G109086

RING

SEAL - buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N 1346478C1.

1шт.

10

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- 3-5/8 x 1/8, gland

1шт.

Part of seal kit P/N 1346478C1.

1шт.

11

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit P/N 1346478C1.

1шт.

12

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, slotted, self-tapping, No. 8 NC x 3/8 inch

1шт.

13

G34848

ROD

ASSEMBLY - piston, 2-1/4" (57 mm) OD, Includes: Ref. 14

1шт.

14

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- piston rod

2шт.

15

1343702C1

PISTON

- cylinder

1шт.

16

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N 1346478C1.

1шт.

17

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of seal kit P/N 1346478C1.

1шт.

18

G100448

RING,101.6mm OD, Ext

- wear, piston

1шт.

Part of seal kit P/N 1346478C1.

1шт.

19

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

20

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

1346478C1

SEAL KIT

KIT - seal, Includes: Ref. 6, 7, 8 (P/N G107924), 9 - 11 and 16 - 18

1шт.
