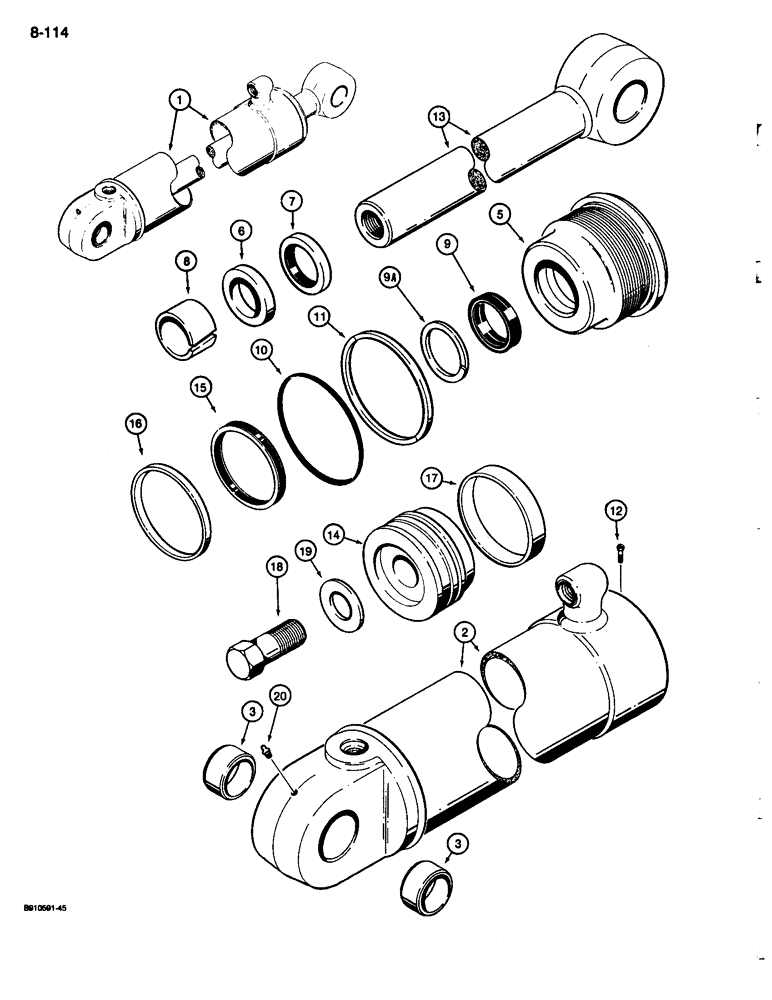

Запчасти Case 680L (8-114) - BACKHOE STABILIZER CYLINDER, 1986853C1 (08) - HYDRAULICS

1

1986853C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4-1/2" (114 mm) ID x 22-3/8" (568 mm) stroke, stabilizer, with one-piece piston, Includes: Ref. 2 - 20

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G102277

TUBE,31.79" L

- cylinder, Includes: Ref. 3

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube

2шт.

G104316

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of seal kit P/N 1986856C1.

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of seal kit P/N 1986856C1.

1шт.

9

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N 1986856C1.

1шт.

9

G100778

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

9a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N 1986856C1.

1шт.

10

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

Gland -246, 70 Duro, 4.484" ID x .139" Thk

1шт.

Part of seal kit P/N 1986856C1.

1шт.

11

G32284

BACK-UP RING

- backup, gland O-ring

1шт.

Part of seal kit P/N 1986856C1.

1шт.

12

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, slotted, self-tapping, No. 8 NC x 3/8 inch

1шт.

13

G102280

ROD

- piston, 2" (51 mm) OD

1шт.

14

1986855C1

PISTON

- cylinder

1шт.

15

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

RING - loader

1шт.

Part of seal kit P/N 1986856C1.

1шт.

16

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

- rectangular

1шт.

Part of seal kit P/N 1986856C1.

1шт.

17

G101996

WEAR RING,4.5" OD x 0.75" Thk

RING - wear

1шт.

Part of seal kit P/N 1986856C1.

1шт.

18

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8

1шт.

19

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

1986856C1

SEAL KIT

KIT - seal, Includes: Ref. 7 - 9, 9A - 11 and 15 - 17

1шт.
