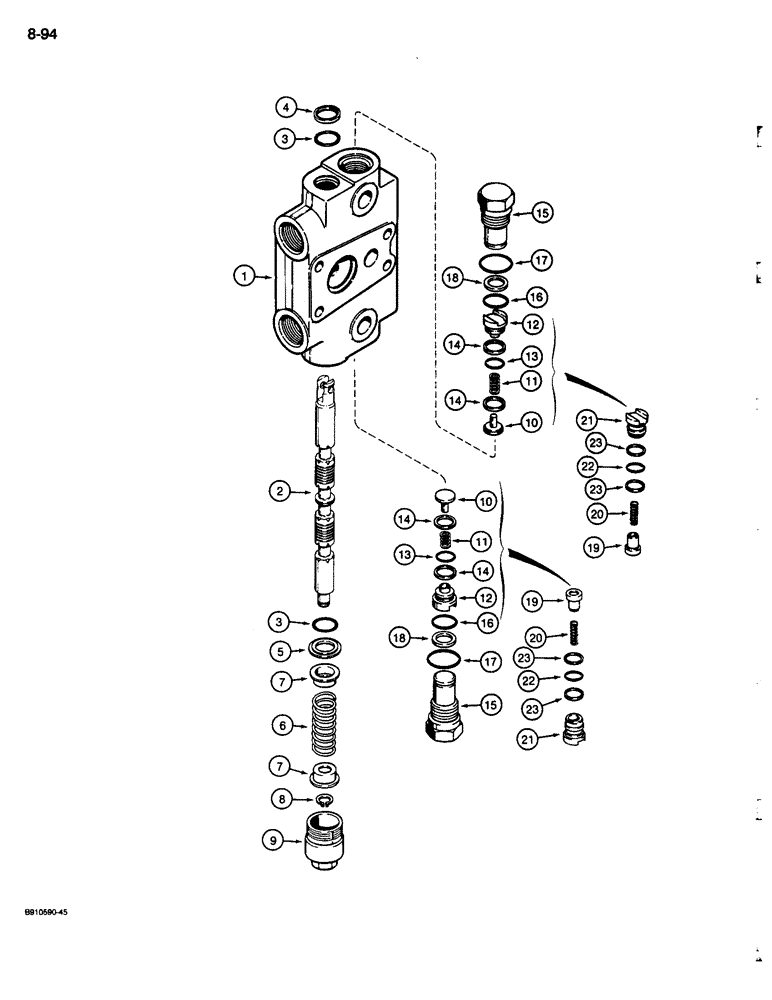

Запчасти Case 680L (8-094) - BACKHOE CONTROL VALVE, DIPPER EXTENSION SECTION (08) - HYDRAULICS

G110588

VALVE

SECTION ASSEMBLY - dipper extension, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

G108461

O-RING

- body

2шт.

Part of seal kit P/N 1346105C1.

1шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- spool

1шт.

Part of seal kit P/N 1346105C1.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G110135

SPRING

- centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

- centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

9

G33080

CAP

- centering spring

1шт.

10

G33081

VALVE POPPET

POPPET - flat poppet pin, load check valve, no longer used, order 1346219C2 valve, Ref. 19 - 23

2шт.

11

G33573

SPRING

- load check valve, no longer used, order 1346219C2 valve, Ref. 19 - 23

2шт.

12

G104062

PLUG

- load check valve, no longer used, order 1346219C2 valve, Ref. 19 - 23

2шт.

13

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- plug

2шт.

Part of seal kit P/N 1346105C1.

1шт.

14

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

4шт.

Part of seal kit P/N 1346105C1.

1шт.

G33122

PLUG,ORB

ASSEMBLY - circuit relief valve port, Includes: Ref. 15 - 18

2шт.

15

NSS

NOT SOLD SEPARAT

PLUG - circuit relief valve port

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Plug -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

Part of seal kit P/N 1346105C1.

1шт.

18

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, small O-ring

1шт.

Part of seal kit P/N 1346105C1.

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY - hollow poppet pin, load check, Includes: Ref. 19 - 23

2шт.

19

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice, replaces flat poppet, load check

1шт.

20

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check

1шт.

21

1343708C1

PLUG

- load check

1шт.

22

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- plug

1шт.

Part of seal kit P/N 1346105C1.

1шт.

23

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

1346105C1

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 13, 14, 16 - 18, 22 and 23, plus additional O-rings not required for this application

1шт.
