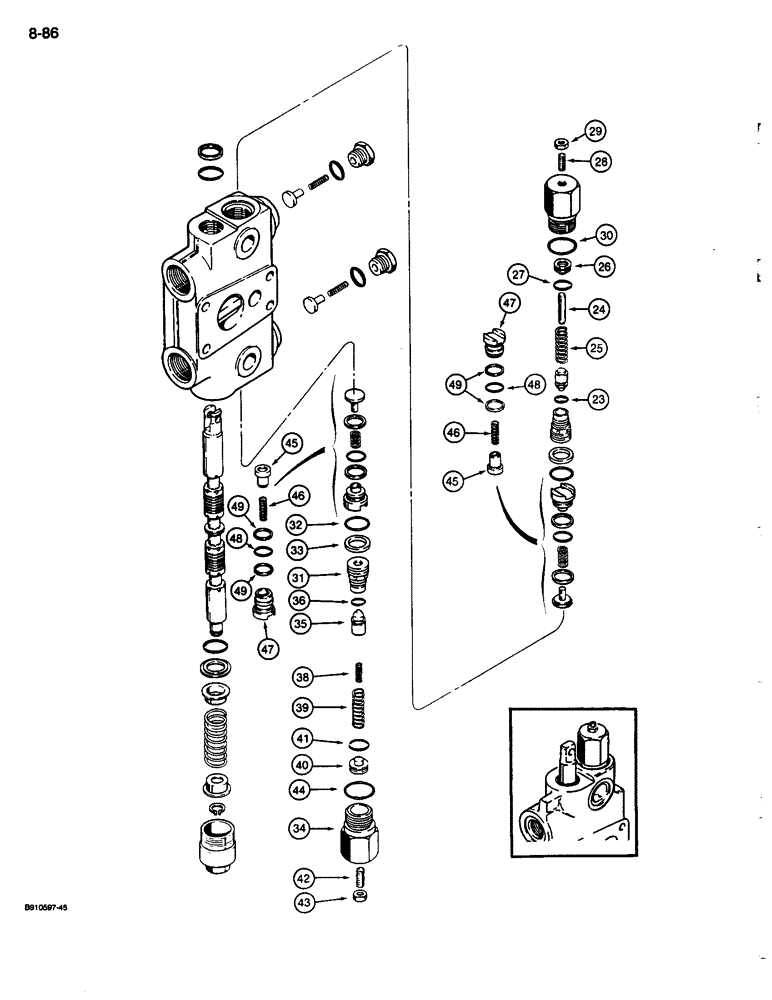

Запчасти Case 680L (8-086) - BACKHOE CONTROL VALVE, BOOM SECTION (CONTD) (08) - HYDRAULICS

REF

INSTRUCTION

SECTION ASSEMBLY - boom, see previous figure for boom section options, Includes: Ref. 23 - 49 on this figure and parts on Figure 8-084

1шт.

REF

INSTRUCTION

VALVE ASSEMBLY - circuit relief, see Figure 8-084 for valve options, Includes: Ref. 23 - 30 on this figure and parts on Figure 8-084

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

24

NSS

NOT SOLD SEPARAT

PIN - stop, circuit relief valve spring

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve

1шт.

26

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

28

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point, used with G109443 circuit relief valve

1шт.

28

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

SCREW - set, hex socket headless, 5/16 NF x 1-1/4 inch, oval point, used with 1346023C1 circuit relief valve

1шт.

29

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Body

1шт.

Part of seal kit P/N 1346105C1.

1шт.

G109391

VALVE

ASSEMBLY - circuit relief, used in production, order G109449 kit for service, see below, Includes: Ref. 31 - 43

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

31

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

32

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

33

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, small O-ring, seat

1шт.

Part of seal kit P/N 1346105C1.

1шт.

34

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

35

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

38

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, inner

1шт.

39

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, outer

1шт.

40

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

41

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

42

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

43

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

44

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Body

1шт.

Part of seal kit P/N 1346105C1.

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 45 - 49

2шт.

45

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice, replaces flat poppet pin

1шт.

46

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check

1шт.

47

1343708C1

PLUG

- load check

1шт.

48

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- plug

1шт.

Part of seal kit P/N 1346105C1.

1шт.

49

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup

2шт.

Part of seal kit P/N 1346105C1.

1шт.

G109449

KIT

- service for G109391, includes G109447 relief valve assembly (Ref. 31 - 44) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

G109448

KIT

- service for G109443 on Figure 8-084, includes G109446 relief valve assembly (Ref. 18 - 22 on Figure 8-084 and Ref. 23 - 30 on this figure) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

G110077

KIT

- service for 1346023C1 on Figure 8-084, includes G110078 relief valve assembly (Ref. 18 - 22 on Figure 8-084 and Ref. 23 - 30 on this figure) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

1346105C1

SEAL KIT

KIT - seal, Includes: Ref. 30, 32, 33, 44, 48 and 49 on this figure, parts on Figure 8-084, plus additional O-rings not required for this application

1шт.
