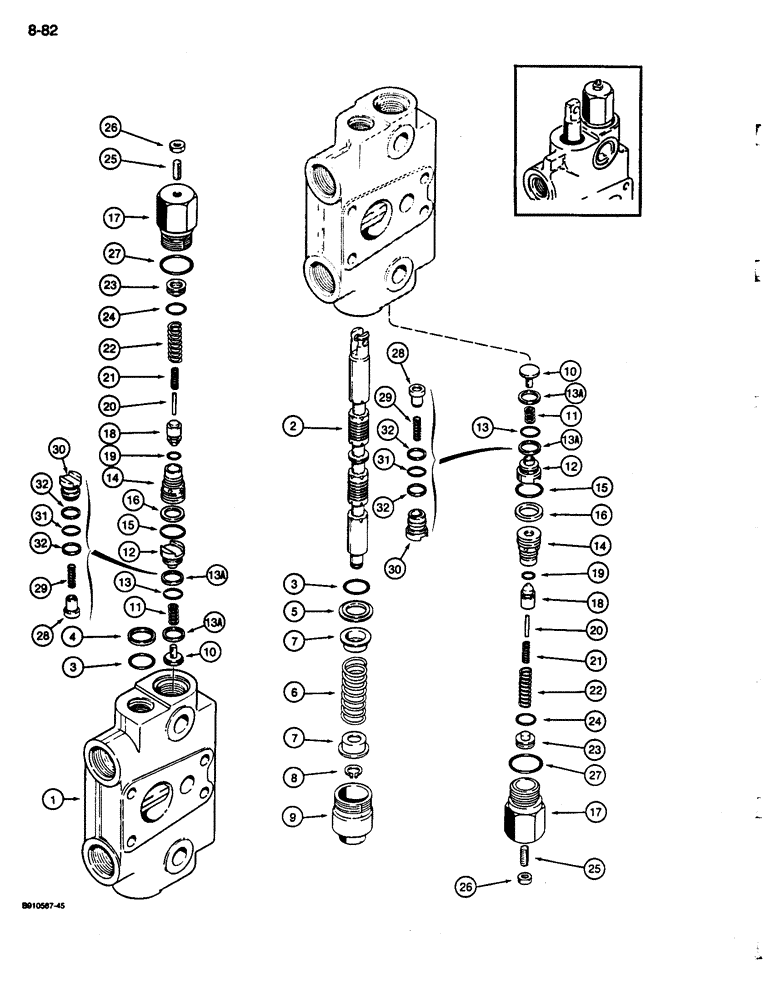

Запчасти Case 680L (8-082) - BACKHOE CONTROL VALVE, DIPPER AND BUCKET SECTION (08) - HYDRAULICS

G110585

VALVE

SECTION ASSEMBLY - dipper and bucket, circuit relief valve with one-piece cap, Includes: Ref. 1 - 32

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- body

2шт.

Part of seal kit P/N 1346105C1.

1шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- spool

1шт.

Part of seal kit P/N 1346105C1.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G110135

SPRING

- centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

9

P0033080G

SCREW

- centering spring

1шт.

10

G33081

VALVE POPPET

POPPET - flat poppet pin, load check valve, no longer used, order 1346219C2 valve, Ref. 28 - 32

2шт.

11

G33573

SPRING

- load check valve, no longer used, order 1346219C2 valve, Ref. 28 - 32

2шт.

12

G104062

PLUG

- load check valve, no longer used, order 1346219C2 valve, Ref. 28 - 32

2шт.

13

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- plug

2шт.

Part of seal kit P/N 1346105C1.

1шт.

13a

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

4шт.

Part of seal kit P/N 1346105C1.

1шт.

G109445

VALVE ASSEMBLY - circuit relief, one-piece cap, used in production, order G109449 kit for service, Includes: Ref. 14 - 27

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

16

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, small O-ring, seat

1шт.

Part of seal kit P/N 1346105C1.

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

18

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - relief stop

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, inner

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, outer

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

25

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

26

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Body

1шт.

Part of seal kit P/N 1346105C1.

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 28 - 32

2шт.

28

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice, replaces flat poppet pin

1шт.

29

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check

1шт.

30

1343708C1

PLUG

- load check

1шт.

31

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- plug

1шт.

Part of seal kit P/N 1346105C1.

1шт.

32

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup

2шт.

Part of seal kit P/N 1346105C1.

1шт.

1346105C1

SEAL KIT

KIT - seal, Includes: Refs. 3, 4, 13, 13A, 15, 16, 27, 31 and 32, plus additional O-rings not required for this application

1шт.

G109449

KIT

- service for G109445, includes G109447 relief valve assembly (Ref. 14 - 27) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.
