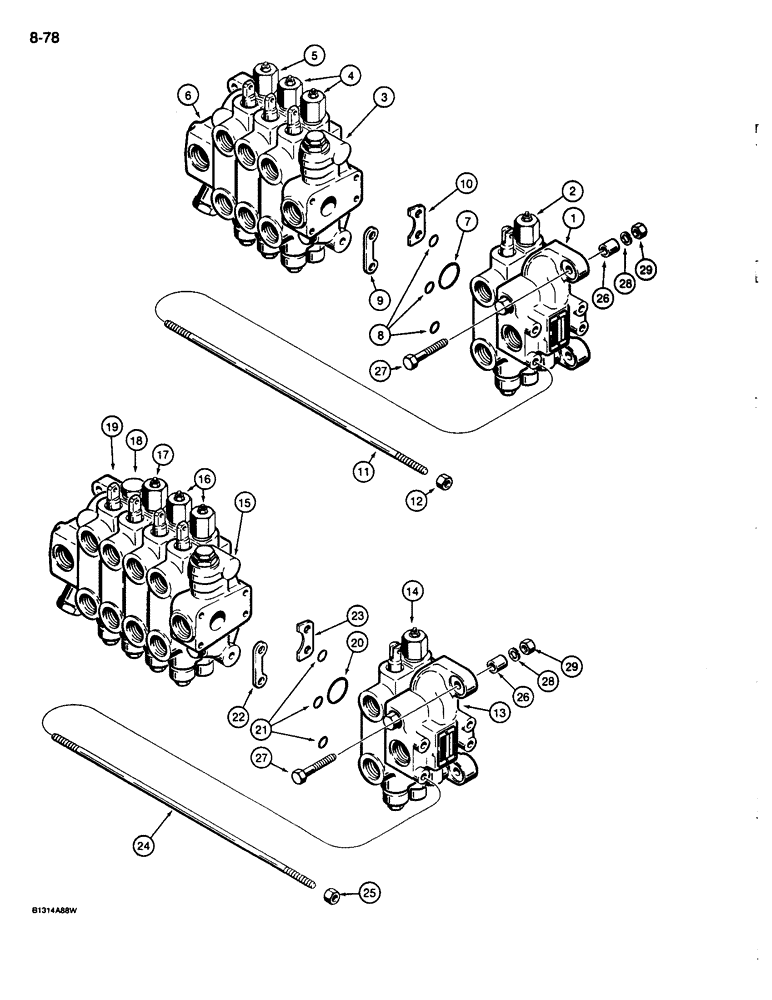

Запчасти Case 680L (8-078) - BACKHOE CONTROL VALVES, WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
G110691
VALVE
ASSEMBLY - backhoe control, 4 spool valve, if used, Includes: Ref. 1 - 12
1шт.
1343733C1
VALVE
ASSEMBLY - backhoe control, 4 spool valve, if used, Includes: Ref. 1 - 12
1шт.
1
G33102
MANIFOLD
SECTION ASSEMBLY - inlet, parts list Figure 8-080
1шт.
2
G110586
VALVE
SECTION ASSEMBLY - swing, parts list Figure 8-090
1шт.
3
G109786
HYD VALVE SECTION
SECTION ASSEMBLY - mid-inlet, parts list Figure 8-088
1шт.
4
G110585
VALVE
SECTION ASSEMBLY - dipper and bucket, parts list Figure 8-082
2шт.
5
G110587
VALVE
SECTION ASSEMBLY - boom, with 2050 psi relief valve, G110691 valve, parts list Figures 8-084 and 8-086
1шт.
5
1346024C1
VALVE
SECTION ASSEMBLY - boom, with 4800 psi relief valve, 1343733C1 valve, parts list Figures 8-084 and 8-086
1шт.
6
G33108
MANIFOLD
SECTION ASSEMBLY - outlet, parts list Figure 8-080
1шт.
7
238-6127
O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro
Section ports -127, 90 Duro, 1.424" ID x .103" Thk
6шт.
Part of seal kit P/N 1346107C1.
1шт.
8
238-6119
O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro
Section ports, small -119, 90 Duro, .924" ID x .103" Thk
18шт.
Part of seal kit P/N 1346107C1.
1шт.
9
G107251
SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk
Section, Port side of control valve 0.051mm Thk
6шт.
10
G33965
SHIM,22.86mm OD x 0.06mm Thk
Section, Non-port side of control valve 0.051mm Thk
6шт.
11
G34675
TIE-ROD
STUD - tie, 3/8"-16 NC x 15-3/4", valve sections
4шт.
12
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
8шт.
G110506
VALVE
ASSEMBLY - backhoe control, 5 spool valve, if used, Includes: Ref. 13 - 25, with extendable dipper
1шт.
1343734C1
VALVE
ASSEMBLY - backhoe control, 5 spool valve, if used, Includes: Ref. 13 - 25, with extendable dipper
1шт.
13
G33102
MANIFOLD
SECTION ASSEMBLY - inlet, parts list Figure 8-080, with extendable dipper
1шт.
14
G110586
VALVE
SECTION ASSEMBLY - swing, parts list Figure 8-090, with extendable dipper
1шт.
15
G109786
HYD VALVE SECTION
SECTION ASSEMBLY - mid-inlet, parts list Figure 8-088, with extendable dipper
1шт.
16
G110585
VALVE
SECTION ASSEMBLY - dipper and bucket, parts list Figure 8-082, with extendable dipper
2шт.
17
G110587
VALVE
SECTION ASSEMBLY - boom, with 2050 psi relief valve, G110506 valve, parts list Figures 8-084 and 8-086, with extendable dipper
1шт.
17
1346024C1
VALVE
SECTION ASSEMBLY - boom, with 4800 psi relief valve, 1343734C1 valve, parts list Figures 8-084 and 8-086, with extendable dipper
1шт.
18
G110588
VALVE
SECTION ASSEMBLY - extendable dipper, parts list Figure 8-094
1шт.
19
G33108
MANIFOLD
SECTION ASSEMBLY - outlet, parts list Figure 8-080, with extendable dipper
1шт.
20
238-6127
O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro
Section ports, with extendable dipper -127, 90 Duro, 1.424" ID x .103" Thk
7шт.
Part of seal kit P/N 1346107C1.
1шт.
21
238-6119
O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro
Section ports, small, with extendable dipper -119, 90 Duro, .924" ID x .103" Thk
21шт.
Part of seal kit P/N 1346107C1.
1шт.
22
G107251
SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk
Section, Port side of control valve, with extendable dipper 0.051mm Thk
7шт.
23
G33965
SHIM,22.86mm OD x 0.06mm Thk
Section, Non-port side of control valve, with extendable dipper 0.051mm Thk
7шт.
24
G33124
BOLT
STUD - tie, 3/8"-16 NC x 17-3/4", valve sections, with extendable dipper
4шт.
25
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , w/ extendable dipper 3/8"-16, G5
8шт.
26
L55306
SPACER
- valve mounting, hardware
3шт.
27
113-425
BOLT,Hex, 1/2" - 13 x 3", Gr 5
Mounting hardware Hex, 1/2"-13 x 3", G5
3шт.
28
192-23
LOCK WASHER,1/2"
WASHER, LOCK, , Mounting hardware 1/2"
3шт.
29
129-105
NUT,Hex, 1/2" - 13, Gr 5
Mounting hardware 1/2"-13, G5
3шт.
1346107C1
SEAL KIT
KIT - seal, Includes: Ref. 7, 8, 20, 21 and O-rings in inlet and outlet sections, plus additional O-rings not required in this application
1шт.
