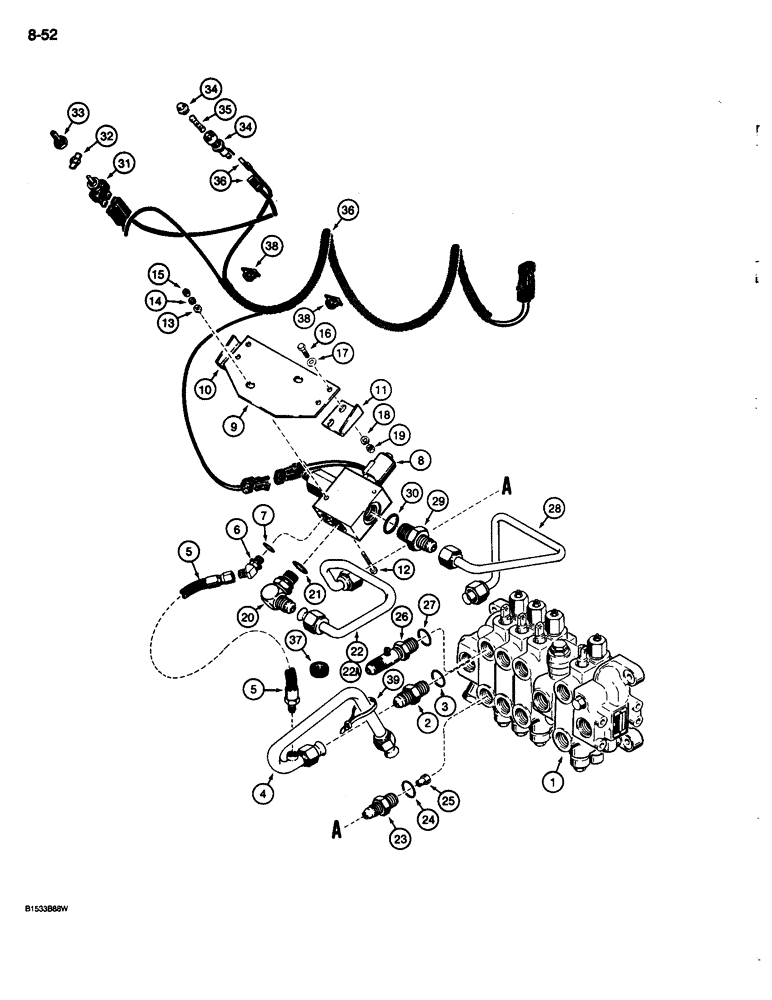

Запчасти Case 680L (8-052) - BACKHOE BOOM LOCK HYDRAULIC AND ELECTRICAL CIRCUIT, CHASSIS MOUNTED BOOM LOCK VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly, components, and mounting hardware see Figure 8-078

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, backhoe valve return port, Incl. Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

D143887

TUBE ASSY.

TUBE - backhoe control valve return, used on models without extendable dipper

1шт.

4

D143889

TUBE ASSY.

TUBE - backhoe control valve return, used on models with extendable dipper

1шт.

5

D143085

HOSE ASSY.

HOSE - 400 mm long, Serial Range: valve-return

1шт.

6

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, Incl. Ref 7

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

8

D144935

VALVE

ASSEMBLY - solenoid, backhoe boom lock, no longer available for service

1шт.

If your machine is equipped with the chassis mounted boom lock setup, above, order P/N D104633 Boom Lock Kit to update your machine. See Fig. 8-56 and 8-58 for service parts.

1шт.

9

D143878

PLATE

- boom lock valve mounting

1шт.

10

D143877

BRACKET - right-hand, valve mounting plate

1шт.

11

D143876

BRACKET - left-hand, valve mounting plate

1шт.

12

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

13

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

20

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 21

1шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

22

D143883

TUBE ASSY.

TUBE - boom lock valve to backhoe control valve boom section lower port, used on models without extendable dipper

1шт.

22a

D143885

TUBE ASSY.

TUBE - boom lock valve to backhoe control valve boom section lower port, used on models with extendable dipper

1шт.

23

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 24

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

25

L108371

ADAPTER

RESTRICTOR - boom drop

1шт.

26

L106794

TEE

- special, attaches to hose from lower port of flow control valve, Includes: Ref. 27

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Tee

1шт.

28

D143880

TUBE ASSY.

TUBE - boom lock to cylinder hose

1шт.

29

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 30

1шт.

30

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

31

D67251

SWITCH

- toggle, boom lock

1шт.

32

L105735

PLATE ASSY.

PLATE - trim

1шт.

33

L101998

BOOT

- toggle switch

1шт.

34

A22874

HOLDER

RETAINER - fuse, at backhoe control tower

1шт.

35

223-38

FUSE,3 Amp, Type 3AG

- 3 ampere, boom lock

1шт.

36

D139531

HARNESS

- boom lock

1шт.

37

D139845

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

- harness

1шт.

38

L100659

CLIP

- harness

2шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.
