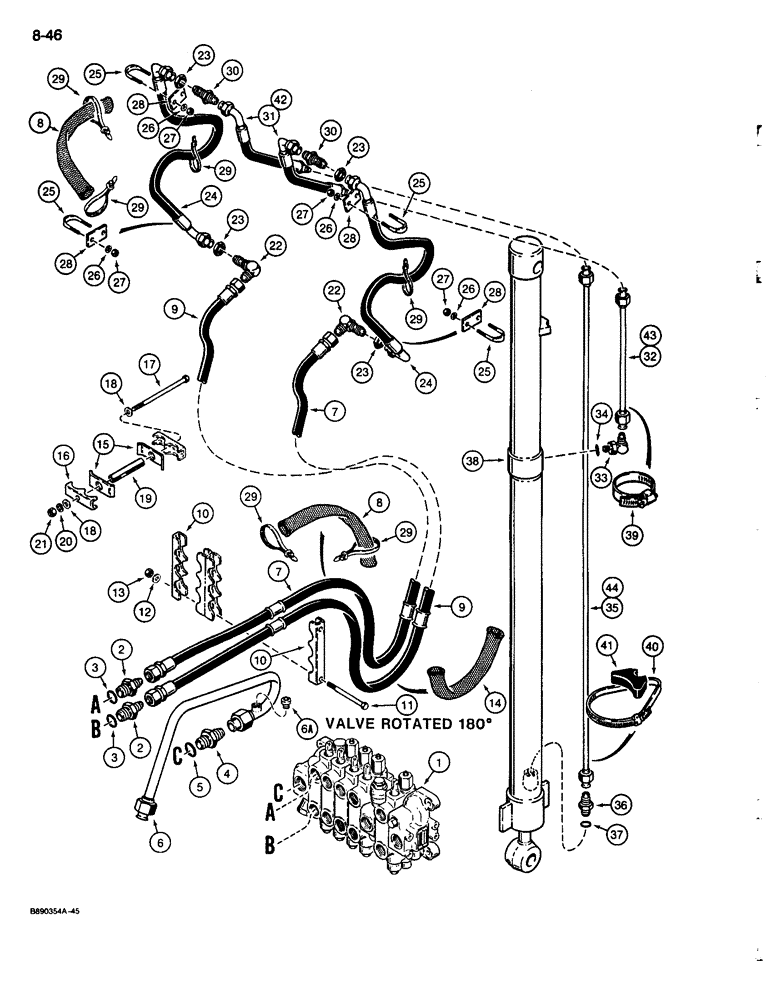

Запчасти Case 680L (8-046) - BACKHOE EXTENDABLE DIPPER CYLINDER HYDRAULIC CIRCUIT, LOW PROFILE MODELS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, extendable dipper models, for correct assembly and components and mounting hardware see Figure 8-078

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, 1-1/16 NF flare x 1-1/16 NF, cylinder hoses at backhoe control valve, Incl. Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

4

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, backhoe return tube at control valve, Incl. Ref. 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

6

D143889

TUBE ASSY.

TUBE - backhoe return, extendable dipper models, Includes: Ref. 6A

1шт.

6a

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2 PT

1шт.

7

D148820

HOSE ASSY.

HOSE - 131-1/8" (3330 mm) long, backhoe control valve extendable dipper upper port to closed end of extendable dipper cylinder (replaces D144247 hose)

1шт.

8

D144243

SLEEVE

- hose protection, hoses at swing tower clamps and extendahoe hose to bucket hose at, Serial Range: boom-dipper

2шт.

9

D148821

HOSE ASSY.

HOSE - 3292 mm long, backhoe valve extendable dipper lower port to rod end of extendable dipper cylinder (replaces D144248 hose)

1шт.

10

D140847

CLAMP

- hose, at swing tower

2шт.

11

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

- hex, 1/2 NC x 6 inch

2шт.

12

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Replaces lock washer 1/2", SAE

2шт.

13

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, replaces lock washer and hex nut

2шт.

14

D144244

SLEEVE

- hose protection, extendahoe hose at lower boom

1шт.

15

D141293

CLAMP

- hose, Serial Range: mounts-dipper

2шт.

16

D137599

CLAMP

- hose

1шт.

17

413-8120

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

- hex head, 1/2"-13 NC x 7-1/2", plated

1шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

19

D144419

SPACER

- hose clamp

1шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

1шт.

21

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, replaces hex nut

1шт.

22

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

23

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, bulkhead, 1-1/16 NF

4шт.

24

D144282

HOSE ASSY.

HOSE - 55-1/8" (1400 mm) long, to extendable dipper cylinder from upper boom end to boom end of dipper

2шт.

25

D144937

BOLT

U-BOLT - hose, at upper boom end and boom end of dipper

4шт.

26

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

8шт.

27

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

28

D144201

PLATE

SPACER - plate, Serial Range: hose-bracket

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

30

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER - FIT STL BULKHD .75MJ .75MJ

2шт.

31

D144286

HOSE ASSY.

HOSE - 12-7/16" (315 mm) long, to extendable dipper cylinder tubes, used with Ref. 32 and 35 tubes

2шт.

32

L103656

TUBE ASSY.,0.625" OD x 17.8" L

TUBE - 17-13/16 inch long, from hose to extendable dipper cylinder, closed end, used with Ref. 31 hose

1шт.

33

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

L103658

TUBE ASSY.,0.625" OD x 69.8" L

TUBE - 69-13/16 inch long, from hose to extendable dipper cylinder, rod end, used with Ref. 31 hose

1шт.

36

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, 7/8 NF flare x 7/8 NF, Includes: Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

REF

INSTRUCTION

CYLINDER ASSEMBLY - extendable dipper, for correct assembly and components, see Figure 8-130

1шт.

39

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - L103656 tube, if used

1шт.

40

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - L103658 tube

1-2шт.

41

D38648

BLOCK

SPACER - rubber

1-2шт.

42

D149836

HOSE ASSY.

HOSE - 600 mm long, to extendable dipper cylinder tubes, used with Ref. 43 and 44 tubes

2шт.

43

D149854

TUBE ASSY.

TUBE - 5-29/32 inch long, from hose to extendable dipper cylinder, closed end, used with Ref. 42 hose

1шт.

44

D149852

TUBE ASSY.

TUBE - 57-3/8 inch long, from hose to extendable dipper cylinder, rod end, used with Ref. 42 hose

1шт.
