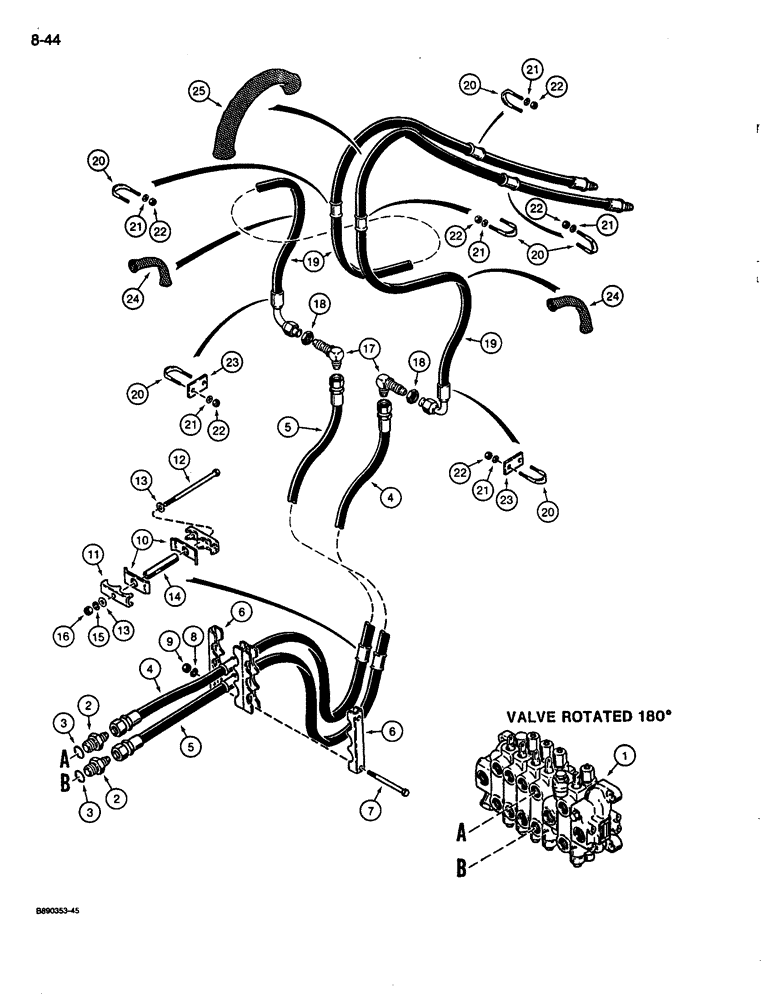

Запчасти Case 680L (8-044) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, USED ON HIGH PROFILE MODELS WITH EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, extendable dipper models, for correct assembly and components and mounting hardware see Figure 8-078

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, 1-1/16 NF flare x 1-1/16 NF, cylinder hoses at backhoe control valve, Incl. Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

4

D150219

HOSE

- 3525 mm long, backhoe control valve bucket upper port to rod end of bucket cylinder (replaces D144245 hose)

1шт.

5

D150220

HOSE

- 3485 mm long, backhoe control valve bucket lower port to closed end of bucket cylinder (replaces D144246 hose)

1шт.

6

D140847

CLAMP

- hose, at swing tower

2шт.

7

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

D141293

CLAMP

- hose, Serial Range: mounts-dipper

2шт.

11

D137599

CLAMP

- hose

1шт.

12

113-2420

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

- hex head, 1/2"-13 NC x 7-1/2", plated

1шт.

13

195-106

WASHER,1/2"

- flat, , plated 1/2"

2шт.

14

D141386

SPACER

- hose clamp

1шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

17

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

18

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, bulkhead, 1-1/16 NF

2шт.

19

D144281

HOSE ASSY.

HOSE - 155-5/16" (3944 mm) long, from upper boom end to tubes at bucket cylinder

2шт.

See Figure 8-050 for high profile to low profile plumbing upgrade kit.

1шт.

20

L104253

U-BOLT

- hose, at upper boom end and boom end of dipper

6шт.

21

195-521

WASHER,5/16", SAE

- flat, 5/16 inch

12шт.

22

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

12шт.

23

D144201

PLATE

SPACER - plate, Serial Range: hose-bracket

1шт.

24

D144958

SLEEVE

- hose protection, extendable dipper and bucket cylinder hoses at upper boom

2шт.

See Figure 8-050 for high profile to low profile plumbing upgrade kit.

1шт.

25

D144375

SLEEVE

- hose protection, bucket cylinder hoses at dipper

1шт.
