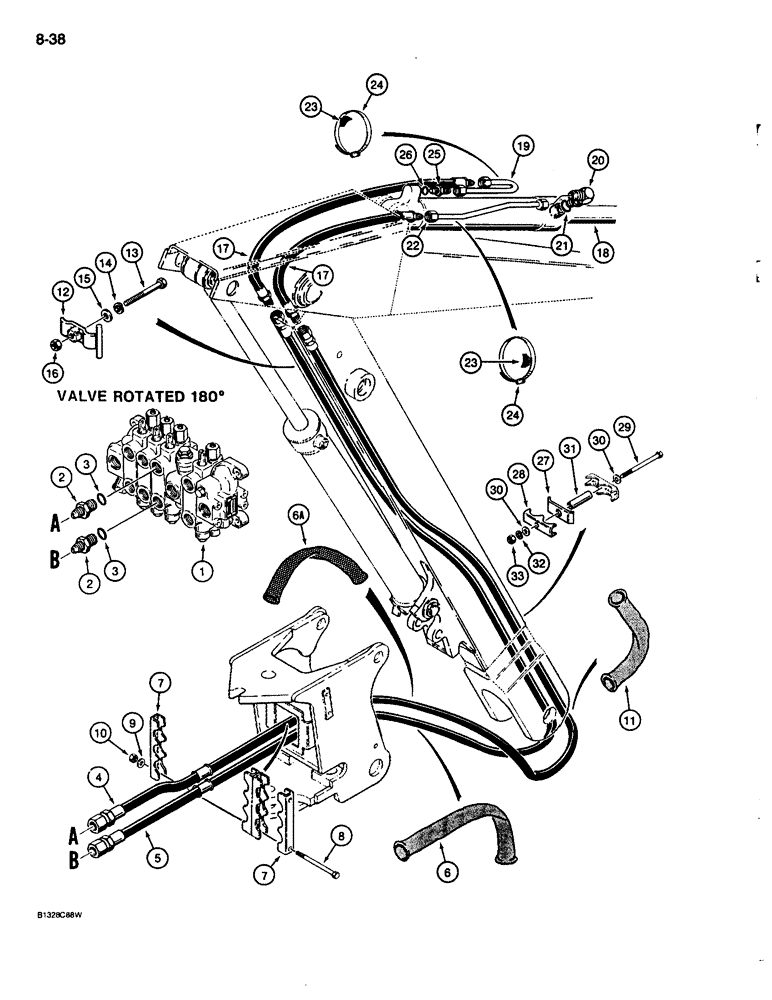

Запчасти Case 680L (8-038) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly, componentrs and mounting hardware, see Figure 8-078

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

4

D150221

HOSE ASSY.

HOSE - 3891 mm long, backhoe control valve upper port to bucket cylinder rod end tube, Replaces D144311 hose

1шт.

5

D150222

HOSE ASSY.

HOSE - 3825 mm long, backhoe control valve lower port to bucket cylinder closed end tube, Replaces D144312 hose

1шт.

6

D149071

SLEEVE

- hose protection, lower bucket hose

1шт.

6a

D144243

SLEEVE

- hose protection, upper bucket hose to upper dipper hose

1шт.

7

D140847

CLAMP

- hose, at swing tower

2шт.

8

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

- hex, 1/2 NC x 6 inch

2шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Replaces lock washer 1/2", SAE

2шт.

10

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, replaces lock washer and hex nut

2шт.

11

D144244

SLEEVE

- hose protection

2шт.

12

L100383

CLAMP

- hose

1шт.

13

113-256

BOLT

BOLT - hex, 3/8 NC x 5-1/2 inch, special thread length

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

195-104

WASHER,3/8"

- flat, 3/8 inch

1шт.

16

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

17

D149312

HOSE

- 1245 mm long, tube to bucket cylinder, see Figure 8-044 or 8-050 for bucket cylinder hose used on models with extendable dipper, Replaces L101167 hose

2шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY - bucket, for correct assembly and components, see Figure 8-126 or 8-128

1шт.

19

L101013

TUBE,0.75" OD x 15.2, 3" L

- bucket cylinder, closed end

1шт.

This item used on the cylinder regardless if it's an extendable dipper or standard

1шт.

20

L114091

FITTING

ELBOW - 90 degree, special, Includes: Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

22

L77131

TUBE,0.75" OD x 19.92, 1.75" L

- bucket cylinder, rod end

1шт.

This item used on the cylinder regardless if it's an extendable dipper or standard

1шт.

23

D38648

BLOCK

SPACER - tube

2шт.

24

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to cylinder

2шт.

25

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

27

D141293

CLAMP

- hose

1шт.

28

D137599

CLAMP

- hose

1шт.

29

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

1шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

31

D144418

SPACER

- hose clamp

1шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Not required with self locking nut 1/2"

1шт.

33

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, replaces hex nut

1шт.
