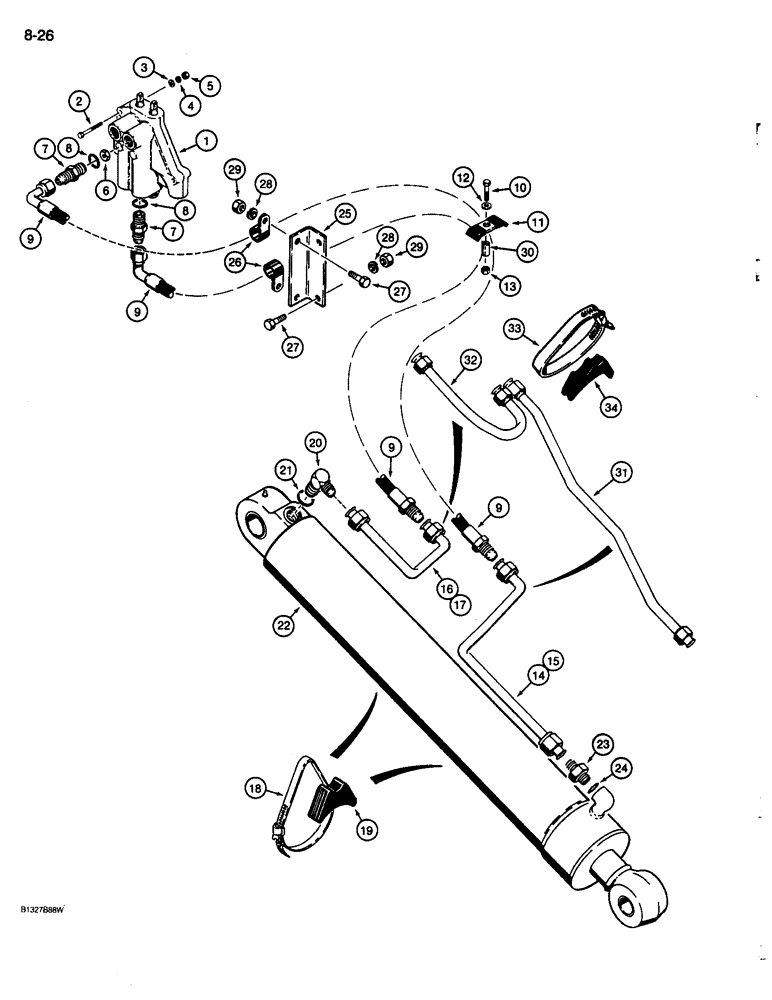

Запчасти Case 680L (8-026) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D124856

VALVE

ASSEMBLY - stabilizer control, parts list Figure 8-076

1шт.

2

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

3

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

D61933

RESTRICTOR

- upper control valve port

2шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 8

4шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

9

D141771

HOSE ASSY.

HOSE - 43-5/16" (1100 mm) long, stabilizer control valve upper ports to stabilizer cylinder rod ends and stabilizer control valve lower ports to stabilizer cylinder closed ends

4шт.

10

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

11

D40236

CLAMP

- hose, mounts to chassis frame

2шт.

12

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

13

131-217

LOCK NUT

NUT - hex, self-locking, 3/8"-16 NC, plated, grade 8

2шт.

14

D142088

TUBE ASSY.

TUBE - stabilizer cylinder rod end, right-hand, if used

1шт.

15

D142090

TUBE ASSY.

TUBE - stabilizer cylinder rod end, left-hand, if used

1шт.

16

D136926

TUBE ASSY.

TUBE - stabilizer cylinder closed end, right-hand, if used

1шт.

17

D136924

TUBE ASSY.

TUBE - stabilizer cylinder closed end, left-hand, if used

1шт.

18

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to cylinder, used with items 14 through 17 tubes

4шт.

19

D38648

BLOCK

SPACER - tube clamp, used with items 14 through 17 tubes

4шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

22

REF

INSTRUCTION

CYLINDER ASSEMBLY - stabilizer, for correct assembly and components, see Figure 8-112 or 8-114

2шт.

23

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 24

2шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

25

L55308

BRACKET

- hose clamp, attaches to chassis backhoe valve mounting plate

2шт.

26

S88820

CLAMP

- hose

4шт.

27

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

28

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

29

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

30

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

- hose clamp

2шт.

31

D144465

TUBE ASSY.

TUBE - stabilizer cylinder rod end, if used

2шт.

32

D144467

TUBE ASSY.

TUBE - stabilizer cylinder closed end, if used

2шт.

33

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - tube, used with items 31 and 32 tubes

2шт.

34

R24703

SUPPORT

SPACER - tube clamp, used with items 31 and 32 tubes

2шт.
