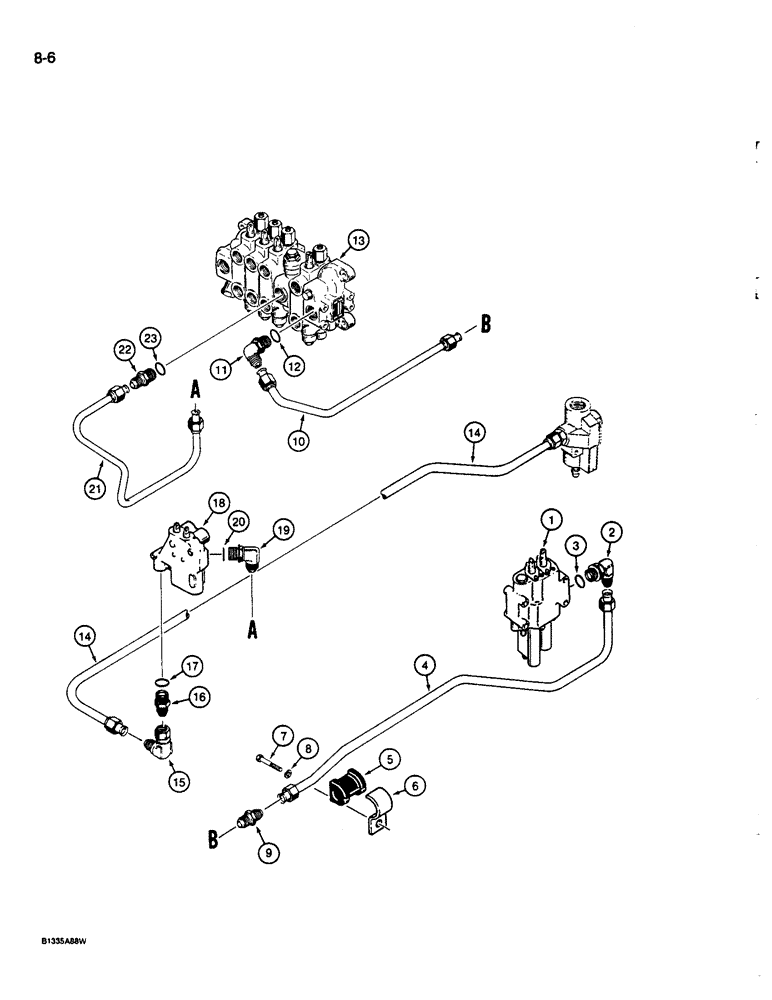

Запчасти Case 680L (8-006) - EQUIPMENT HYDRAULIC SYSTEM, BACKHOE SUPPLY FROM LOADER CONTROL VALVE TO BACKHOE CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see Figure 8-064 or 8-066

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

4

D141359

TUBE ASSY.

TUBE - from loader control valve to inlet backhoe supply

1шт.

5

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR - tube clamp

1шт.

6

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

- tube

1шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex head, 3/8"-16 NC x 1-3/4", plated

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

218-436

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

ADAPTER - straight, tube union

1шт.

10

D144790

TUBE

- backhoe supply

1шт.

11

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, backhoe control valve inlet, Includes: Ref. 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see parts list Figure 8-078

1шт.

14

D141383

TUBE ASSY.

TUBE - backhoe relief valve to stabilizer control valve inlet, supply

1шт.

15

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

16

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

18

D124856

VALVE

ASSEMBLY - stabilizer control, parts list Figure 8-076

1шт.

19

L114091

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

21

D139248

TUBE ASSY.

TUBE - stabilizer valve to backhoe mid-inlet section, for clamping hardware with boom tube, see Figure 8-032, Ref. 5 thru 9

1шт.

22

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 23

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.
