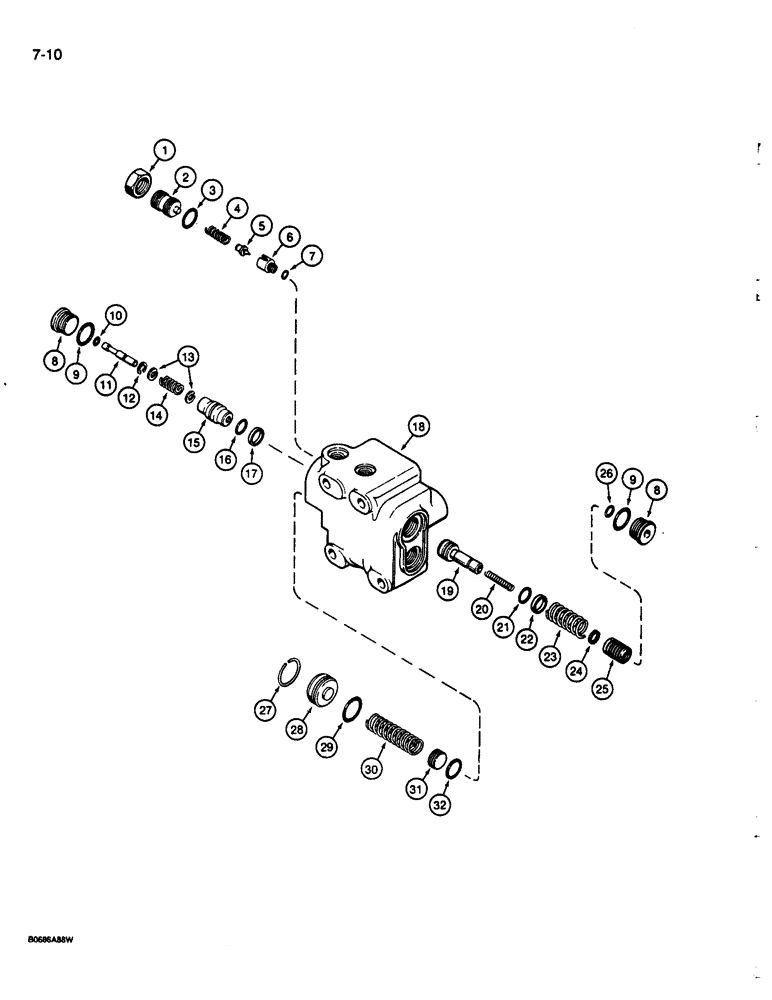

Запчасти Case 680L (7-10) - BRAKE VALVE (07) - BRAKES

G107891

VALVE

ASSEMBLY - brake, Includes: Ref. 1 - 32

1шт.

1

218-1278

BHD LOCK NUT,Blkhd, 3/4"-16

NUT - hex lock, 3/4-16 inch thread

1шт.

2

G104393

PLUG

- locking relief

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

4

G104395

SPRING

- pilot relief

1шт.

5

G104392

SPOOL

POPPET - relief valve

1шт.

6

G104394

PLUG

SEAT - poppet

1шт.

7

G103122

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

poppet seat 2-1, .239" ID x .064" Thk

1шт.

8

86625138

PLUG,7/18" - 14

Assy Hex Soc, 7/8"-14 ORB

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

10

363226R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

- pin

1шт.

11

G105032

PISTON PIN

PIN - equalizer

1шт.

12

A59947

SNAP RING,0.453", Int, #45

Ring, Snap, , piston 0.453", Int, #45

1шт.

13

G100941

WASHER

RING - spring retaining

2шт.

14

G105033

SPRING

- pressure

1шт.

15

G105031

PISTON

EQUALIZER - piston pressure

1шт.

16

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- equalizer

1шт.

17

G100797

RING

- backup

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - brake valve

1шт.

19

G105037

PISTON

- pressure release

1шт.

20

G100794

SPRING

- piston retaining

1шт.

21

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- piston

1шт.

22

G100797

RING

- backup

1шт.

23

G105036

SPRING

- pressure

1шт.

24

G102104

WASHER

- orifice

1шт.

25

G105038

SPOOL

- pressure release

1шт.

26

G100792

RING

- retaining

1шт.

27

G100769

RING

- retaining

1шт.

28

G107890

RETAINER

- spring

1шт.

29

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- retainer

1шт.

30

G110590

SPRING

- valve relief

1шт.

31

9625178

PLUG,9/16" - 18 ORB

Assy Hex Soc, 9/16"-18 ORB

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Plug

1шт.
